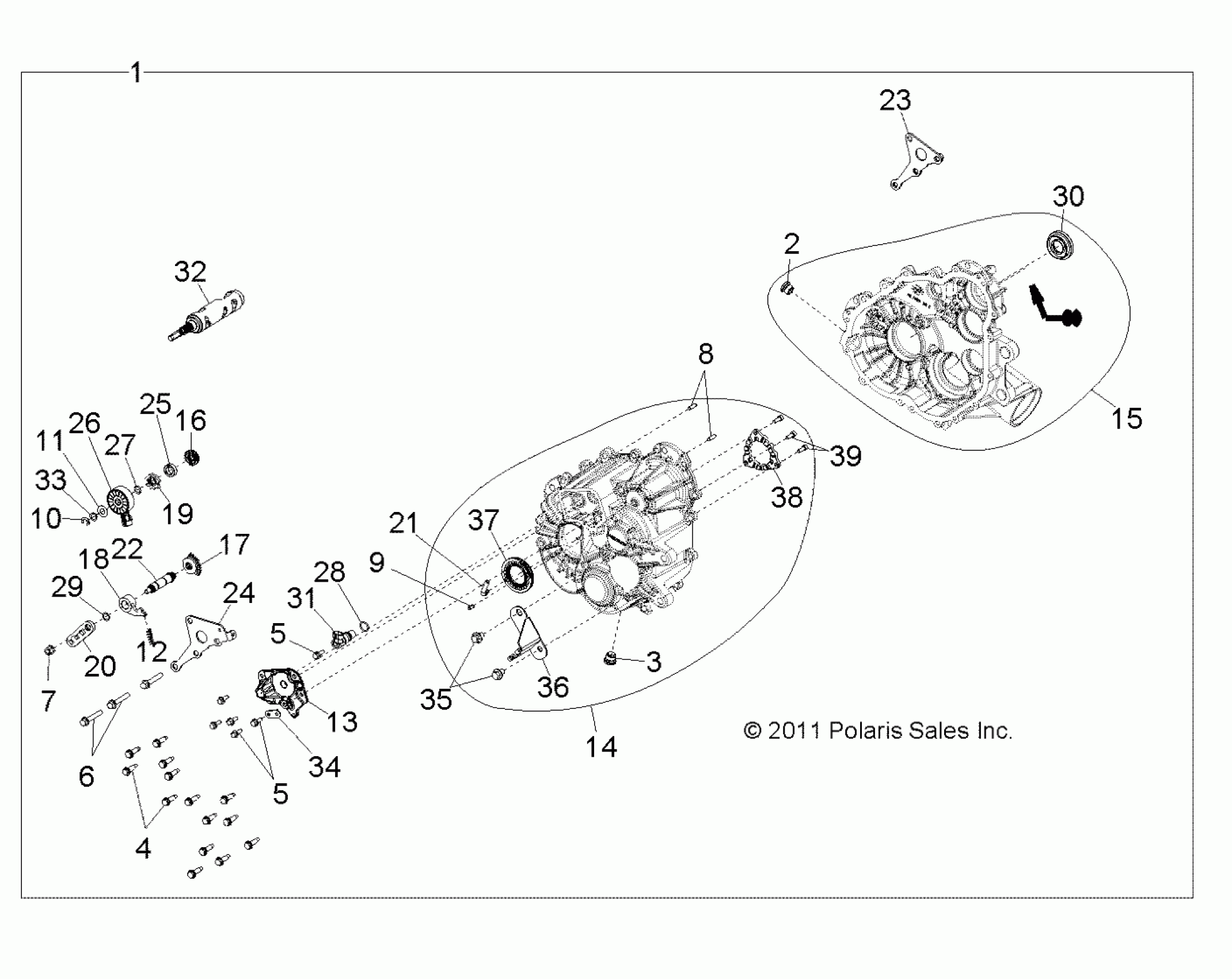

Polaris RZR XP 900 EFI - R12JT87AB/AD/AS/AW/9EAW DRIVE TRAIN, MAIN GEARCASE - R12JT87AB/AD/AS/AW/9EAW (49RGRTRANS1332995) Diagram

#

Description
Price

1

Asm., Gearcase [Incl. All, less 35,36]

1332995

$3,799.99

2

PLUG, M18 X 1.5

3234755

$27.78

3

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

5

SCREW

3235206

$7.14

5

SCREW

3235206

$7.14

6

SCREW

3235207

$10.32

7

NUT

3235210

$7.94

8

PIN, DOWEL 6 X 20

3234330

$7.14

9

PIN, SPRING, SLOTTED

7043746

$8.08

10

RING, RETAINING

3233834

$10.32

11

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

12

SPRING, COMPRESSION, DETENT

3234578

$13.75

13

SUBASM., SECTOR COVER W/PINS

3234188

$113.32

14

Subasm., Case, RH

3235391

$499.99

15

Subasm., Case, LH

3235333

$869.99

16

GEAR, 16T

3233839

$36.41

17

GEAR-SECTOR,31T

3233832

$36.41

18

Pawl, Detent

3233829

$36.41

19

Star, Detent

3233909

$28.32

20

BELLCRANK

3235227

$28.32

21

TUBE, VENT

3234230

$10.51

22

SHAFT-SHIFT(352973)

3235238

$42.74

23

BRACKET, MOUNT, REAR

3235239

$40.46

24

BRACKET, MOUNT, REAR

3235351

$48.56

25

SPACER

3235243

$9.52

26

PIN, GEAR POSITION SWITCH

7661999

$117.37

27

O-RING

3233076

$6.46

28

O-RING

3234302

$7.27

29

O-RING

3233869

$5.65

30

SEAL

3234851

$42.74

31

SENSOR, SPEED

4012167

$109.27

32

Drum, Shift

3235220

$115.08

33

WASHER, SPRING

3235327

$9.52

34

BRACKET, MOUNT

3235350

$8.89

35

Bolt

7519353

$4.76

36

Bracket, Shift Cable

1018419

$18.10

37

SEAL, TRIPLE LIP

3235052

$32.37

38

Plate, Park, 12 Face

3235221

Unavailable

39

SCREW

3235332

$3.97
