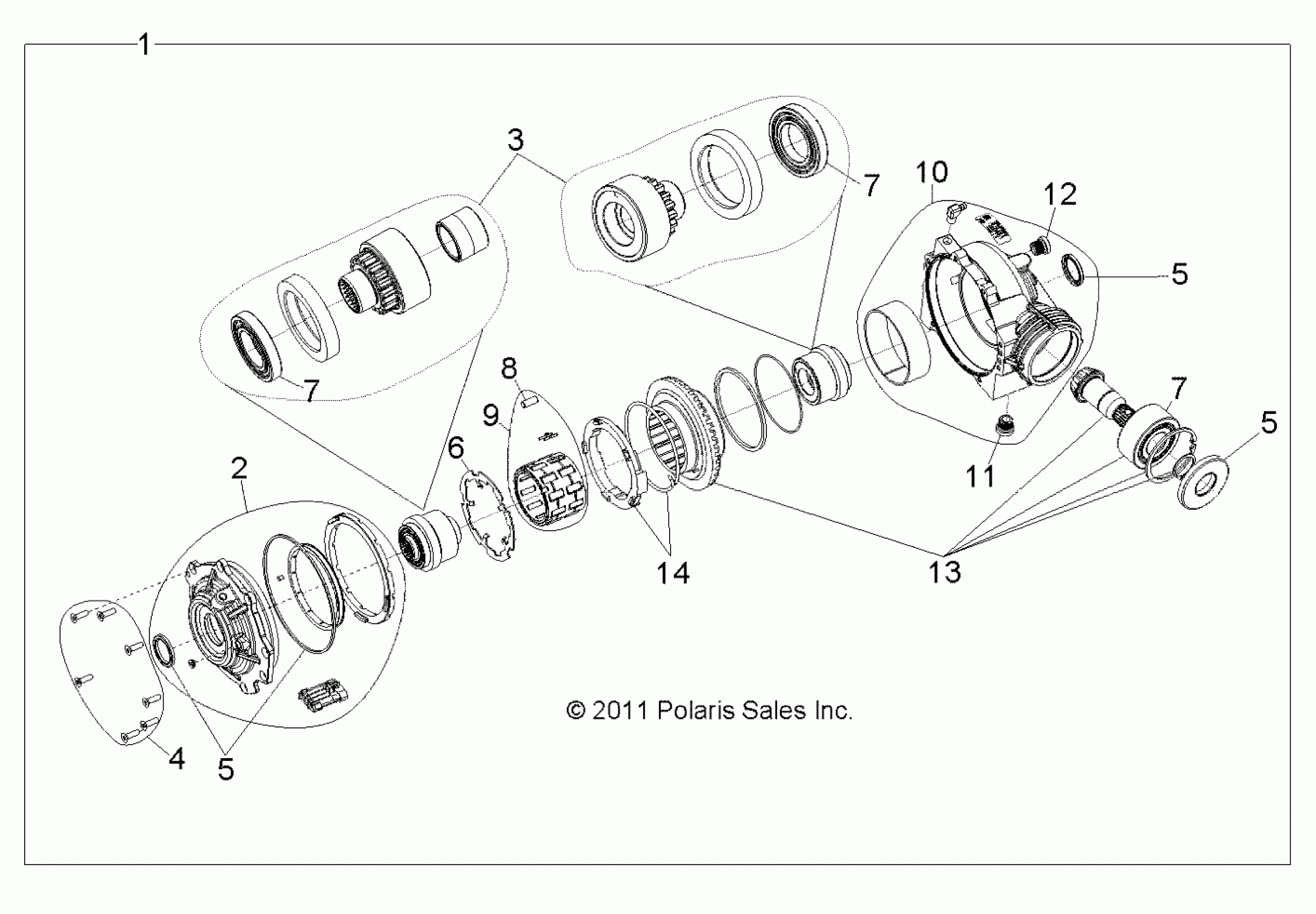

Polaris RZR XP 900 EFI - R12JT87AB/AD/AS/AW/9EAW DRIVE TRAIN, FRONT GEARCASE INTERNALS - R12JT87AB/AD/AS/AW/9EAW (49RGRGEARCASE1332923) Diagram

ASM., FRONT GEARCASE {INCL. 2-13]

1332923

$2,099.99

ASM., COVER OUTPUT [INCL. O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASM., BACKLASH SPACER, 4WD COIL, GROMMET, HEAT SHRINK TUBING]

3235168

$607.99

KIT, HUB ASM. [INCL. BUSHING, HUB SUB. ASM., NYLON SPACER]

3235169

$493.99

KIT, FASTENER [INCL. ALL FASTENERS]

3235170

$19.84

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235171

$93.08

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235171

$93.08

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235171

$93.08

PLATE, ARMATURE

3234407

$113.32

BEARING, PINION [INCL. ALL BEARINGS]

3235174

$94.99

BEARING, PINION [INCL. ALL BEARINGS]

3235174

$94.99

BEARING, PINION [INCL. ALL BEARINGS]

3235174

$94.99

KIT-ROLLER [INCL. COMPLETE SET OF ROLLER

3234393

$5.65

ASM., BILLET ROLL CAGE [INCL. ROLL CAGE, SPRING WIRE FOR, H-CLIP]

3235262

$574.75

KIT, GEARCASE ASM. [INCL. HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG, DRAIN PLUG]

3235172

Unavailable

KIT-PLUG,DRAIN

2203738

$42.74

KIT-PLUG,FILL

2203739

$44.51

KIT, RING AND PINION [INCL. BEARING, INTERNAL RING, RING GEAR, PINION GEAR]

3235173

$789.99

SPRING, TORSION AND RETAINER

3234908

$114.99
