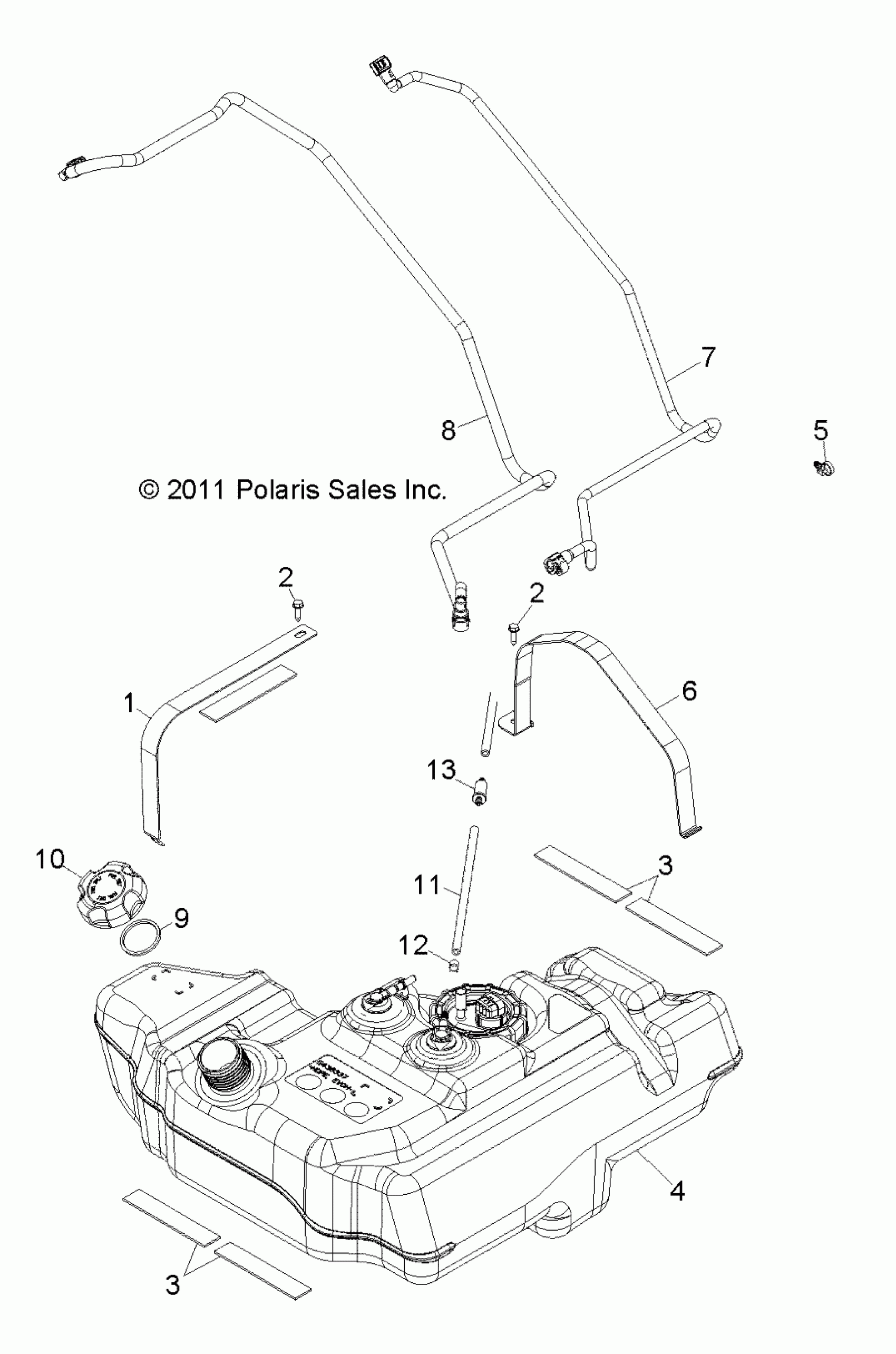

Polaris RZR XP 900 EFI - R12JT87AB/AD/AS/AW/9EAW BODY, FUEL TANK - R12JT87AB/AD/AS/AW/9EAW (49RGRFUEL12RZRXP900) Diagram

BRACKET, TANK, REAR

5253844

$43.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

PAD-BATTERY

5810290

$7.27

PAD-BATTERY

5810290

$7.27

ASM., FUEL TANK [INCL. PUMP]

2521202

$985.59

KIT, FUEL PUMP [INCL. PUMP, GASKET, NUT, ALCOHOL WIPE, INSTRUCTIONS]

2204502

$464.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

BRACKET, TANK, FRONT

5253884

$65.99

ASM., FUEL LINE, RAIL TO TANK

2521123

$83.99

ASM., LINE, FUEL

2521206

Unavailable

GASKET

5812123

$5.65

Cap, Gas Tank [Incl. 9]

5433687

$20.22

LINE, VENT

8450126-104

$27.99

HOSE CLAMP, RED [Built 5/07/12 and Before]

7080003

$1.49

Clamp, Hose [Built 5/08/12 and After]

7080236

$1.59

FILTER, FUEL

2521177

$14.39
