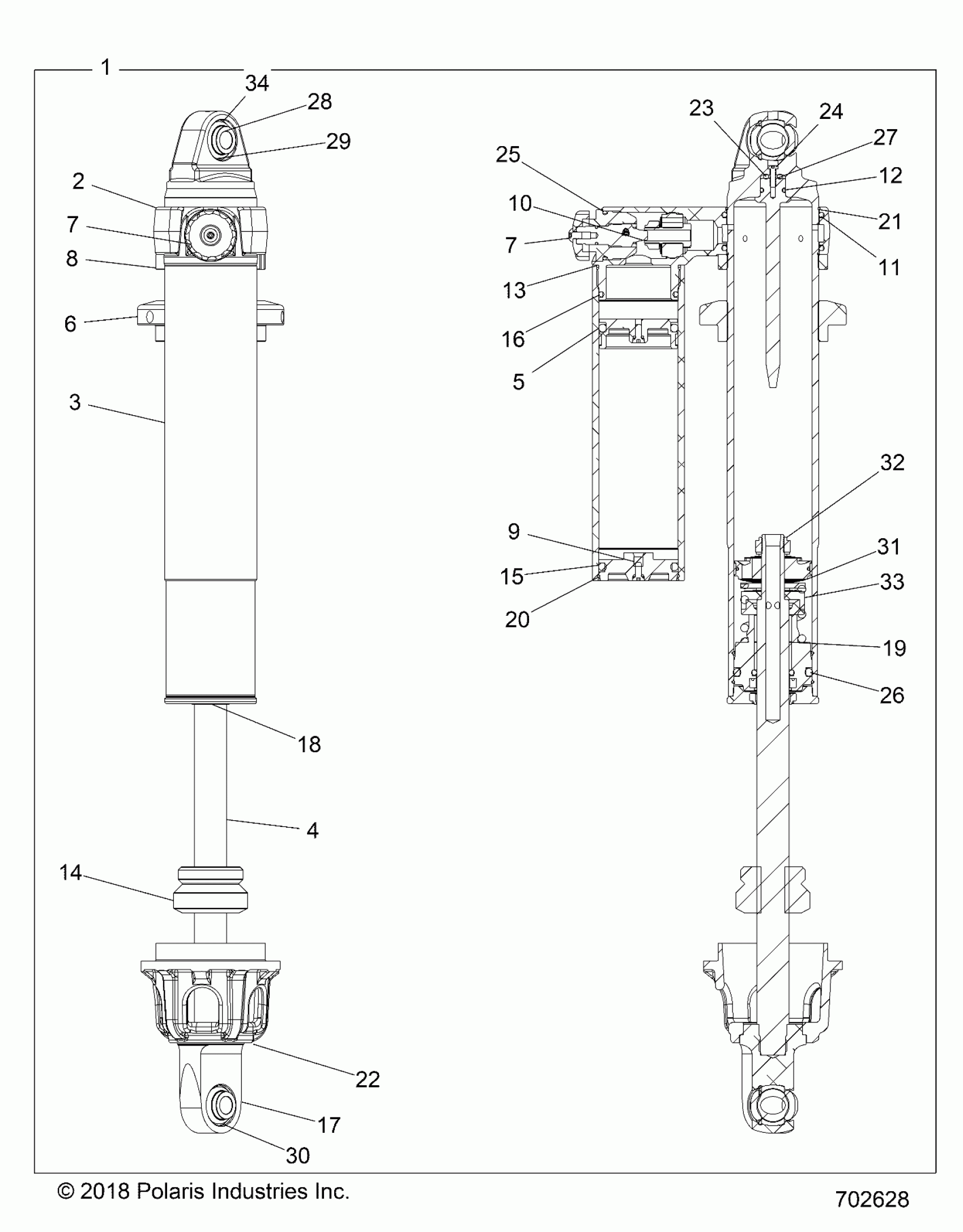

Polaris RZR XP 4 TURBO S VELOCITY (R04) - Z19VPE92AM/BM SUSPENSION, FRONT SHOCK INTERNALS - Z19VPE92AM/BM (702628) Diagram

#

Description
Price

1

SHOCK-FRONT,MP,LH [INCL ALL]

7045243

$1,399.99

1

SHOCK-FRONT,MP,RH [INCL ALL]

7045244

$1,529.99

2

2.5 BRIDGE, WER ADJUSTER

1800958

$209.99

3

2.5IN 8.5L PB RES CAN WR (HARD CLEAR)

1800837

$209.99

4

SHAFT, NEEDLE .75 THD, .625 PIN

1800959

$364.99

5

RES, PISTON 2.5IN ASM

1800752

$174.27

6

2.5IN SPRING NUT (CLEAR)

1800836

$109.99

7

ASM. SS RETENTION NUT (GOLD)

1800857

$139.99

7

ASM. SS RETENTION NUT (GOLD)

1800857

$139.99

8

2.5" JAM NUT

1801032

$80.94

9

2.5 END CAP WITH BUILT IN CHARGE PORT

1800960

$94.99

10

VALVE, CHECK ASSEMBLY

1800848

$74.99

11

O-RING 2-230

1800497

$5.65

12

O-RING 2-112

1800095

$0.82

13

O-RING 2-033

1800613

$11.32

14

1.25 BUMP STOP LG

1800593

$80.74

15

O-RING 2-327

1800508

$5.65

16

O-RING 2-225

1800500

$2.02

17

SHAFT LOOP, 1.0935 BORE, BRNG STEP, 2.930L

1800961

Unavailable

18

WIPER CAP ASM. 2.5 PRESS FIT

1800962

$49.99

19

SEAL HEAD ASM. 2.5 PRESS IN, .875 SHAFT, NEGATIVE SPRING

1800963

$89.99

20

ID RETAINING RING, 2.5"

1800847

$23.81

21

2.48 X 0.0625 WIRE RING

1800846

$8.08

22

Spring Retainer Supplied by Polaris

5633421

$76.89

23

O-RING 2-202

1800964

$2.41

24

#8-32 X .500 LOW HEAD SCREW

1800843

$4.76

25

O-RING 2-122

1800503

$1.60

26

O-RING 2-327 (VITON)

1800965

$8.99

27

NEEDLE, 1 PIECE PRESS IN

----

Unavailable

28

BEARING HCOM9T-12MM

1800880

$47.62

29

RETAINING RING FOR I. 0625 BORE

1800966

$3.22

30

O-RING 2-312 1000312

1800810

$3.63

31

PISTON ASSEMBLY

1800969

$227.52

32

NUT, FLEXLOC, THIN, 5/8-18

1800970

$48.56

33

CHECK VALVE, 2 PIECE, .875 SHAFT X .625L, .052 BLEED

1800996

$140.38

34

BODY, 2.5 CO, IMP EXT

1800957

$694.99
