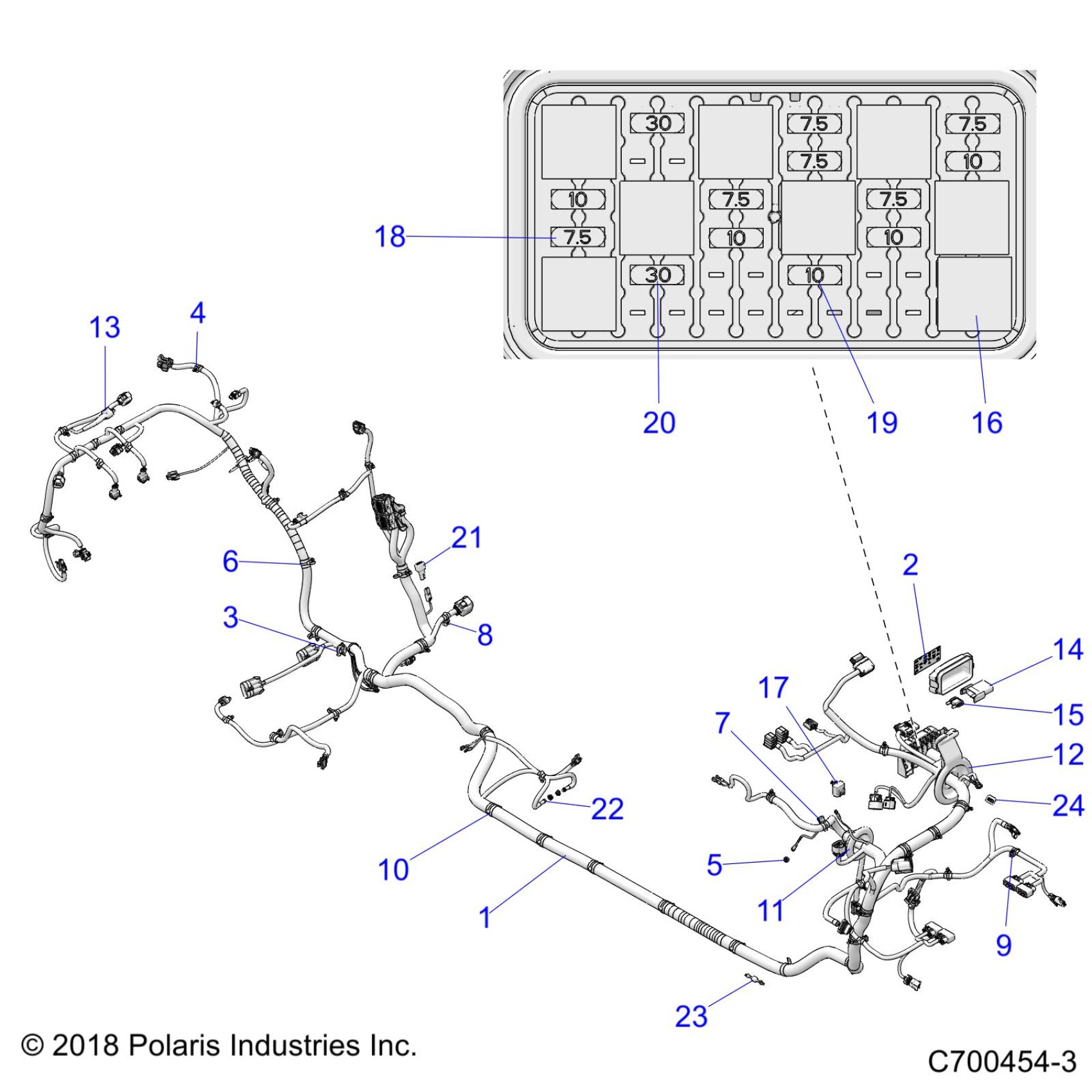

Polaris RZR XP 4 TURBO S VELOCITY (R04) - Z19VPE92AM/BM ELECTRICAL, WIRE HARNESS - Z19VPE92BM (C700454-3) Diagram

#

Description
Price

1

HARNESS-CHASSIS,RZR,T,72,MP,CA [INCL ALL]

2414872

$1,887.59

2

LABEL-FUSE BOX

7188876

Unavailable

3

CLIP-OMEGA,CABLE/15-18MM DIA

7082481

$6.39

4

CLIP-ROUTING

7082068

$7.19

5

CLIP-ROUTING,DIN BOX

7082020

$5.59

6

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

7

CLIP-EDGE,HARNESS

7081890

$10.39

8

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

9

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

10

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

11

GROMMET-65MM,BLK

5813954

$7.19

12

GROMMET-DASH FUSE CTR,RZR

5416469

$10.39

13

BOOT-TMAP

4018263

$7.99

14

HOLDER-FUSE,SEALED

4018207

$67.99

15

FUSE-MAXI,50A

4017180

$39.99

16

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

17

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

18

FUSE-7.5 MINI BLADE

4011068

Unavailable

19

FUSE-IGNITION,10 AMP

2434016

$4.79

20

FUSE-MAIN,30 AMP

2434015

$7.19

21

RESISTOR-EVAP PULLUP-1KOHM

2414716

$8.79

22

LED-PANEL MNT,12V,BLUE

2413217

$51.99

23

DIODE-6AMP,1/4,3/16 TERM

2411035

$51.99

24

DIODE-6 AMP

2410000

$35.99
