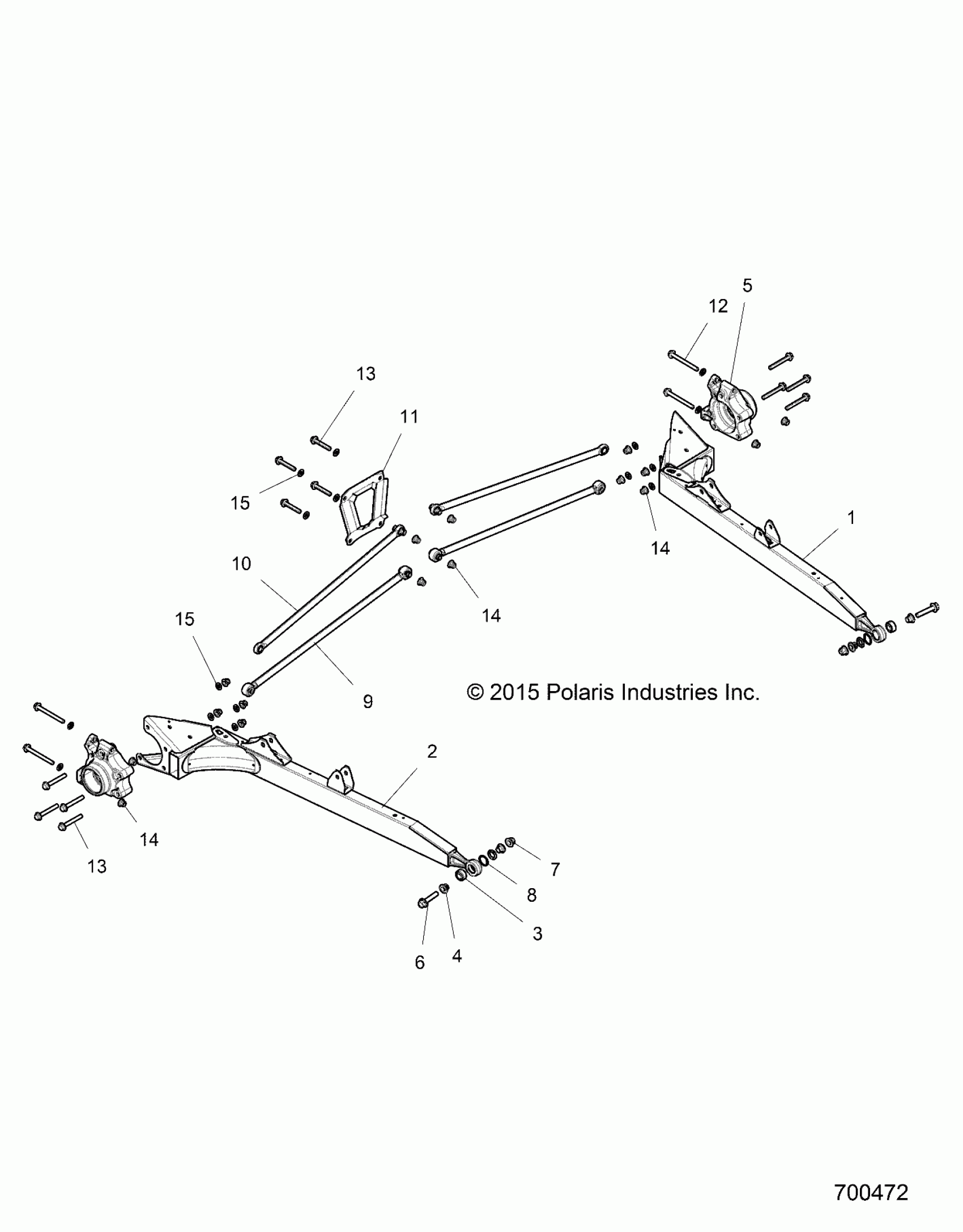

Polaris RZR XP 4 TURBO (R11) - Z16VFE92AE/AH/AS/AW SUSPENSION, REAR CONTROL ARMS - Z16VFE92AE/AH/AS/AW (49RGRSUSPRR151000) Diagram

#

Description
Price

1

WELD-TRL ARM,LH, WHITE [AH]

1019356-133

Unavailable

1

WELD-TRL ARM,LH, COSMIC SUNBURST [AE]

1019356-446

Unavailable

1

WELD-TRL ARM,LH, VL BL [AW]

1019356-689

$227.99

1

WELD-TRL ARM,LH, BLK [AS]

1019356-458

$383.99

2

WELD-TRL ARM,RH, WHITE [AH]

1019357-133

$227.99

2

WELD-TRL ARM,RH, COSMIC SUNBURST [AE]

1019357-446

$219.99

2

WELD-TRL ARM,RH, VL BL [AW]

1019357-689

$227.99

2

WELD-TRL ARM,RH, BLK [AS]

1019357-458

$383.99

3

BEARING, SPHERICAL

3514689

$39.99

4

BUSHING, REDUCER

5336751

$6.39

5

CARRIER, BEARING, WHEEL, LH

5139869

$95.99

5

CARRIER, BEARING, WHEEL, RH

5139870

$95.99

6

SCREW

7519138

$9.59

7

NUT, FLANGE, NYLOK

7547334

$4.79

8

RING, RETAINER

7710437

$3.19

9

ASM., RADIUS ROD, BOTTOM, WHITE [AH]

1543204-133

$179.99

9

ASM., RADIUS ROD, BOTTOM, COSMIC SUNBURST [AE]

1543204-446

$179.99

9

ASM., RADIUS ROD, BOTTOM,VL BL [AW]

1543204-689

$179.99

9

ASM., RADIUS ROD, BOTTOM,BLK [AS]

1543204-458

Unavailable

10

ASM-RADIUS ROD, WHITE [AH]

1543377-133

$127.99

10

ASM-RADIUS ROD, COSMIC SUNBURST [AE]

1543377-446

Unavailable

10

ASM-RADIUS ROD, VL BL [AW]

1543377-689

$179.99

10

ASM-RADIUS ROD, BLK [AS]

1543377-458

$131.99

11

PLATE-REAR,BOLT BRACE, WHITE [AH]

5259640-133

Unavailable

11

PLATE-REAR,BOLT BRACE, COSMIC SUNBURST [AE]

5259640-446

$79.19

11

PLATE-REAR,BOLT BRACE, VL BL [AW]

5259640-689

Unavailable

11

PLATE-REAR,BOLT BRACE, BLK [AS]

5259640-458

$71.99

12

SCREW

7519284

$3.99

13

SCREW

7519306

$5.59

13

SCREW

7519286

$7.19

13

SCREW

7519306

$5.59

13

SCREW

7519286

$7.19

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

Unavailable

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

Unavailable

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

Unavailable

15

WASHER

7556153

Unavailable

15

WASHER

7556153

Unavailable
