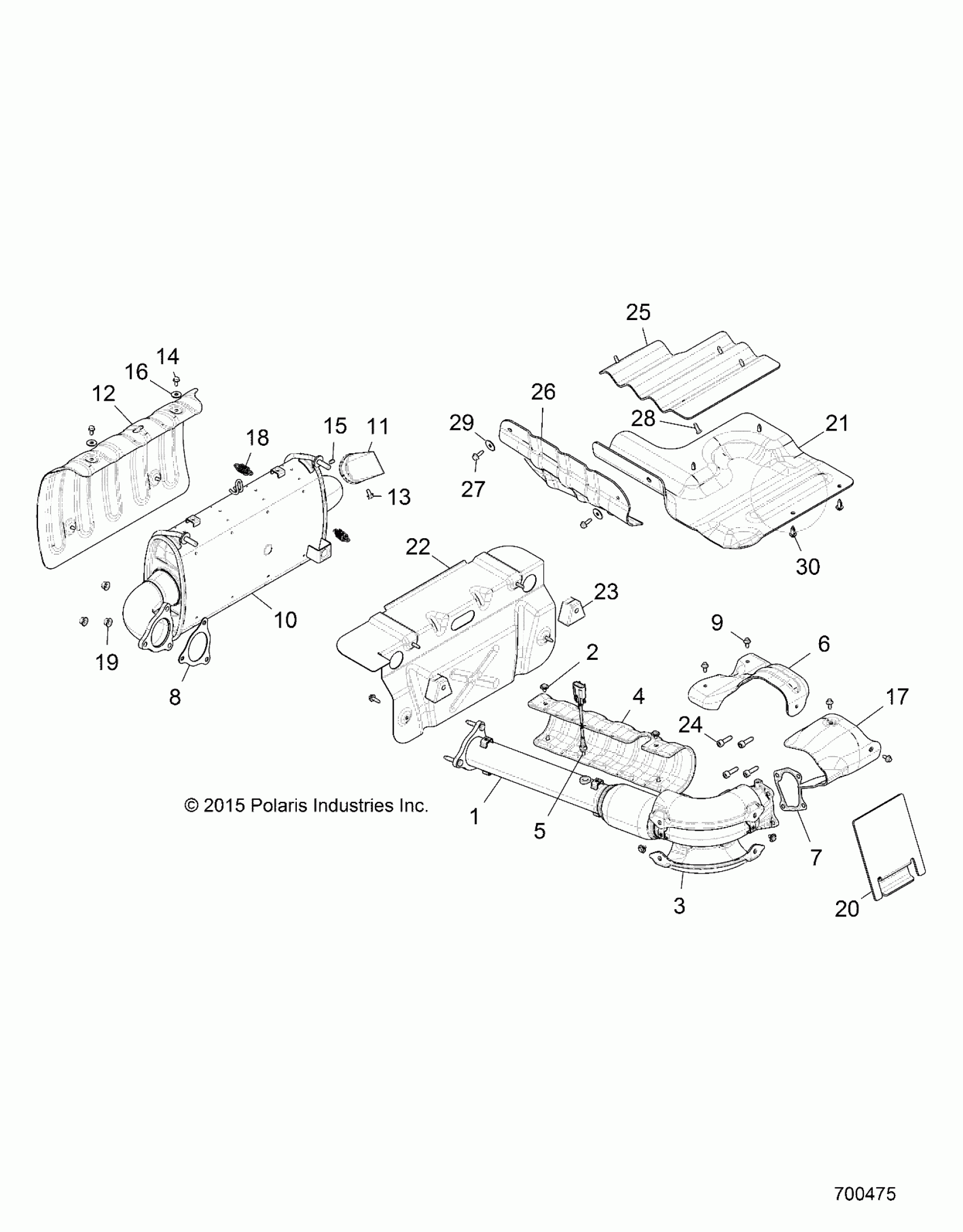

Polaris RZR XP 4 TURBO (R11) - Z16VFE92AE/AH/AS/AW ENGINE, EXHAUST SYSTEM - Z16VFE92AE/AH/AS/AW (700475) Diagram

#

Description
Price

1

ASM-HEADPIPE,TURBO [INCL 2-4]

1262621

Unavailable

1

STUD-M8X1.25X40 660A SS,LOCK

7520290

Unavailable

2

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.19

3

SHIELD-HEAT,HEADPIPE,FRONT

5260455

Unavailable

4

SHIELD-HEAT,HEADPIPE,RR,INNER

5260457

$43.99

5

SENSOR-OXYGEN

4016021

$159.99

6

SHIELD-HEAT,TURBO,UPPER

5260459

Unavailable

7

GASKET-EXHAUST

5812640

Unavailable

8

GASKET-EXHAUST,3 BOLT

5814340

Unavailable

9

SCR-HHSEMS-M6X1.0X12 A286,LOCK

7520276

Unavailable

10

ASM-SILENCER [INCL 11-16]

1262655

$805.19

11

WELD-SPARK ARRESTOR

1262390

$47.99

12

SHIELD-SILENCER

5261926

Unavailable

13

SCR-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.59

14

SCR-1/4-20X1/2,TFM HW-M

7518490

$1.49

15

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

16

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

17

SHIELD-HEAT,TURBO,OUTLET

5260461

Unavailable

18

SPRING-EXHAUST

7041789

$7.99

19

NUT-HXFL-M8X1.25 A493 EM6340

7547803

$3.99

20

SHIELD-ACCESS PANEL

5814082

$39.99

21

SHIELD-BOX,FRONT

5814245

$43.99

22

SHIELD-REAR,AL

5260102

$44.51

23

MNT-ISOLATOR

5450115

$14.39

24

SCR-SH-M8X1.25X25 A286,LOCK

7520277

$6.39

25

SHIELD-FOIL,ACCESS PANEL

5814000

Unavailable

26

SHIELD-ENGINE

5814284

$35.99

27

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

28

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.19

29

WASHER-.281X1.00X.051

7556329

$1.49

30

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49
