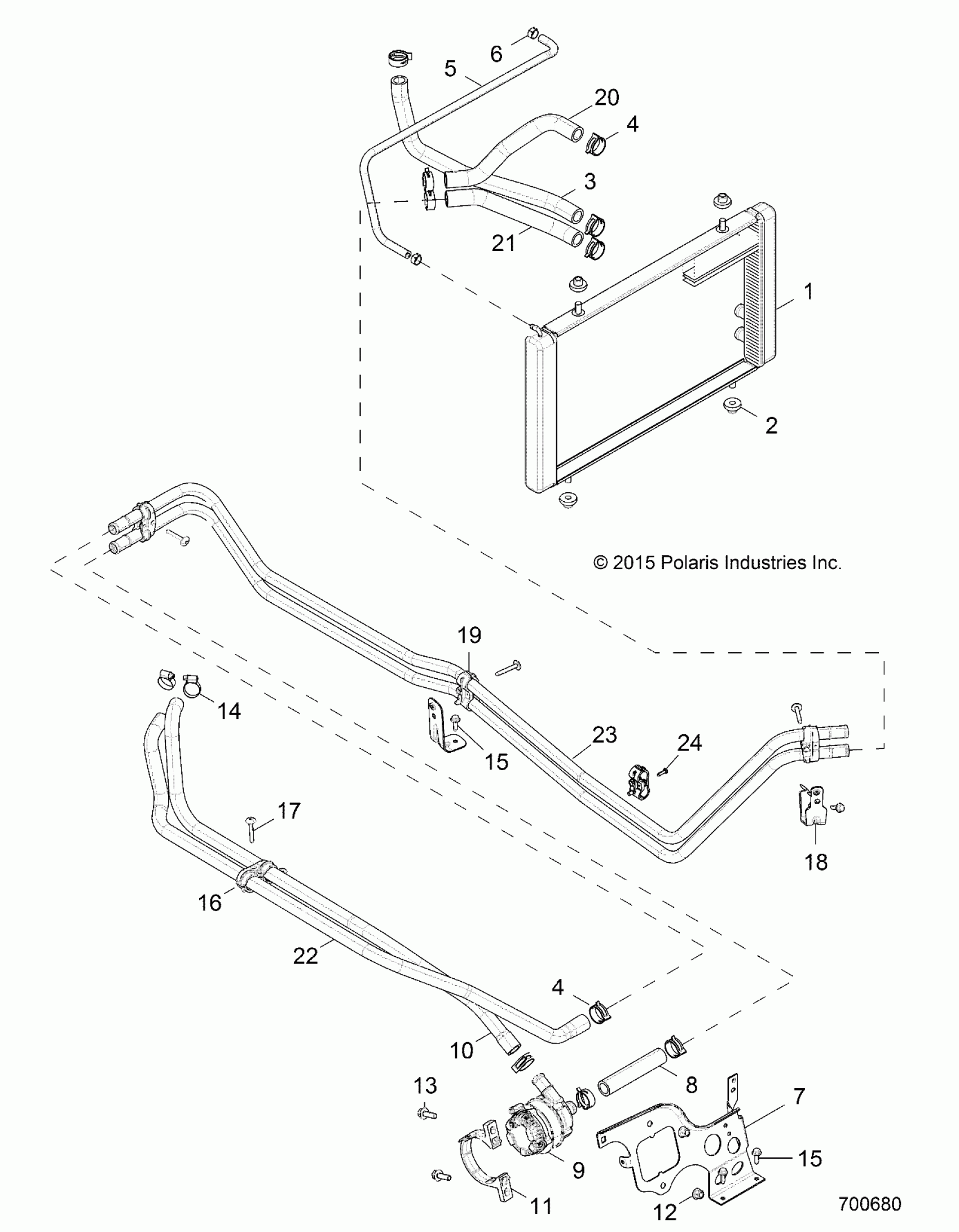

Polaris RZR XP 4 TURBO (R11) - Z16VFE92AE/AH/AS/AW ENGINE, COOLING, AUX. SYSTEM - Z16VFE92AE/AH/AS/AW (700680) Diagram

ASM-RADIATOR,CORE

1240908

$401.69

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

HOSE-OUT,SURGE TANK TO LTR

5415445

$31.99

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

1/4"SAEJ2002,EPDM HOSE,51CM

8450120-67

Unavailable

HOSE CLAMP, RED

7080003

$1.49

BRKT-MOUNT,WATER PUMP,BLK

5260110-329

$35.99

HOSE-PUMP INLET, 3/4",REAR

5415326

$11.19

ASM-PUMP,WATER,ELECTRIC

2413045

$404.79

HOSE-INTERCOOL,INLET,3/4",RR

5415324

$43.99

BRKT-MNT,WATER PUMP

5452166

$7.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

CLAMP-CONSTANT TENSION,16-27

7081415

$7.19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

BRACKET-COOLANT TUBE

5451221

$8.79

SCR-M6X1X40,TR/TX-BLK

7519001

$3.99

BRKT-COOLING TUBE

5260996

Unavailable

BRACKET-COOLANT TUBE,3/4"

5451785

$4.79

HOSE-RADIATOR, 3/4",UPPER

5415320

$27.99

HOSE-RADIATOR, 3/4",LOWER

5415321

$27.99

HOSE-INTERCOOL,OUTLET,3/4",RR

5415325

$47.99

TUBE-COOLANT,3/4",MP

5139653

Unavailable

SCR-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49
