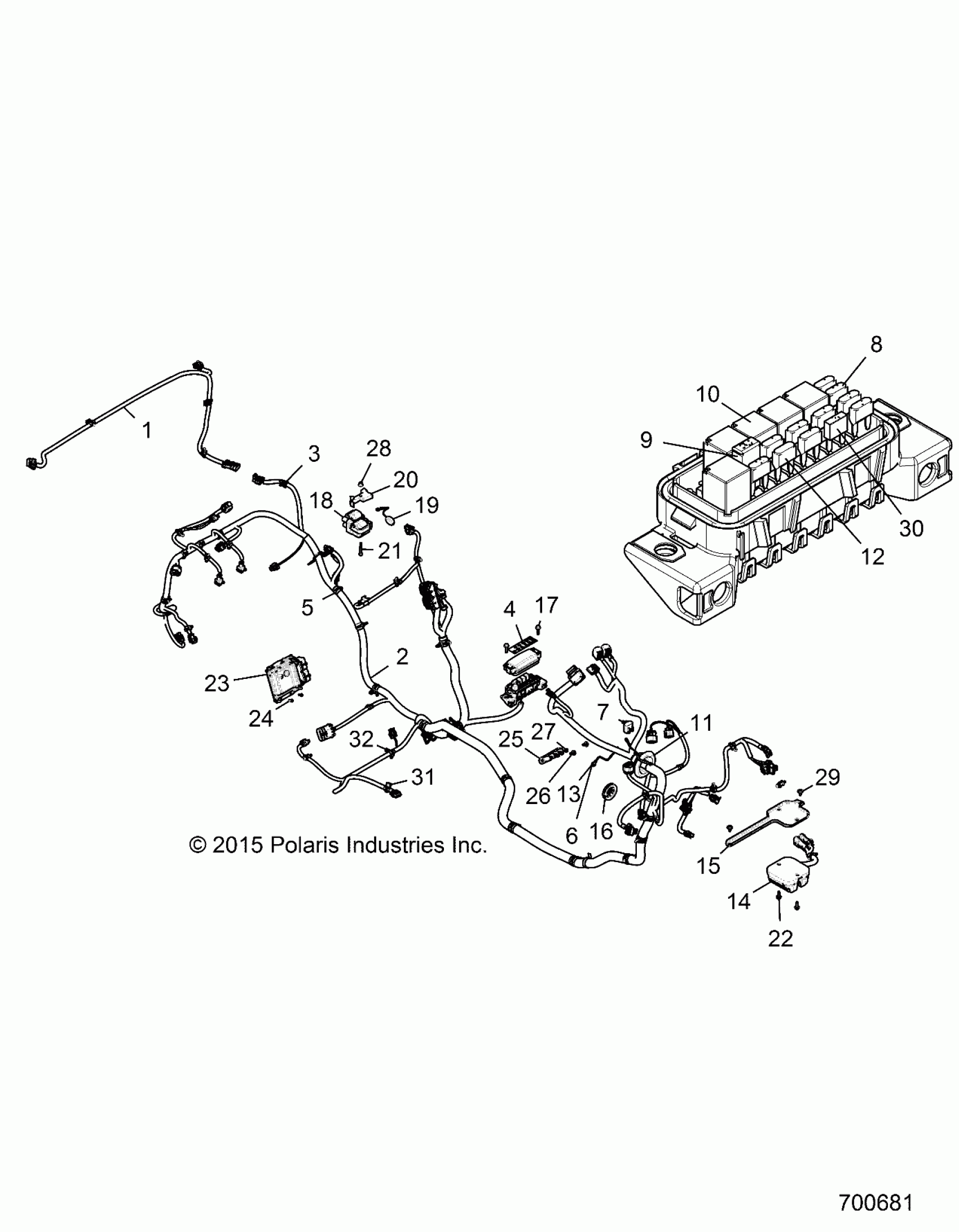

Polaris RZR XP 4 TURBO (R11) - Z16VFE92AE/AH/AS/AW ELECTRICAL, WIRE HARNESS - Z16VFE92AE/AH/AS/AW (700681) Diagram

#

Description
Price

1

HARNESS, BOX

2412884

$55.99

2

HARNESS, CHASSIS [INCL 3-13, 30-32]

2412941

$1,187.99

2

KIT-HARNESS,T-MAP

2881482

$147.99

3

CLIP, ROUTING

7082068

$7.19

4

LABEL, FUSE BOX

7182524

Unavailable

5

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

6

CLIP, ROUTING

7082020

$5.59

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

FUSE-PARK,20 AMP

2434017

Unavailable

9

BREAKER, CIRCUIT, 30AMP

4013894

$39.99

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

GROMMET

5813954

$7.19

12

FUSE-IGNITION,10 AMP

2434016

$4.79

13

LED, PANEL MOUNT

2413217

$51.99

14

REG-3PH,50A,SERIES,HISPD,TCAP

4015816

$304.99

15

BRKT-MOUNT,REGULATOR,BLK

5261650-329

Unavailable

16

GROMMET

5414440

$7.19

17

BOLT, FLANGE, BLACK

7518576

$3.19

18

COIL-EFI

4010425

Unavailable

19

JUMPER ,COIL GROUND

4014422

$27.99

20

SPACER-COIL MOUNT

5436577

$3.99

21

SCREW

7518780

$3.99

22

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

23

ECM, NO START

4014125

$694.99

24

SCREW

7519091

$3.19

25

BLOCK, TERMINAL, 3 POST

4011892

$27.99

26

Screw

7518196

$1.49

27

NUTS-KEPS

7547341

$1.49

28

NUT-M6 FLANGE,NYLOC

7547274

$1.49

29

SCR-M6X1X16 TR/TX-M

7518936

$3.99

30

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

31

CLIP-EDGE,HARNESS

7081890

$10.39

32

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79
