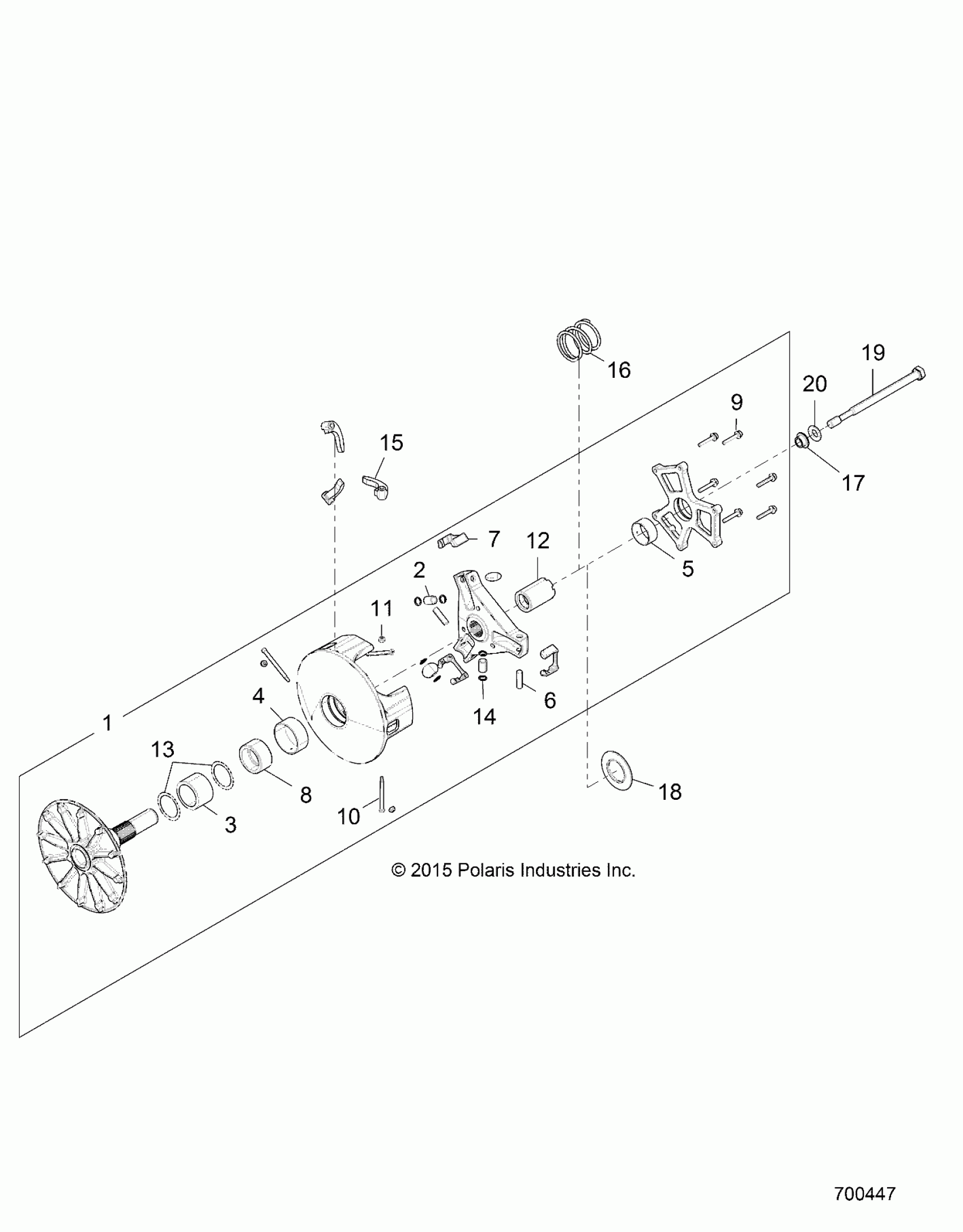

Polaris RZR XP 4 TURBO (R11) - Z16VFE92AE/AH/AS/AW DRIVE TRAIN, PRIMARY CLUTCH - Z16VFE92AE/AH/AS/AW (700447) Diagram

#

Description
Price

1

ASM-DRIVE CLUTCH,BASIC [INCL 2-14]

1323327

$854.99

2

ASM-ROLLER W/BUSHING

1323229

$31.10

3

BEARING-NEEDLE

3514890

$47.49

4

BEARING-MOV,HD

3514891

$33.24

5

BUSHING-COVER,HD

3514892

$52.49

6

PIN-ROLLER,SPIDER,HD

5139559

$31.75

7

SLIDER-DRIVE,HD

5451564

$24.27

8

SPACER-CLUTCH,HD

5633565

$85.70

9

BOLT-M6X1.0X35,HXFLG/SH-OLV D

7518612

$4.76

10

BOLT-SHIFT WEIGHT

7520103

$20.22

11

NUT-10-24-FLEX LOC-Z

7541906

$3.17

12

NUT-SPIDER,HD

7547744

$48.56

13

WASHER-CLUTCH

7556893

$16.14

14

WASHER-THRUST

7556938

$10.32

15

WEIGHT-SHIFT,W-31-59,PM

5139823

$40.46

16

SPRING-DRIVE,HD

7044585

$36.41

17

WASHER-CLUTCH RET,M14

5132441

$23.81

18

SPACER-CLUTCH,LIMITER

5452816

$9.99

19

SCR-M14X1.5X215,HX,10.9,Y35,R

7518412

$34.99

20

WASHER-BLVL,.567X1.125X.118-Y

7556003

$6.35
