- RZR XP 4 TURBO (R11) - Z16VFE92AE/AH/AS/AW
BODY, REAR RACK AND FENDERS - Z16VFE92AE/AH/AS/AW (700438)

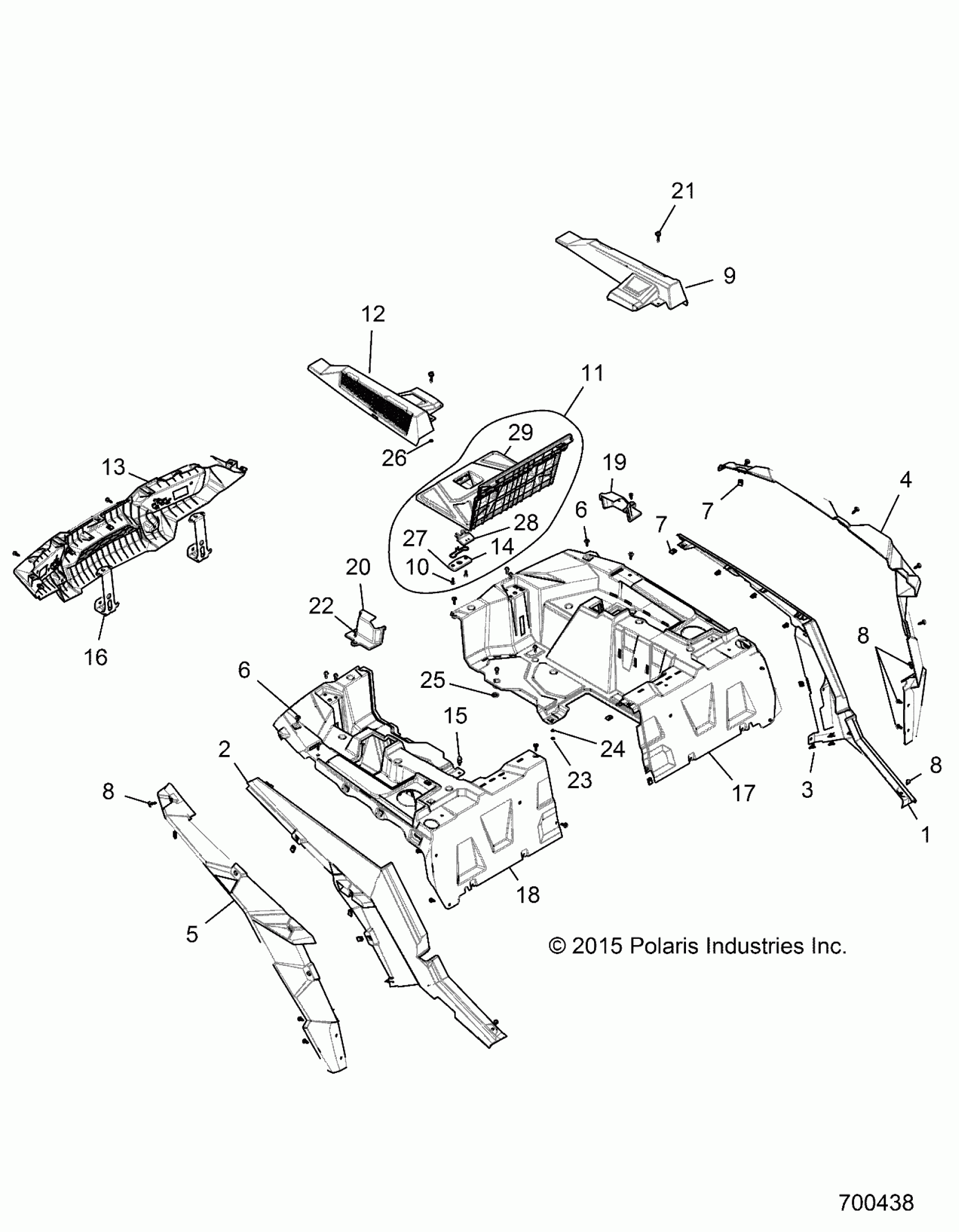

Polaris RZR XP 4 TURBO (R11) - Z16VFE92AE/AH/AS/AW BODY, REAR RACK AND FENDERS - Z16VFE92AE/AH/AS/AW (700438) Diagram
#
1
ASM-FNDR,PNT,RR,CLIP,LH,S.GRPH [INCL. QTY 6 OF 3][AH]
2635123-688
Unavailable
1
ASM-FNDR,PNT,RR,CLIP,LH,SP.ORG [INCL. QTY 6 OF 3][AE]
2635123-697
Unavailable
1
ASM-FNDR,PNT,RR,CLIP,LH,MT. WHITE [INCL. QTY 6 OF 3][AW]
2635123-662
$372.01
1
ASM-FNDR,PNT,RR,CLIP,LH,M.S.RED [INCL. QTY 6 OF 3][AS]
2635123-669
$372.01
2
ASM-FNDR,PNT,RR,CLIP,RH,S.GRPH [INCL. QTY 6 OF 3][AH]
2635126-688
Unavailable
2
ASM-FNDR,PNT,RR,CLIP,RH,SP.ORG [INCL. QTY 6 OF 3][AE]
2635126-697
Unavailable
2
ASM-FNDR,PNT,RR,CLIP,RH,MT. WHITE [INCL. QTY 6 OF 3][AW]
2635126-662
$372.01
2
ASM-FNDR,PNT,RR,CLIP,RH,M.S.RED [INCL. QTY 6 OF 3][AS]
2635126-669
$372.01
3
CLIP-DASH,TRIM,METAL
7519806
Unavailable
4
FENDER, REAR FLAIR, LH, BLACK
5439762-070
$103.99
5
FENDER, REAR FLAIR, RH, BLACK
5439763-070
$103.99
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
Unavailable
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
Unavailable
7
NUT, U-TYPE
7547674
Unavailable
7
NUT, U-TYPE
7547674
Unavailable
8
Rivet
7661855
Unavailable
8
Rivet
7661855
Unavailable
8
Rivet
7661855
Unavailable
9
ASM., BEZEL, LH, FROG SKINZ
2635658
$103.99
10
SCREW
7519290
$3.99
11
ASM., PANEL, BOX, ACCESS [INCL. 10, 14, 27-29, WARNING DECAL]
2636140
Unavailable
12
ASM., BEZEL, RH, FROG SKINZ
2635659
$103.99
13
ASM., FASCIA, REAR, DECAL, BLACK [INCL. DECAL]
2635073-070
$203.99
14
SPRING, LATCH, SEAT
7081466
$39.99
15
PLUNGER, BOX LATCH
5139009
$13.59
16
BRACKET, REAR FASCIA, BLACK
5257790-329
Unavailable
17
BOX, REAR, LH, BLACK
5439784-070
Unavailable
18
BOX, REAR, RH, BLACK
5450238-070
Unavailable
19
PANEL, SHOCK, RESERVOIR, LH, BLACK
5452043-070
$10.39
20
PANEL, SHOCK, RESERVOIR, RH, BLACK
5452044-070
$10.39
21
KNOB
7081619
$14.39
22
SCREW
7512026
$1.49
23
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
24
Washer, Flat
7555859
$1.49
25
WASHER, NYLON
7555916
$1.59
26
RETAINER, BOLT
7670154
$1.49
27
LATCH, COVER PLATE, BLACK
5450510-070
$4.79
28
HANDLE-SEAT BASE LATCH
5437121
$4.84
29
PANEL, BOX, ACCESS, BLACK
5450499-070
Unavailable
