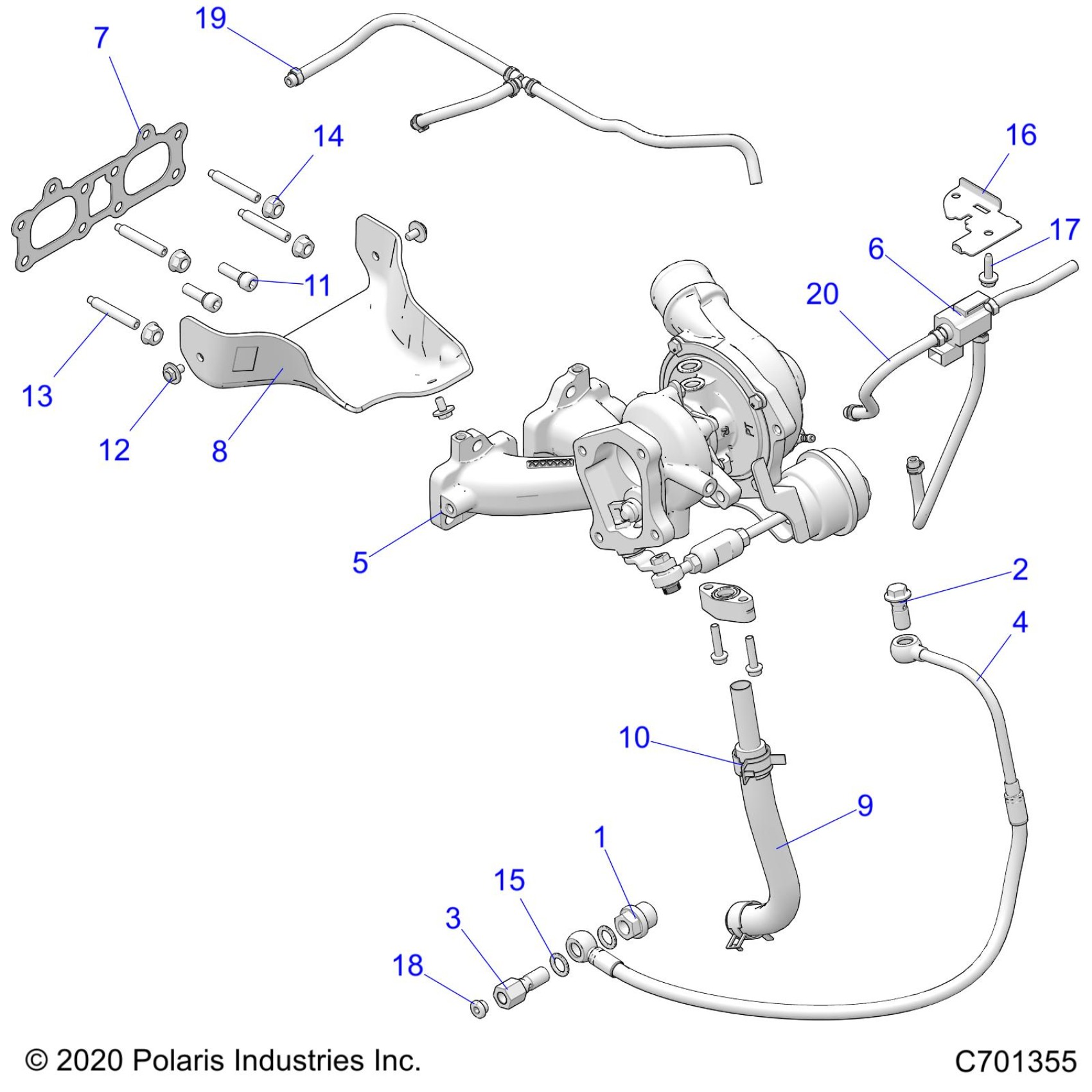

Polaris RZR XP 4 TURBO (R05) - Z21N4E92AX/AG/BG/BX ENGINE, TURBO CHARGER MOUNTING - Z21N4E92AX/AG/BG/BX (C701355) Diagram

#

Description
Price

1

PLUG,ADAPTER,W/O-RING,M20X1.5

7052689

$23.99

2

BOLT-BANJO,M12X1.5

2522034

$27.99

3

BOLT-BANJO,M12X1.5-1/4NPT

7052693

$13.59

4

ASM-OIL LINE,SUPPLY

2521645

$99.99

5

ASM-TURBO,588

-------

Unavailable

6

VALVE,ELECTRONIC BOOST CONTROL

4011285

$242.84

7

GASKET-EXHAUST SEAL

3610184

$48.56

8

SHIELD-HEAT,TURBO,LOWER

5266198

$39.99

9

HOSE-DRAIN,FORMED

5415727

$31.99

10

CLAMP-HOSE,SPRING,24MM

7081825

$7.99

11

SCR-M8X1.25X25,HX/SOC/SEMS-Y

7517322

$2.39

12

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.19

13

STUD-M8X1.25X45,SOCKET

7520377

$3.99

14

NUT-HXFLGHD,M8,0600087

7546805

Unavailable

15

WASHER-COPPER SEALING

7556937

$2.39

16

BRKT-BOOST CONTROLLER

5261420

$7.19

17

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

18

PLUG-HEX SCKT,W/O-RING,M10X1

7052640

$7.19

19

CLAMP-OETIKER,16700005-10.0

7082109

$3.99

20

LINE-BOOST,3/16 ID

8450153

Unavailable
