Description

Price

1

ASM-GEARCASE,COMPLETE [INCL. ALL]

1334649

$4,078.79

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

4

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.19

4

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.19

5

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

3235208

$11.19

6

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.99

6

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.99

7

SCREW HEX FLANGE M8 X 1.25 X 70

3235802

$6.15

8

NUT, JAM M20 X 1.5

3235803

$7.99

9

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.99

10

WASHER-CUP

3234091

$9.59

10

WASHER-CUP

3234091

$9.59

11

WASHER-32.3X42X1.5(115288)

3235211

$10.39

11

WASHER-32.3X42X1.5(115288)

3235211

$10.39

11

WASHER-32.3X42X1.5(115288)

3235211

$10.39

12

WASHER-35.6X57X1.5(115289)

3235212

$13.59

13

WASHER, LOCKING 21.4 X 39 x 3.40

3235804

$11.43

14

WASHER 25.26 X 34 X 2

3235805

$7.03

15

WASHER 22.70 X 32.0 X 1.5

3235991

$11.43

16

PIN, DOWEL 6 X 20

3234330

$7.19

17

PIN, SPRING, SLOTTED 6 X 12

7043746

$7.19

18

RING, RETAINING BASIC EXTERNAL

7710434

$3.99

19

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

20

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

21

RING, RETAINING BASIC EXTERNAL

3233834

$10.39

22

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.39

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

24

RING, RETAINING BASIC, INTERNAL, 62MM

3234741

$9.59

25

RING, RETAINING,

3234205

$11.19

25

RING, RETAINING,

3234205

$11.19

25

RING, RETAINING,

3234205

$11.19

26

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

26

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

26

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

27

RING-RETAIN,VSH-237(130298)

3235216

$10.39

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

29

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

30

SPACER, 19.4 X 34.0 X 2.0

3235883

$23.99

31

BEARING, NEEDLE

3233014

$43.99

31

BEARING, NEEDLE

3233014

$43.99

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

33

BEARING

3233020

$47.99

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

35

BEARING-BALL 6206 C3 30X62X16

3233790

$27.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

37

BEARING-NEEDLE,30X35X13-CAGED

3233384

$31.99

38

BEARING, BALL, 6012 C3 60 X 95 X 18

3235218

$59.99

39

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

39

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

40

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.99

40

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.99

41

BEARING, BALL 62/32

3236773

$47.99

42

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

42

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

43

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$23.99

43

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$23.99

44

SPRING, COMPRESSION 0.36 O.D. X 1.125

3234578

$12.79

45

SPRING, TORSION

3235885

$19.99

46

WASHER-SPRING,210393

3235327

$9.59

47

COVER, SECTOR GEARS MACH

3235809

$39.59

48

TUBE, SNORKEL MACH

3235947

$99.99

49

GEAR, SECTOR, 16T

3233839

$31.99

50

GEAR-SECTOR,31T

3233832

$31.99

51

PLATE, PARK, 12 FACE

3235456

$35.99

52

STAR, DETENT,

3235982

$31.99

53

SHAFT-IDLER,29T(285803)

3235223

$107.99

54

SHAFT-REVERSE,27T(285878)

3235380

$243.99

55

GEAR, 19T SNORKEL

3235812

$123.99

56

BELLCRANK, 92 DEGREE

3235227

$23.99

57

COLLAR-SHIFT

3234073

$31.99

58

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

59

ENGAGEMENT DOG,6-FACE(352857)

3235233

$119.99

60

GEAR-46T,STAGE 3(352872)

3235236

$103.99

61

SHAFT-SHIFT(352973)

3235238

$37.61

62

GEAR, 46T, STAGE 2

3235381

$123.99

63

SHIFT DOG, PARK/LOW (353357)

3235457

$135.99

64

RAIL-SHIFT SHAFT(353622)

3235542

$27.99

65

GEAR, LOW, 61T

3235561

$79.99

66

SHAFT, FRONT OUTPUT

3235815

$159.99

67

COUPLER

3235816

$43.99

68

CAM, PARK

3235983

$151.99

69

DRUM, SHIFT MACH,

3235984

$263.99

70

GEAR, LOW 31T

3235990

$96.79

71

GEAR, REVERSE 56T

3235985

$95.99

72

GEAR, IDLER 39T

3235986

$107.99

72

GEAR, IDLER 39T

3235986

$107.99

73

GEAR, 52T

3236435

$79.99

74

WELDMENT, REAR MOUNT BRACKET

3236144

$39.99

75

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235452

$31.99

76

SUBASSEMBLY, SHIFT FORK

3235920

$71.99

76

SUBASSEMBLY, SHIFT FORK

3235920

$71.99

77

SUBASSEMBLY, PINION

3235820

$347.99

78

SUBASSEMBLY, OUTPUT

3235847

$284.23

79

SUBASSEMBLY, INPUT 43T/22T/31T

3236704

$327.99

80

SUBASSEMBLY, RH CASE

3235992

$347.99

81

SUBASSEMBLY, LH CASE

3239201

$452.97

82

COVER, BEARING CENTER DRIVE

3235823

$43.99

83

BRACKET, REAR MOUNT

3236145

$39.99

84

SENSOR-SPEED,TRANS

4013908

Unavailable

85

SWITCH, ROTARY , 2 PIN RESISTIVE

7662299

$111.99

86

PLUG, M18 X 1.5

3234755

$27.99

87

O-RING 3.609 I.D. X 0.139

3235948

$6.39

88

SEAL, VITON TRIPLE LIP W/SHIELD AND FLANGE,32X49X9

3239310

Unavailable

89

O-RING, -012 VITON

3233836

$6.87

90

O-RING, -113 VITON

3233840

$11.19

91

O-RING, -014 VITON

3233828

$6.79

92

SEAL, TRIPLE LIP, VITON HELIX 40X70X7

3235052

$31.99

92

SEAL, TRIPLE LIP, VITON HELIX 40X70X7

3235052

$31.99

93

SEAL, TRIPLE LIP 30 X 75 X 8

3235824

$55.99

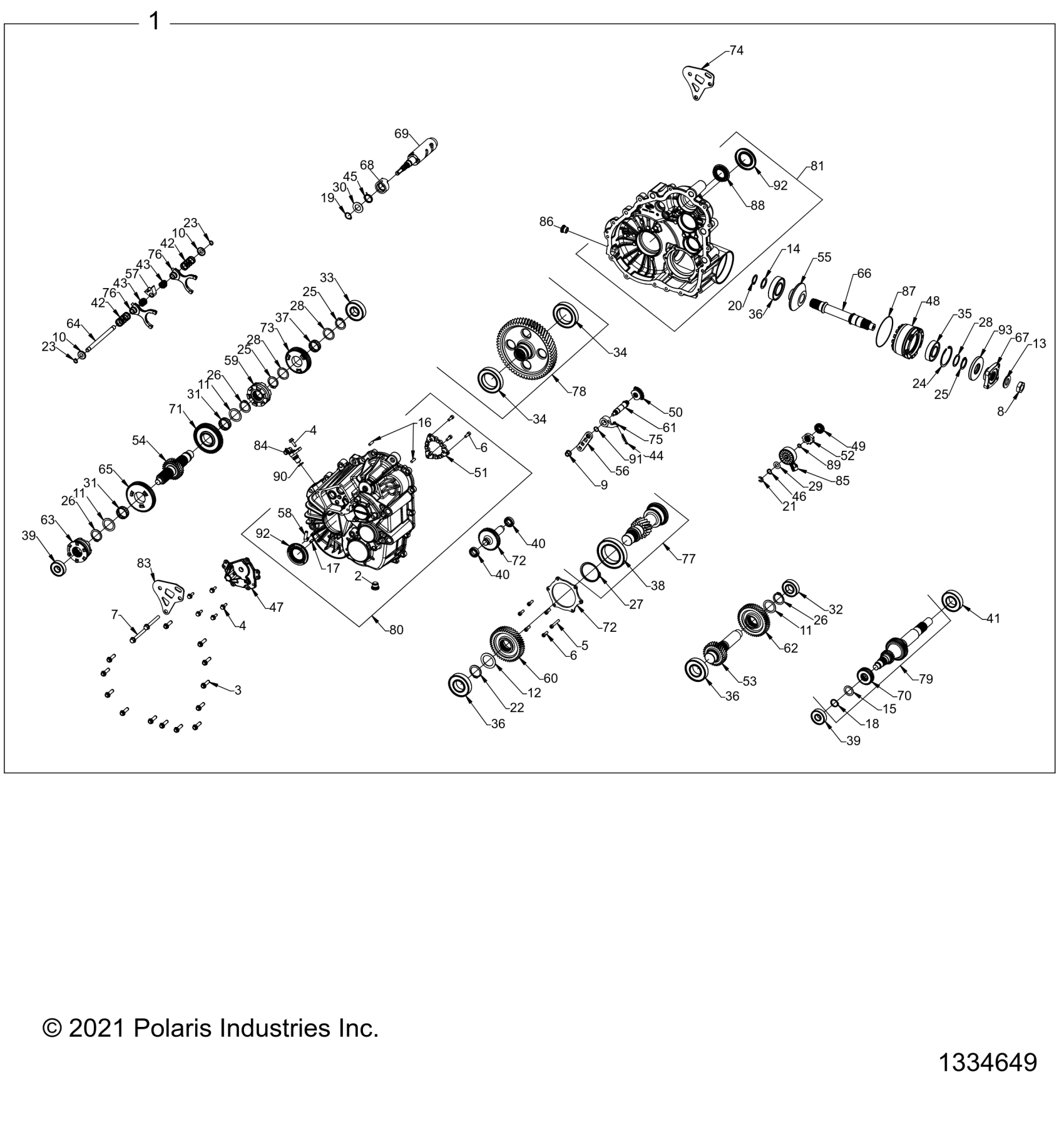

Polaris RZR XP 4 TURBO (R05) - Z21N4E92AX/AG/BG/BX DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z21N4E92AX/AG/BG/BX (1334649) Diagram

ASM-GEARCASE,COMPLETE [INCL. ALL]

PLUG, M18 X 1.5 MAGNETIC

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

SCREW HEX FLANGE M8 X 1.25 X 70

NUT, JAM M20 X 1.5

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

WASHER-CUP

WASHER-CUP

WASHER-32.3X42X1.5(115288)

WASHER-32.3X42X1.5(115288)

WASHER-32.3X42X1.5(115288)

WASHER-35.6X57X1.5(115289)

WASHER, LOCKING 21.4 X 39 x 3.40

WASHER 25.26 X 34 X 2

WASHER 22.70 X 32.0 X 1.5

PIN, DOWEL 6 X 20

PIN, SPRING, SLOTTED 6 X 12

RING, RETAINING BASIC EXTERNAL

RING,RETAINING BASIC,EXTERNAL 0.75

RING,RETAINING BASIC,EXTERNAL 0.984

RING, RETAINING BASIC EXTERNAL

RING, RETAINING, SHAFT, DIA. 1.375

RING,RETAINING BASIC,EXTERNAL 0.428

RING,RETAINING BASIC,EXTERNAL 0.428

RING, RETAINING BASIC, INTERNAL, 62MM

RING, RETAINING,

RING, RETAINING,

RING, RETAINING,

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,VSH-237(130298)

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,0.446 X 0.88 X 0.025

SPACER, 19.4 X 34.0 X 2.0

BEARING, NEEDLE

BEARING, NEEDLE

BEARING, BALL, 6205 C3 25X52X15

BEARING

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING-BALL 6206 C3 30X62X16

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING-NEEDLE,30X35X13-CAGED

BEARING, BALL, 6012 C3 60 X 95 X 18

BEARING, BALL 6303, 17 X 47 X 14

BEARING, BALL 6303, 17 X 47 X 14

BEARING, BALL 6903 17 X 30 X 7

BEARING, BALL 6903 17 X 30 X 7

BEARING, BALL 62/32

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING, COMPRESSION, 0.46 I.D. X 0.73

SPRING, COMPRESSION, 0.46 I.D. X 0.73

SPRING, COMPRESSION 0.36 O.D. X 1.125

SPRING, TORSION

WASHER-SPRING,210393

COVER, SECTOR GEARS MACH

TUBE, SNORKEL MACH

GEAR, SECTOR, 16T

GEAR-SECTOR,31T

PLATE, PARK, 12 FACE

STAR, DETENT,

SHAFT-IDLER,29T(285803)

SHAFT-REVERSE,27T(285878)

GEAR, 19T SNORKEL

BELLCRANK, 92 DEGREE

COLLAR-SHIFT

TUBE, VENT 90 -1/4 INCH HOSE

ENGAGEMENT DOG,6-FACE(352857)
