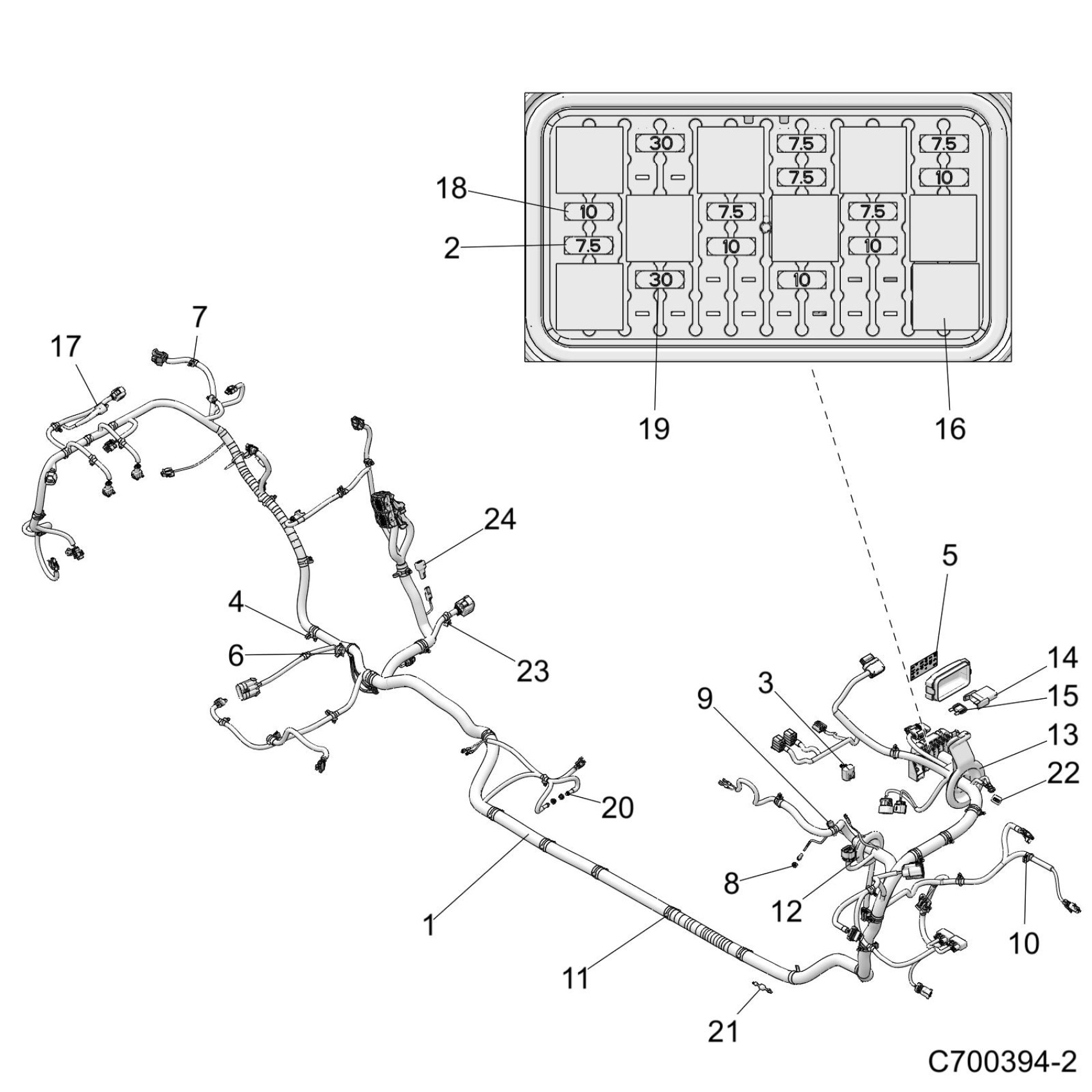

Polaris RZR XP 4 TURBO (R03) - Z20N4E92AL/AR/BL/BR/F92AL/AR ELECTRICAL, WIRE HARNESS - Z20N4E92BL/BR/F92AL/AR (C700394-2) Diagram

#

Description
Price

1

HARNESS-CHASSIS,RZR,T,64,MP,CA [INCL ALL]

2414552

$1,680.79

2

FUSE-7.5 MINI BLADE (BROWN)

4011068

Unavailable

3

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

4

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

5

LABEL-FUSE BOX

7188876

Unavailable

6

CLIP-OMEGA,CABLE/15-18MM DIA

7082481

$6.39

7

CLIP-ROUTING

7082068

$7.19

8

CLIP-ROUTING,DIN BOX

7082020

$5.59

9

CLIP-EDGE,HARNESS

7081890

$10.39

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

11

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

12

GROMMET-65MM,BLK

5813954

$7.19

13

GROMMET-DASH FUSE CTR,RZR

5416469

$10.39

14

HOLDER-FUSE,SEALED

4018207

$67.99

15

FUSE-MAXI,50A

4017180

$39.99

16

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

17

BOOT-TMAP

4018263

$7.99

18

FUSE-IGNITION,10 AMP

2434016

$4.79

19

FUSE-MAIN,30 AMP

2434015

$7.19

20

LED-PANEL MNT,12V,BLUE

2413217

$51.99

21

DIODE-6AMP,1/4,3/16 TERM

2411035

$51.99

22

DIODE-6 AMP

2410000

$35.99

23

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

24

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79
