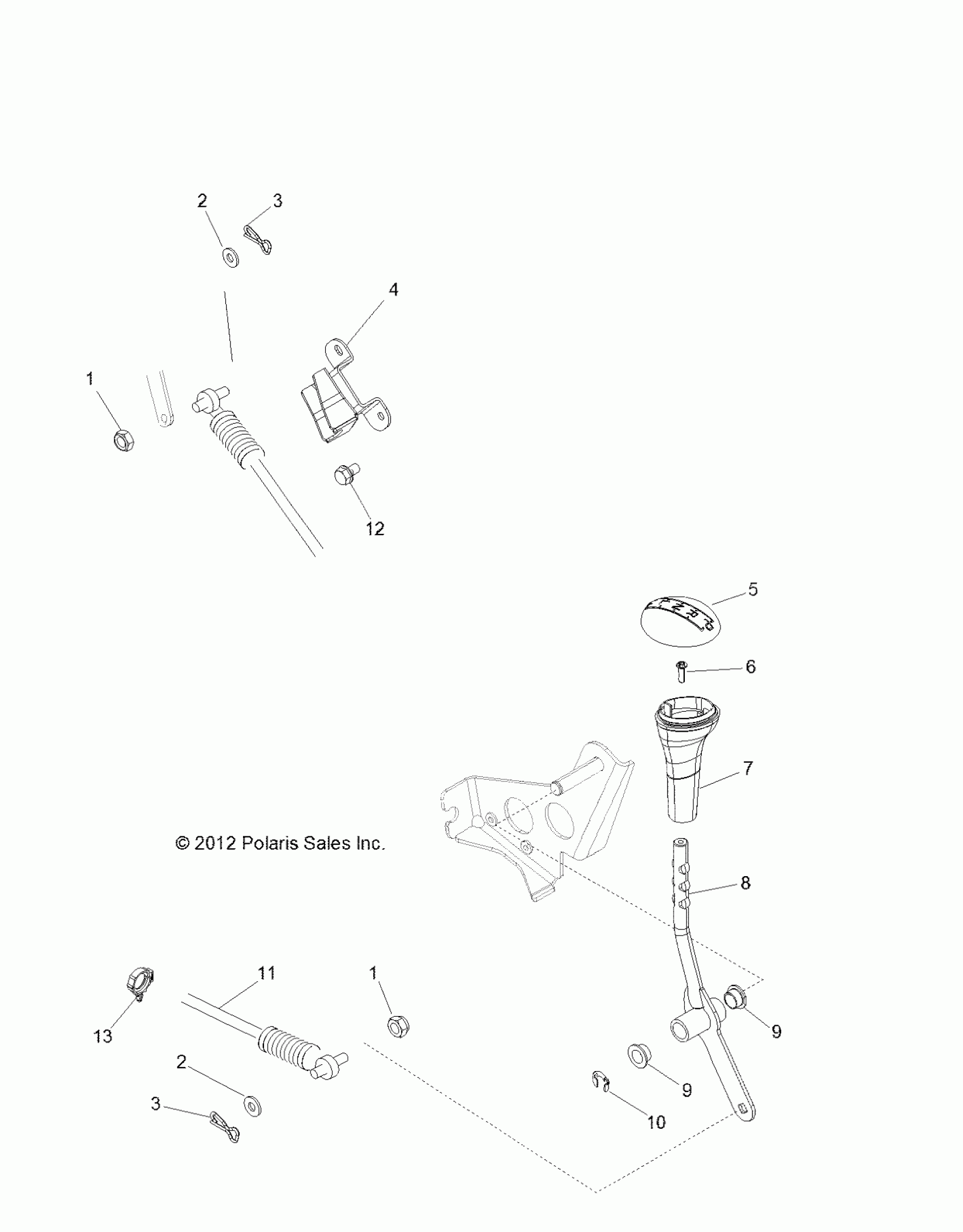

Polaris RZR XP 4 900 EFI - R13XT87AA/9EAK DRIVE TRAIN, GEAR SELECTOR - R13XT87AA/9EAK (49RGRGEARSELECT13RZRXP4) Diagram

#

Description
Price

1

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

1

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

2

WASHER

7555954

$4.79

2

WASHER

7555954

$4.79

3

PIN-CLIP,14MM

7661140

$1.49

3

PIN-CLIP,14MM

7661140

$1.49

4

BRACKET, CABLE, SHIFT [BUILT 11/02/12 TO 2/26/13]

5257726

$31.99

4

BRACKET, CABLE, SHIFT [BUILT 11/01/12 AND BEFORE]

1019511

$18.23

4

BRACKET, CABLE, SHIFT [BUILT 2/27/13 AND AFTER]

1019303

Unavailable

5

COVER, SHIFT

5413299

$11.99

6

SCREW

7512024

$4.79

7

KNOB, GEAR SELECTOR SHIFT

5411007

Unavailable

8

LEVER, SHIFT

1542256

Unavailable

9

BUSHING-PEDAL PIVOT

5431107

$8.79

9

BUSHING-PEDAL PIVOT

5431107

$8.79

10

RING, RETAINING, E

7710901

$7.19

11

CABLE, SHIFT

7081704

$147.99

12

BOLT, FLANGE

7519374

$4.79

13

Clip, Rosebud

4020149

$6.39
