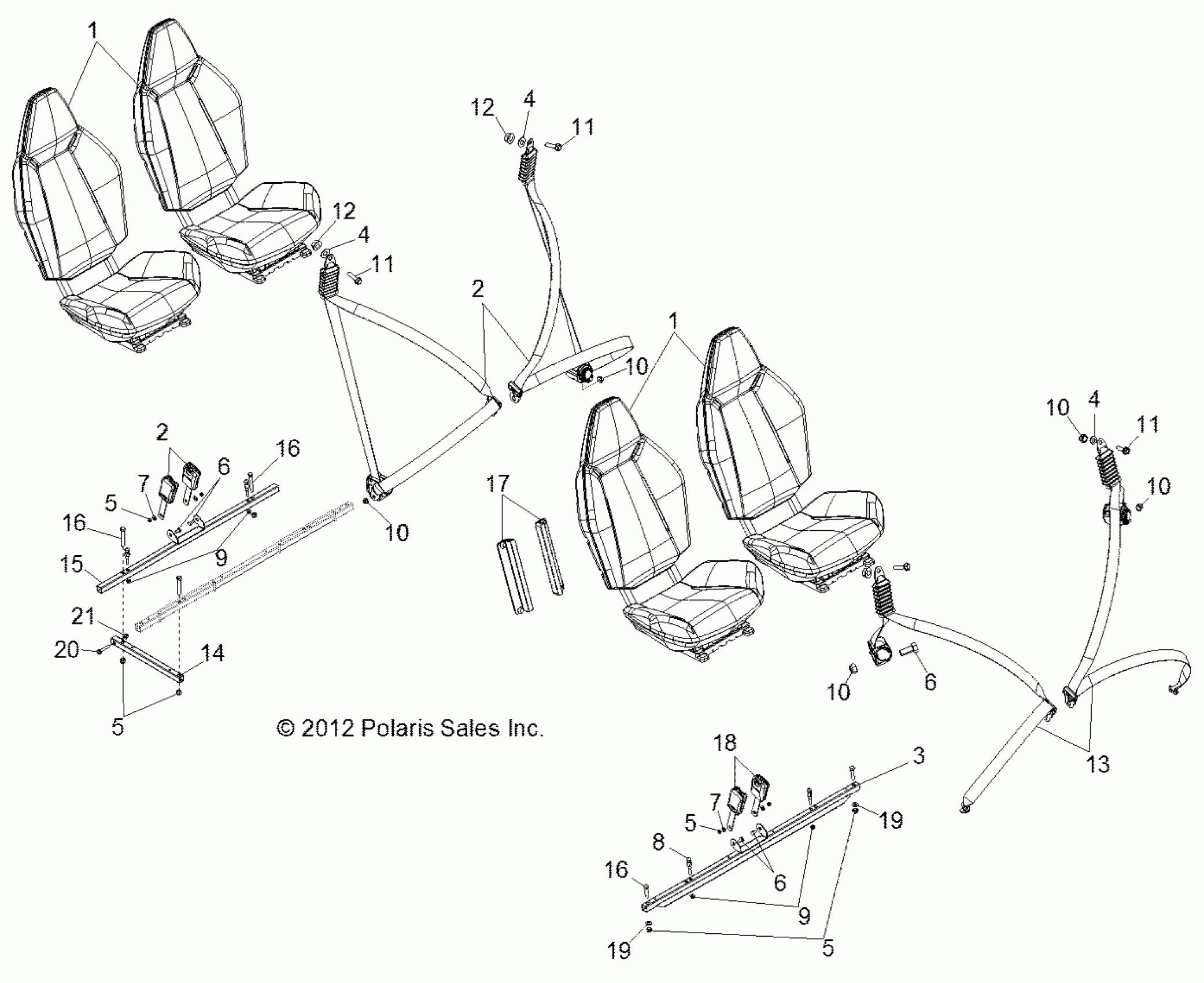

Polaris RZR XP 4 900 EFI - R13XT87AA/9EAK BODY, SEAT MOUNTING and BELTS - R13XT87AA/9EAK (49RGRSEATMTG13RZRXP4) Diagram

#

Description
Price

1

ASM., SEAT [SEE SEAT ASM. PAGE FOR DETAILS]

-------

Unavailable

1

ASM., SEAT [SEE SEAT ASM. PAGE FOR DETAILS]

-------

Unavailable

2

ASM., SEAT BELT, 3 POINT [INCL. 11,12]

2634887

$179.99

2

ASM., SEAT BELT, 3 POINT [INCL. 11,12]

2634887

$179.99

3

BASE, SEAT, MATTE BLACK

1017454-458

$115.99

4

WASHER-SEATBELT,RUBBER

5813829

$1.49

4

WASHER-SEATBELT,RUBBER

5813829

$1.49

4

WASHER-SEATBELT,RUBBER

5813829

$1.49

5

NUT, NYLON

7542525

$4.79

5

NUT, NYLON

7542525

$4.79

5

NUT, NYLON

7542525

$4.79

5

NUT, NYLON

7542525

$4.79

6

BOLT

7512520

$4.79

6

BOLT

7512520

$4.79

6

BOLT

7512520

$4.79

7

WASHER, FLAT

7556333

$3.99

7

WASHER, FLAT

7556333

$3.99

8

PLUNGER-LATCH

7519252

$14.39

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

11

SCREW

7519332

$5.59

11

SCREW

7519332

$5.59

11

SCREW

7519332

$5.59

12

NUT, LOCK

7547503

Unavailable

12

NUT, LOCK

7547503

Unavailable

13

ASM., SEAT BELT, FRONT

2634888

$195.99

14

TUBE, SUPPORT, SEAT, REAR, MATTE BLACK

5336541-458

Unavailable

15

BASE, SEAT, REAR, BACK, MATTE BLACK

1017452-458

Unavailable

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

17

BUMPER, RUBBER, SEAT HOOP

5414011

$23.99

18

BUCKLE, SEAT BELT, CABLE

2634173

Unavailable

19

WASHER, FLAT

7556468

$3.99

19

WASHER, FLAT

7556468

$3.99

20

SCREW

7516732

$1.59

21

Nut, Flange

7547317

Unavailable
