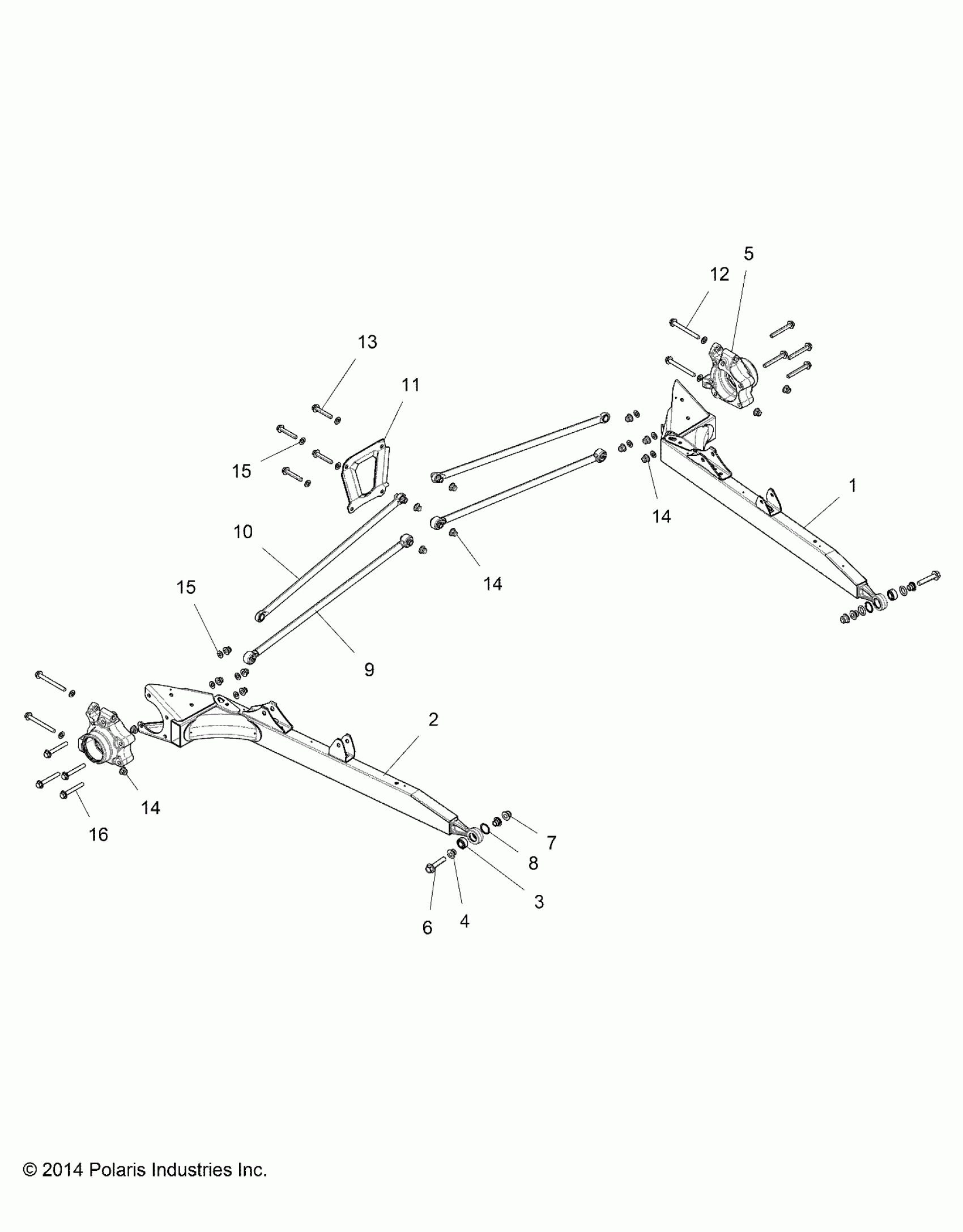

Polaris RZR XP 4 1000 - Z15VFE99AT/AV/AP SUSPENSION, REAR CONTROL ARMS - Z15VFE99AT/AV/AP (49RGRSUSPRR1510004) Diagram

#

Description
Price

1

ARM, TRAILING, LH, CLOUD SILVER

1019356-385

$393.89

2

ARM, TRAILING, RH, CLOUD SILVER

1019357-385

$393.89

3

BEARING, SPHERICAL

3514689

$39.99

4

BUSHING, REDUCER

5336751

$6.39

5

CARRIER, BEARING, WHEEL, LH

5138415

$203.99

5

CARRIER, BEARING, WHEEL, RH

5138416

$203.99

6

SCREW

7519138

$9.59

7

NUT, FLANGE, NYLOK

7547334

$4.79

8

RING, RETAINER

7710437

$3.19

9

ASM., RADIUS ROD, BOTTOM, CLOUD SILVER

1543204-385

$179.99

10

ASM., RADIUS ROD, CLOUD SILVER

1543377-385

$179.99

11

PLATE, REAR, BOLT BRACE, CLOUD SILVER

5259640-385

$79.99

12

SCREW

7519284

$3.99

13

SCREW

7519306

$5.59

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

WASHER

7556153

$1.99

15

WASHER

7556153

$1.99

16

SCREW

7519286

$7.19
