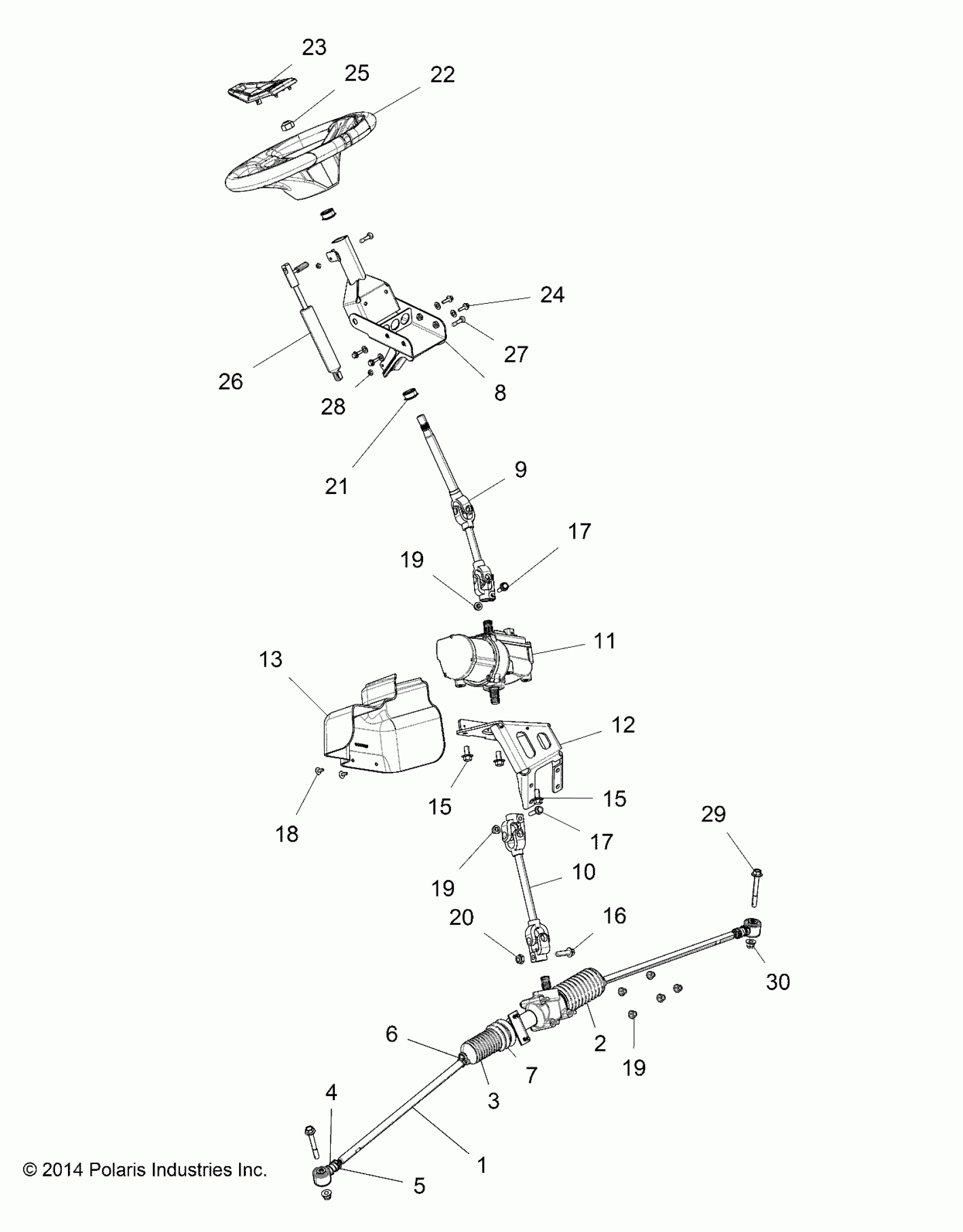

Polaris RZR XP 4 1000 - Z15VFE99AT/AV/AP STEERING, STEERING ASM. - Z15VFE99AT/AV (49RGRSTEERING1510004) Diagram

#

Description
Price

1

ASM., GEAR BOX, STEERING [INCL. 2-7]

1824205

$664.99

2

D.S. BELLOWS

5412012

$66.65

3

P.S. BELLOWS

5412013

$62.21

4

TIE ROD, OUTER

7061203

$48.56

5

NUT, JAM

2205058

$24.27

6

CLAMP, SMALL

7080978

$2.38

7

CLAMP, LARGE

7080979

$5.56

8

ASM., TILT, STEERING, RIVETED, BLACK

1824288-458

$189.99

9

SHAFT, STEERING, UPPER

1823891

$174.27

10

SHAFT, STEERING LOWER, EPS

1824012

$161.49

11

ASM., POWER STEERING

2411826

$2,399.99

12

MOUNT, EPS, BLACK

5257531-329

Unavailable

13

COVER, EPS

5438626

$36.41

14

PANEL, COVER, STEERING

5450771

Unavailable

15

BOLT

7518558

$3.97

16

SCREW

7518644

$4.76

17

SCREW

7519052

$1.59

17

SCREW

7519052

$1.59

18

SCREW

7519092

$1.19

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

20

NUT

7547385

$1.19

21

BUSHING-STEERING

7556675

$15.19

22

WHEEL, STEERING

1824014

$179.99

23

CAP, STEERING WHEEL, I. RED [AT]

5450255-293

$28.32

23

CAP, STEERING WEHEEL, VOODOO BLUE [AV]

5450255-619

Unavailable

24

BOLT

7518665

$13.49

25

NUT

7547506

$4.99

26

ASM-SHOCK,OIL LOCKING,MACH

7044098

$113.99

27

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$7.14

28

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

29

SCREW

7519854

$15.87

30

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59
