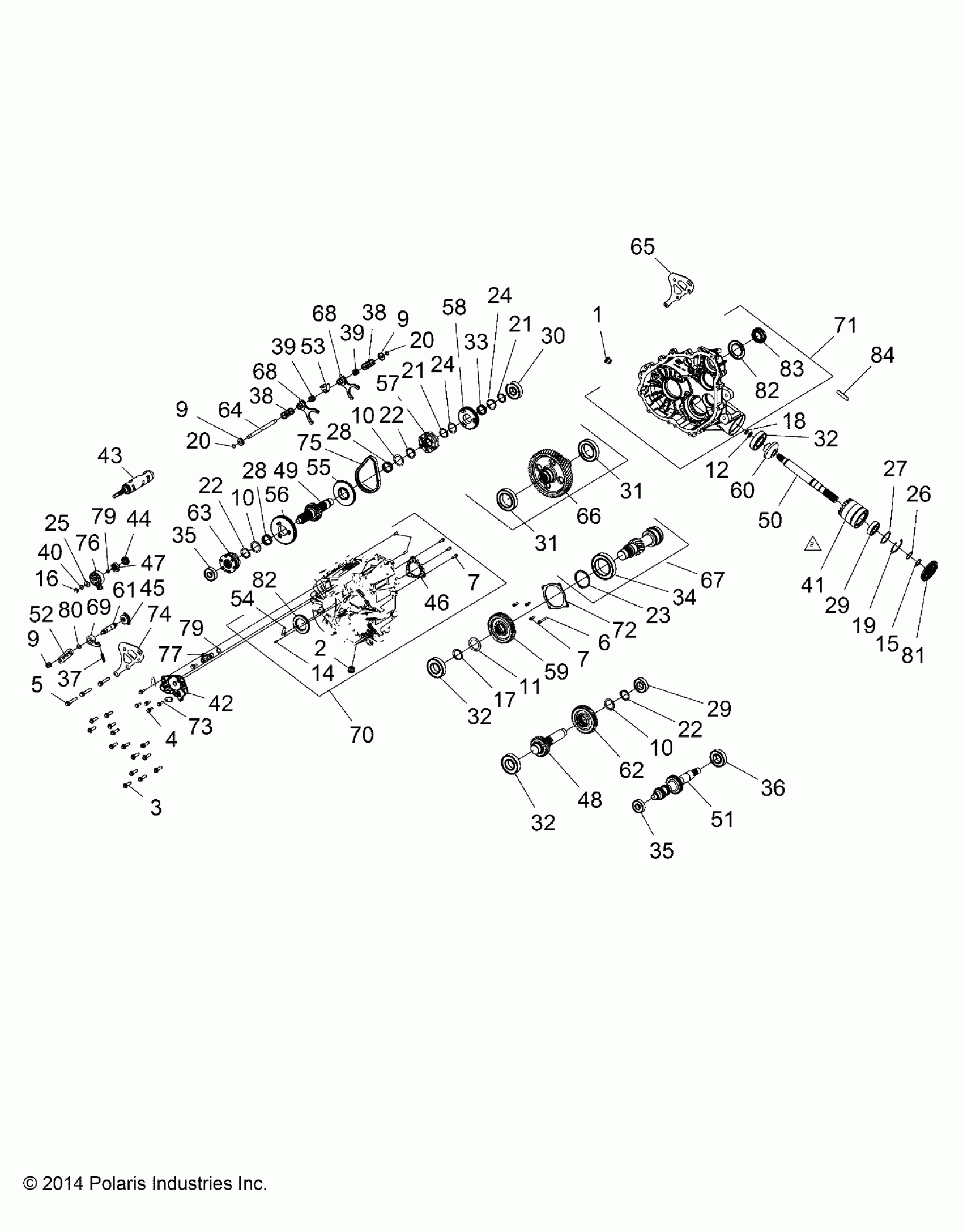

Polaris RZR XP 4 1000 - Z15VFE99AT/AV/AP DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z15VFE99AT/AV/AP (49RGRGEARCASE1510004) Diagram

#

Description
Price

-

O-RING

3234302

$7.27

-

PIN, DOWEL 6 X 20

3234330

$7.14

-

ASM., GEARCASE, COMPLETE

1333363

Unavailable

1

PLUG, M18 X 1.5

3234755

$27.78

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

4

SCREW, HEX FLANGE HEAD

3235206

$7.14

5

SCREW, HEX FLANGE

3235207

$10.32

6

SCREW, SOCKET HEAD, CAP

3235208

$11.11

7

SCREW, SOCKET HEAD, CAP

3235332

$3.97

7

SCREW, SOCKET HEAD, CAP

3235332

$3.97

8

NUT, LOCK HEX FLANGE, NYLON

3235210

$7.94

9

WASHER-CUP

3234091

$9.52

9

WASHER-CUP

3234091

$9.52

10

WASHER

3235211

$10.32

10

WASHER

3235211

$10.32

10

WASHER

3235211

$10.32

11

WASHER

3235212

$13.49

12

WASHER

3235213

$15.87

14

PIN, SPRING, SLOTTED

7043746

$8.08

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

16

RING, SNAP

3233834

$10.32

17

RING, RETAINING, SHAFT

3233364

$6.46

18

RING, RETAINING, EXTERNAL

3234318

$3.17

19

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

21

RING, RETAINING

3234205

$11.11

21

RING, RETAINING

3234205

$11.11

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING, RETAINING, VSH-237

3235216

$10.32

24

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

24

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

25

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

26

SHIM

3234272

$36.41

27

SHIM

3234273

$13.75

28

BEARING, NEEDLE

3233014

$43.65

28

BEARING, NEEDLE

3233014

$43.65

29

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

29

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

30

BEARING

3233020

$47.62

31

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

31

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

32

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

32

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

32

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

33

BEARING, NEEDLE

3233384

$31.75

34

BEARING, BALL

3235218

$59.52

35

BEARING, BALL

3234652

$15.87

35

BEARING, BALL

3234652

$15.87

36

BEARING, BALL

3235496

$37.99

37

SPRING, COMPRESSION

3233820

Unavailable

38

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

38

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

39

SPRING, COMPRESSION

3234089

$28.32

39

SPRING, COMPRESSION

3234089

$28.32

40

SPRING, WAVE

3235327

$9.52

41

TUBE, SNORKEL

3234278

$101.17

42

COVER, SECTOR GEARS

3234188

$113.32

43

DRUM-SHIFT,MACH.(255289)

3235463

$279.27

44

GEAR, SECTOR 16T

3233839

$36.41

45

GEAR-SECTOR,31T

3233832

$36.41

46

PLATE, PARK, 12-FACE

3235456

$40.46

47

DETENT STAR

3235603

$40.46

48

SHAFT, IDLER, 29T

3235223

$128.24

49

SHAFT-REVERSE,27T(285878)

3235380

$246.89

50

SHAFT, FRONT OUTPUT

3235394

$133.56

51

SHAFT, INPUT, SLEEVED

3235492

Unavailable

52

BELLCRANK, 92 DEGREE

3235227

$28.32

53

COLLAR-SHIFT

3234073

$31.75

54

TUBE, VENT

3234230

$10.51

55

SPROCKET, 48T, 6-FACE

3235231

$80.94

56

GEAR, LOW, 67T

3235232

$125.46

57

ENGAGEMENT DOG, 6-FACE

3235233

$129.51

58

GEAR, 53T

3235234

$99.74

59

GEAR, 46T STAGE 3

3235236

$128.24

60

GEAR, 13T SNORKEL

3235237

$156.74

61

SHAFT-SHIFT(352973)

3235238

$42.74

62

GEAR, 46T, STAGE 2

3235381

$156.74

63

SHIFT DOG, PARK

3235457

$145.70

64

RAIL, SHIFT SHAFT

3235542

$28.32

65

BRACKET, REAR MOUNT

3235558

$53.24

66

SUBASM., OUTPUT [INCL. BEARINGS]

3235335

$408.49

67

SUBASM.,SHAFT [INCL. BEARING, RETAINING RING]

3235336

$446.49

68

SUBASM., SHIFT FORK

3235454

$89.03

68

SUBASM., SHIFT FORK

3235454

$89.03

69

SUBASM.,, PAWL, DETENT, ROLLER

3235452

$36.41

70

SUBASM., RH CASE [INCL. ALL HARDWARE]

3235515

$669.99

71

SUBASM., LH CASE [INCL. ALL HARDWARE]

3235514

$669.99

72

COVER-BEARING,CNTR DR.

3235241

$48.56

73

BRACKET, WIRE HARNESS

3235350

$8.89

74

BRACKET, REAR MOUNT

3235559

$40.46

75

CHAIN,SIL 101,.25P X .40W X58L

3234737

$169.98

76

SWITCH, ROTARY , 2 PIN RESISTIVE

7661999

$117.37

77

SENSOR-SPEED,TRANS

4013908

$109.27

79

O-RING

3233836

$6.87

79

O-RING

3233836

$6.87

80

O-RING

3233828

$6.87

81

SEAL, TRIPLE LIP

3235658

$66.49

82

SEAL, TRIPLE LIP

3235052

$32.37

82

SEAL, TRIPLE LIP

3235052

$32.37

83

SEAL, TRIPLE LIP

3235495

$47.49

84

LABEL, TRANS

----

Unavailable
