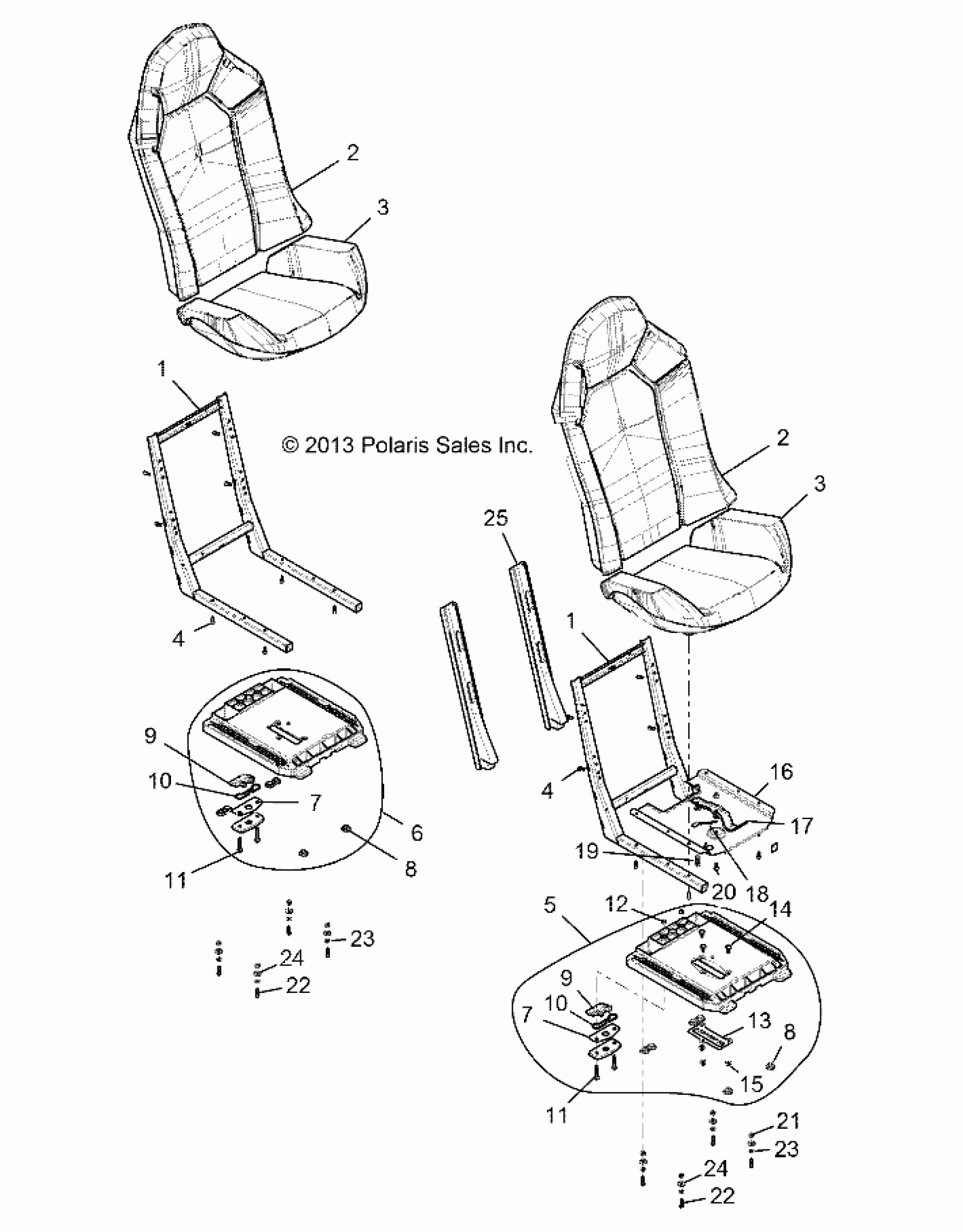

Polaris RZR XP 4 1000 - Z15VFE99AT/AV/AP BODY, SEAT ASM. AND SLIDER - Z15VFE99AT/AV/AP (49RGRSEAT1410004) Diagram

#

Description
Price

1

FRAME, SEAT

1019447

$215.99

1

FRAME, SEAT

1019447

$215.99

2

ASM., SEAT BACK, BLACK/SILVER

2686247

$409.49

2

ASM., SEAT BACK, BLACK/SILVER

2686247

$409.49

3

ASM., SEAT BOTTOM, BLACK/SILVER

2686248

Unavailable

3

ASM., SEAT BOTTOM, BLACK/SILVER

2686248

Unavailable

4

SCREW

7515177

$3.19

4

SCREW

7515177

$3.19

5

ASM., BASE, SEAT SLIDER [INCL. 6-14, QTY 6 OF 15]

2685704

$195.99

6

ASM., BASE, SEAT [INCL. 7-12]

2634889

$123.99

7

PLATE-LATCH,SEAT

5258647

$6.39

7

PLATE-LATCH,SEAT

5258647

$6.39

8

GROMMET, SEAT BASE

5413441

$3.99

8

GROMMET, SEAT BASE

5413441

$3.99

9

HANDLE-SEAT BASE LATCH

5437121

$4.84

9

HANDLE-SEAT BASE LATCH

5437121

$4.84

10

SPRING, LATCH, SEAT

7081466

$39.99

10

SPRING, LATCH, SEAT

7081466

$39.99

11

Screw

7517610

$1.59

11

Screw

7517610

$1.59

12

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

13

BRACKET, SEAT SLIDER ADJUSTMENT PLATE

5257975

Unavailable

14

BOLT, CARRIAGE

7518994

$3.22

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

16

BRACKET, SEAT SLIDER MOUNTING PLATE

5257974

$63.99

17

BRACKET, SEAT SLIDER LEVER

5260101

Unavailable

18

SPRING

7044099

$5.59

19

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$7.19

20

BOLT, SHOULDER

7518897

$1.59

21

TUBE, SPACER

5337939

Unavailable

22

SCREW

7519296

$1.59

22

SCREW

7519296

$1.59

23

WASHER, SPRING LOCK

7552801

$1.59

23

WASHER, SPRING LOCK

7552801

$1.59

24

Washer, Flat

7555859

$1.49

24

Washer, Flat

7555859

$1.49

25

PAD, SEAT BASE

5814087

Unavailable
