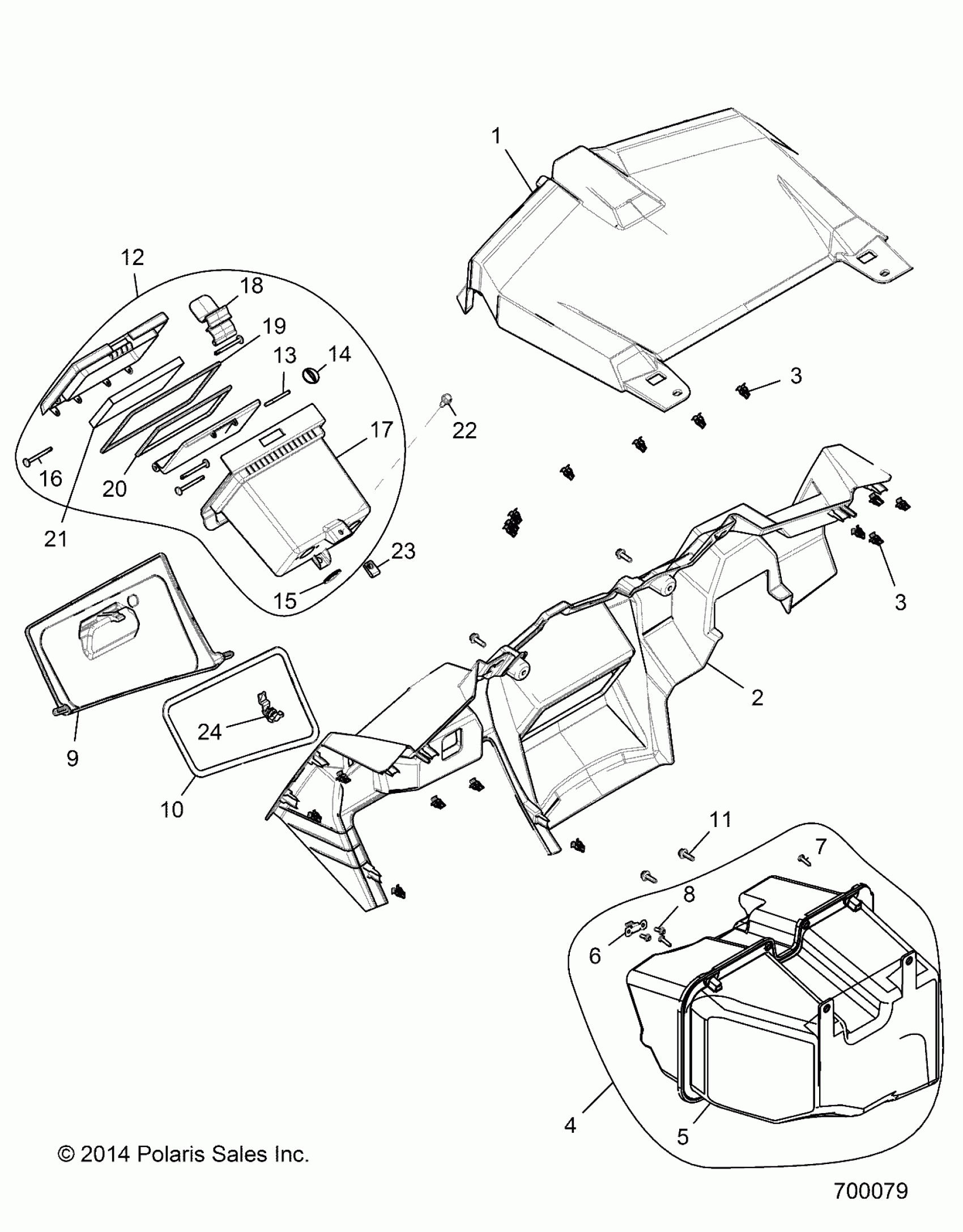

Polaris RZR XP 4 1000 - Z15VFE99AT/AV/AP BODY, DASH AND GLOVEBOX - Z15VFE99AT/AV/AP (700079) Diagram

#

Description
Price

1

ASM., UPPER IP, BLACK [INCL. QTY 7 OF REF. 3]

2634956-070

$127.99

2

ASM., LOWER IP, WARNING DECAL, MP, BLACK [INCL. WARNING DECALS] [INCL. QTY 10 OF REF. 3]

2635657-070

$499.19

3

CLIP-DASH,TRIM,METAL

7519806

$3.99

3

CLIP-DASH,TRIM,METAL

7519806

$3.99

4

ASM., GLOVE BOX [INCL. 5-8]

2635460

$83.99

5

GLOVEBOX, BLACK

5439796-070

Unavailable

6

BRACKET, GLOVEBOX, LATCH

5259660

$5.59

7

SCREW

7512026

$1.49

8

SCREW

7518641

$3.19

9

DOOR, GLOVEBOX, TPO, BLACK

5451897-070

$51.99

10

SEAL, GLOVEBOX

5415208

$11.99

11

SCREW

7519342

$1.86

12

ASM., DOUBLE DIN [INCL. 13-21]

2635161

$135.99

13

PIN, HINGE

5451236

$7.91

14

PLUG-COMPARTMENT

5412981

Unavailable

15

GROMMET, ELEC, LED

5414942

$3.99

16

PIN-HINGE,GLOVEBOX

5439091

$3.99

17

PANEL, DOUBLE DIN, BLACK

5439789-070

$27.99

18

LATCH, LID, DIN

5450654

$7.99

19

SEAL, DIN, OUTER

5522021

$23.99

20

SEAL, DIN, INNER

5522022

$23.99

21

FOAM, DOUBLE DIN

5814055

$48.39

22

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

23

NUT, U-TYPE

7547674

$1.49
