Description

Price

1

WELD-MAIN FRAME,BLK

1025501-458

$4,813.59

2

SKID PLATE-MID,MP,BLK [TO 2/7/2025]

5457337-070

$239.99

2

SKID PLATE-MID,MP,BLK [FROM 2/7/2025]

5466371-070

Unavailable

3

SKID PLATE-FRONT,MP,BLK [TO 6/3/2024]

5459855-070

$103.99

3

PLATE-SKID,FRONT,MP,BLK [FROM 6/3/2024]

5466531-070

$103.99

4

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

4

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

5

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

6

PLATE-SKID,REAR,BLK

5458920-070

$159.99

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

8

WASHER-SKID PLATE

7556065

$4.79

9

WELD-SEAT BASE,FRT,MP,BLK

1026957-329

$183.99

10

BRKT-SEAT SUPPORT,FRT,MP,ECOAT

1026483-329

$63.99

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

12

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.99

13

BRKT-CLOSE OFF SUPPORT,ECOAT

5272355-329

$91.99

14

COVER-SCM,LH,BLK

5457593-070

$35.99

15

COVER-TANK,RH,BLK

5457594-070

$31.99

16

WELD-SEAT BASE,REAR,MP,BLK

1026958-329

$211.99

17

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

18

BRKT-SEAT,MNT,REAR

5273157

$35.99

19

WELD-BOLSTER,LH,REAR,BLK

1026695-458

$101.19

20

WELD-BOLSTER,RH,REAR,BLK

1026696-458

$101.19

21

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

22

SCR-HXFL-M10X1.25X55 10.9 RIE

7519956

$2.39

23

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

24

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

25

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

26

SCR-HXFL-M12X1.75X9010.9 ZFB [FROM 9/23/2024]

7521334-90

$2.39

26

SCR-SHXFL-M12X1.75X90 10.9 ZPC [TO 9/23/2024]

7518705

$8.79

27

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.79

28

ASM-TOW STRAP

2691649

$19.99

29

WELD-FRONT PLATE,BLK [TO 08/09/2024]

1026392-458

$83.99

29

WELD-FRONT PLATE,BLK [FROM 8/9/2024]

1029073-458

$83.99

30

SCR-M10X1.5X25 8.8 HXFL ZOD

7519071

$4.79

31

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

31

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

32

SCR-M10X1.5X65 8.8 HX/FL ZOD

7518960

$3.19

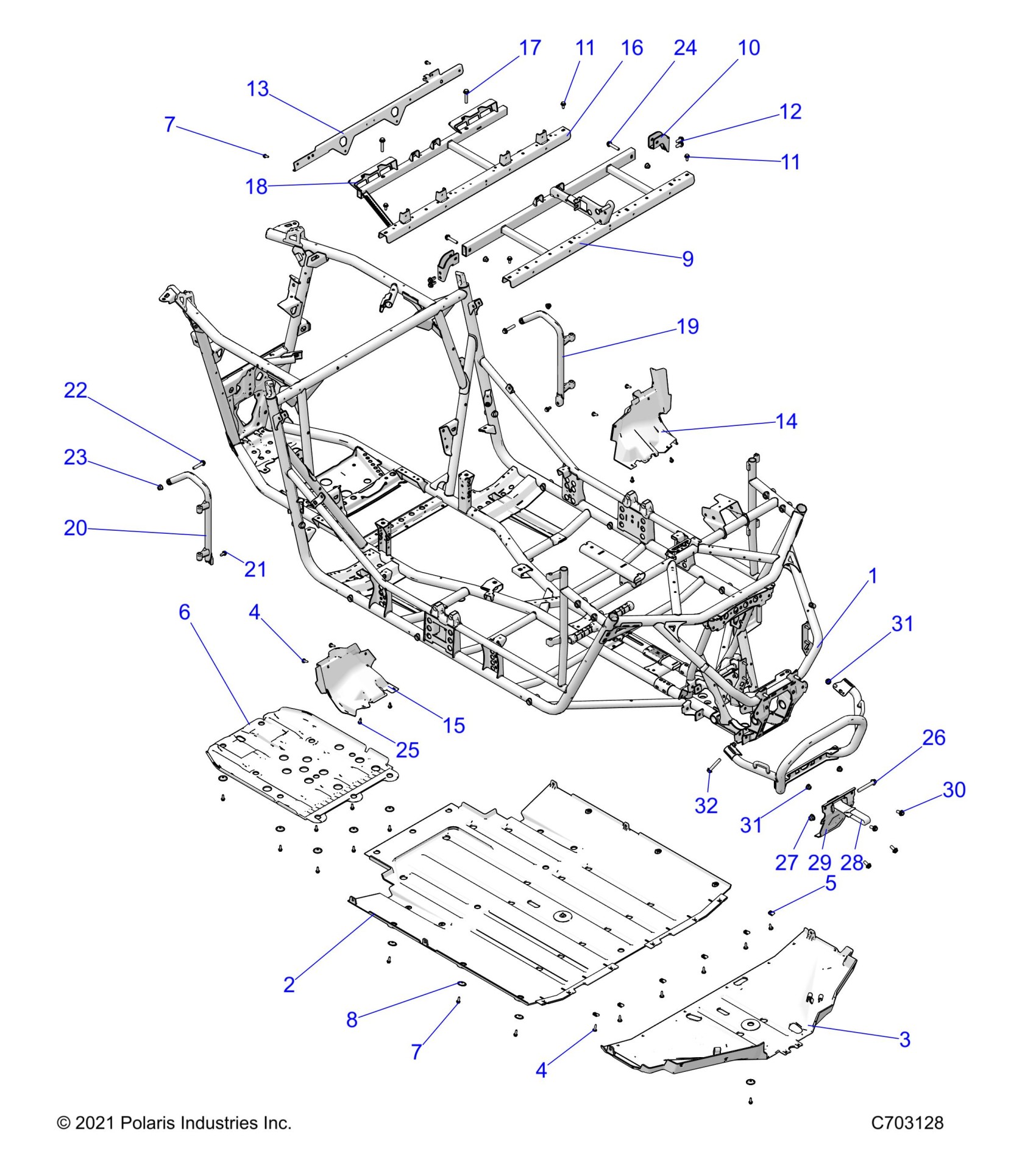

Polaris RZR XP 4 1000 ULTIMATE (R02) - Z25NMF99A4/A5/B4/B5 CHASSIS, MAIN FRAME AND SKID PLATES - Z25NMF99A4/A5/B4/B5 (C703128) Diagram

WELD-MAIN FRAME,BLK

SKID PLATE-MID,MP,BLK [TO 2/7/2025]

SKID PLATE-MID,MP,BLK [FROM 2/7/2025]

SKID PLATE-FRONT,MP,BLK [TO 6/3/2024]

PLATE-SKID,FRONT,MP,BLK [FROM 6/3/2024]

SCR-TXTH-M6X1.0X25 ZFB

SCR-TXTH-M6X1.0X25 ZFB

NUT-M6-1.0, U-TYPE (2.5-3.8)

PLATE-SKID,REAR,BLK

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

WASHER-SKID PLATE

WELD-SEAT BASE,FRT,MP,BLK

BRKT-SEAT SUPPORT,FRT,MP,ECOAT

SCR-TFHFL-M8X1.25X20 CHS ZOD

SCR-TFHFL-M8X1.25X20 CHS ZOD

SCR-M10X1.5X25-8.8 HFS ZOD

BRKT-CLOSE OFF SUPPORT,ECOAT

COVER-SCM,LH,BLK

COVER-TANK,RH,BLK

WELD-SEAT BASE,REAR,MP,BLK

SCR-HXFL-M10X1.5X55 8.8 ZY3

BRKT-SEAT,MNT,REAR

WELD-BOLSTER,LH,REAR,BLK

WELD-BOLSTER,RH,REAR,BLK

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

SCR-HXFL-M10X1.25X55 10.9 RIE

NUT-HXFL M10X1.25 8 ZTB NYL

SCR-HXFL-M10X1.25X55 10.9 ZOD

RIVET-TUFLOK,.315-.325X.787

SCR-HXFL-M12X1.75X9010.9 ZFB [FROM 9/23/2024]

SCR-SHXFL-M12X1.75X90 10.9 ZPC [TO 9/23/2024]

NUT-HXFL M12X1.75 8 ZOD NYL

ASM-TOW STRAP

WELD-FRONT PLATE,BLK [TO 08/09/2024]

WELD-FRONT PLATE,BLK [FROM 8/9/2024]

SCR-M10X1.5X25 8.8 HXFL ZOD

NUT-M10X1.5 HFN NYLOC ZOD

NUT-M10X1.5 HFN NYLOC ZOD

SCR-M10X1.5X65 8.8 HX/FL ZOD
