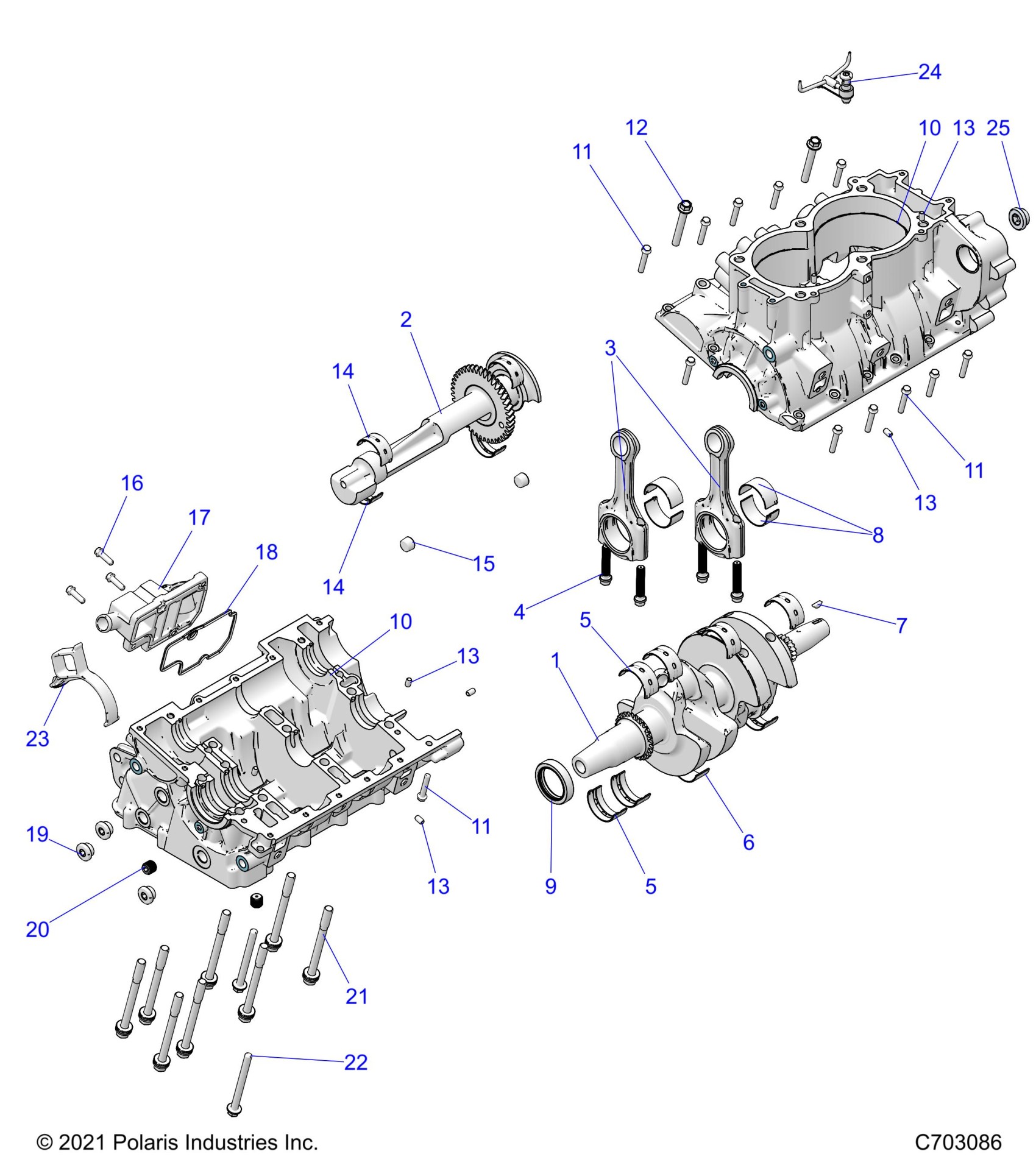

Polaris RZR XP 4 1000 ULTIMATE (R01) - Z26NMT99A4/B4/A6/B6 ENGINE, CRANKCASE AND CRANKSHAFT - Z26NMT99A4/B4/A6 (C703086) Diagram

#

Description
Price

1

ASM-CRANKSHAFT [TO 3/1/2023]

3024018

Unavailable

1

ASM-CRANKSHAFT [FROM 3/1/2023]

3024057

$1,060.39

2

ASM-BALANCE SHAFT

1204835

$343.99

3

ASM-CONNECTING ROD,CLN [INCL. 4][TO 6/28/2023]

3023077

$194.99

3

ASM-CONNECTING ROD [INCL. 4][FROM 6/28/2023]

3024355

$155.99

4

SCR-ROD,MJ9X1X40-4H6H,12.9 [TO 6/28/2023]

7520378

$5.59

4

BOLT-CONROD MJ9X1.0X44 [FROM 6/28/2023]

7520356

$23.99

5

BEARING-MAIN,G-90,41MM

3515160-001

$9.59

5

BEARING, MAIN, BLUE

3515160-002

$9.59

5

BEARING, MAIN, GREEN

3515160-003

$9.59

5

BEARING, MAIN, YELLOW

3515160-004

$9.59

5

BEARING, MAIN, RED

3515160-005

$9.59

5

BEARING-MAIN,G-90,41MM

3515160-001

$9.59

5

BEARING, MAIN, BLUE

3515160-002

$9.59

5

BEARING, MAIN, GREEN

3515160-003

$9.59

5

BEARING, MAIN, YELLOW

3515160-004

$9.59

5

BEARING, MAIN, RED

3515160-005

$9.59

6

BEARING-MAIN LRW, BLUE

3515161-002

$10.39

6

BEARING-MAIN LRW, GREEN

3515161-003

$10.39

6

BEARING-MAIN LRW, YELLOW

3515161-004

$10.39

7

KEY-WOODRUFF,4X5

7721122

$7.84

8

BEARING, CONNECTING ROD, WHITE

3515159-001

$8.79

8

BEARING, CONNECTING ROD, BLUE

3515159-002

$8.79

8

BEARING, CONNECTING ROD, GREEN

3515159-003

$8.79

8

BEARING, CONNECTING ROD, YELLOW

3515159-004

$8.79

9

SEAL-CRANKSHAFT

3610284

$32.37

10

K-Crankcase

-------

Unavailable

10

K-Crankcase

-------

Unavailable

11

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$3.99

11

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$3.99

11

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$3.99

12

SCR-HXFLG,M8X1.25X60

7519186

$6.53

13

PIN-DOWEL,M6X10

5143560

$9.59

13

PIN-DOWEL,M6X10

5143560

$9.59

13

PIN-DOWEL,M6X10

5143560

$9.59

13

PIN-DOWEL,M6X10

5143560

$9.59

14

BEARING-BAL SHAFT,38X41X17.5

3514756

$9.59

14

BEARING-BAL SHAFT,38X41X17.5

3514756

$9.59

15

PLUG-3/8 NPT,HX/SOC W/SEALANT

7052413

$3.99

16

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

17

COVER-BREATHER,MACH

5143720

$43.56

18

SEAL-COVER,BREATHER

5813759

$27.99

19

PLUG-HEX SCKT,W/O-RING,M16X1.5

7052642

$7.91

20

PLUG-HEX SOCKET,1/4X18,SEALANT

7518835

$5.59

21

SCR-HXFL,M10X1.25X113MM 10.9

7527904

$23.99

22

SCR-HXFLG,M8X1.25X90

7519154

$7.19

23

DIVERTER, OIL DRAIN

5455583

$12.79

24

JET, PISTON

3022856

$48.40

25

PLUG-HEX SCKT,W/O-RING,M20X1.5

7052643

$7.99
