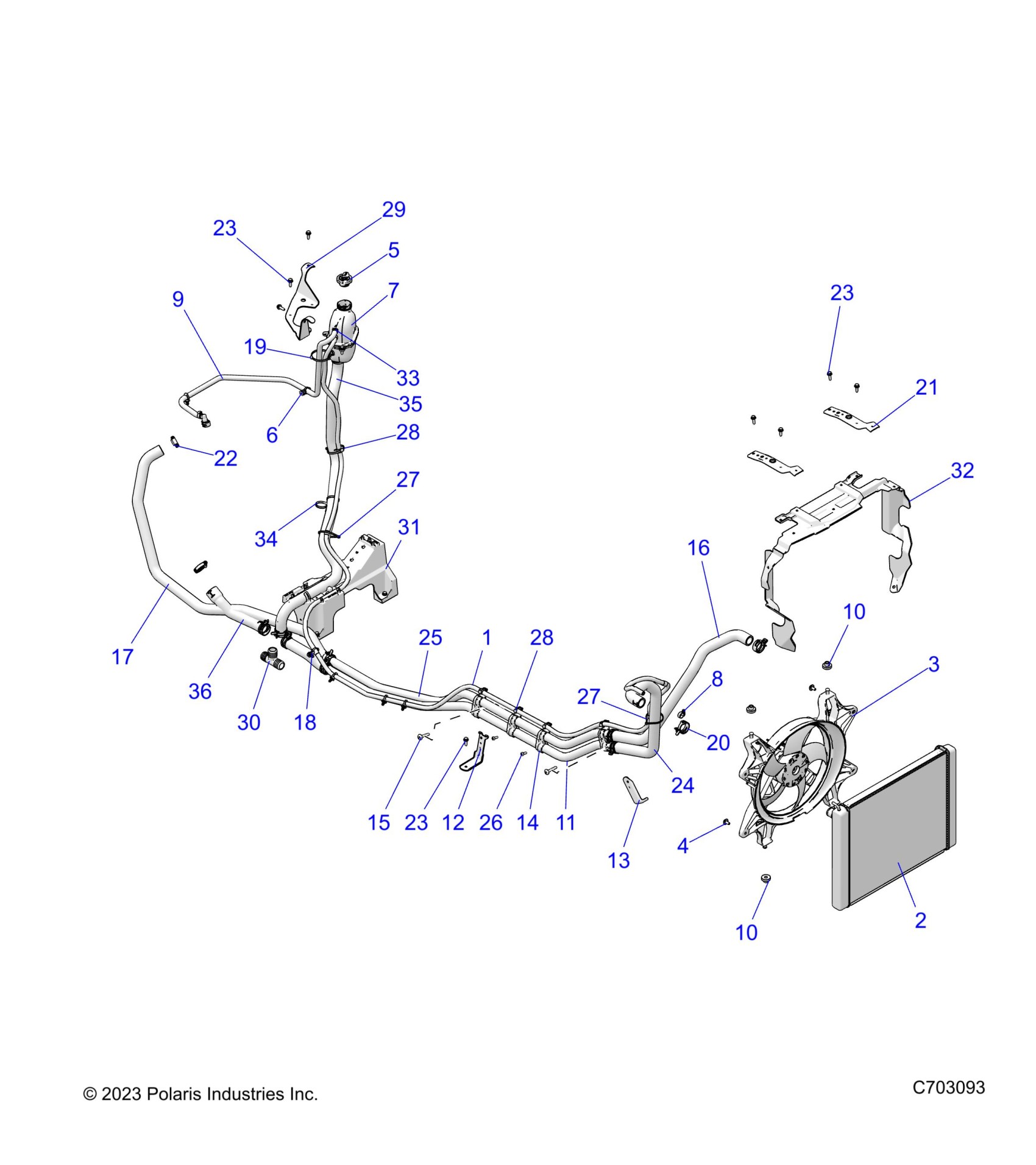

Polaris RZR XP 4 1000 SPORT (R02) - Z25NME99A4/A5/B4/B5 ENGINE, COOLING SYSTEM - Z25NME99A4/A5/B4/B5 (C703093) Diagram

#

Description
Price

1

ASM-HOSE,VENT,RAD TO BTL,MP

2522461

$56.65

2

ASM-RADIATOR,CORE

1244681

$589.99

3

FAN-RADIATOR,ASM

2416113

$304.98

4

BOLT, M6X15MM

7519585

$9.52

5

CAP-PRESSURE

1241379

$36.41

6

CLIP, EDGE, HARNESS

7081890

$10.32

7

ASM-TANK,SURGE

1244655

$97.13

8

CLAMP, HOSE, S.S.(10)

7080476

$6.35

9

ASM-VENT,COOLANT,HEAD TO BTL

1244637

$40.46

10

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.35

10

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.35

11

TUBE-COOLANT,1",MP

5141785

$54.99

12

BRACKET, COOLANT TUBE, BLACK

5259433-329

$34.99

13

BRACKET, COOLANT TUBE, BLACK

5260766-329

$34.99

14

BRACKET-COOLANT TUBE

5451221

$8.89

15

SCR-TXTH-M6X1.0X50, 8.8, ZPB

7519001

$3.97

16

HOSE, UPPER, RADIATOR

5417405

$48.56

17

HOSE, ENGINE OUTLET, REAR

5414530

$76.89

18

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17

19

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

20

SPRINGBAND-CLAMP,BLK

7082308

$5.56

21

BRKT-RAD UPR MNT,ECOAT

5269701-329

$44.99

22

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

23

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

23

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

23

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

24

HOSE, LOWER, RADIATOR, LONG

5417406

$48.56

25

TUBE-COOLANT,1",MP

5141784

$54.99

26

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

28

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

29

BRKT-COOLANT BTL,VNT HEAD,BLK

5268906-329

$64.99

30

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.32

31

ROUTING TRAY,REAR,BLK

5459724-070

$28.32

32

SHROUD-RADIATOR,BLK

5457345-070

$74.99

33

CLAMP-HOSE, 17/32, GREEN

7081432

$3.97

34

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

35

HOSE-COOLANT BOTTLE,RETURN

5417261

$62.92

36

HOSE-ENG INLET,REAR

5417249

$32.37
