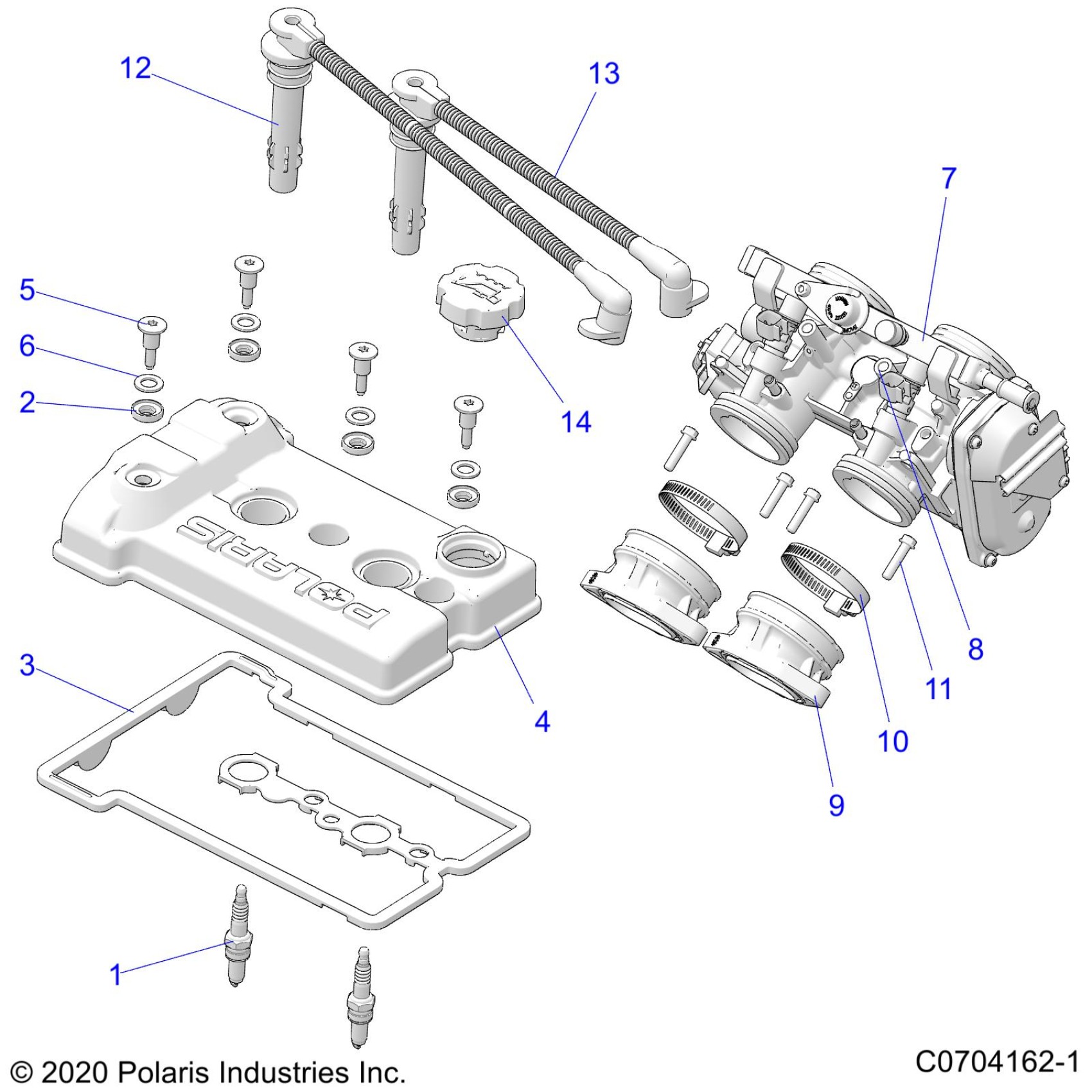

Polaris RZR XP 4 1000 SPORT (R02) - Z23N4E99AL/99BL ENGINE, THROTTLE BODY AND VALVE COVER - Z23N4E99A/99B (C0704162-1) Diagram

SPARK PLUG-10 MM

3022662

$10.46

ISOLATOR-VALVE COVER

5413806

$7.27

SEAL-VALVE COVER,2CY,DOHC

5415011

$51.99

COVER-VALVE,CAST,2CYL,DOHC

5634650

$111.10

SCREW-TXPH-M6X1.0X14 8.8 A2K SHB

7519165

$13.59

WASHER-GROUNDING

7556750

$3.99

SENSOR-TMAP DSS3-TF

2411528

$93.08

BOLT, FUEL RAIL

3131716

$4.79

CLIP-INJECTOR

3131725

$10.39

SCR-SENSOR TMAP

3131753

$3.99

ASM-THROTTLE BODY,DUAL ETC [INCL. CLIP,8][STD]

1205675

$928.19

RAIL-FUEL 999SRV

2521878

$227.99

ASM-THROTTLE BODY,DUALETC,EVAP [INCL. CLIP,8][EVAP]

1205676

Unavailable

INJ., EV 14 COMP, EXT [INCL. O-RING]

2521387

$115.99

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

O-RING GREEN, LOWER

5415066

$11.32

ASM., THROTTLE BODY ADAPTER

1205302

$49.99

CLAMP, BAND, NARROW

7080413

$3.19

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

WIRE, SPARK PLUG, MAG

4017694

$68.79

WIRE, SPARK PLUG, PTO

4017695

$68.79

ASM-OIL FILL CAP [INCL. O-RING]

1205012

$35.99

O-RING-FILL CAP

5414362

$3.59
