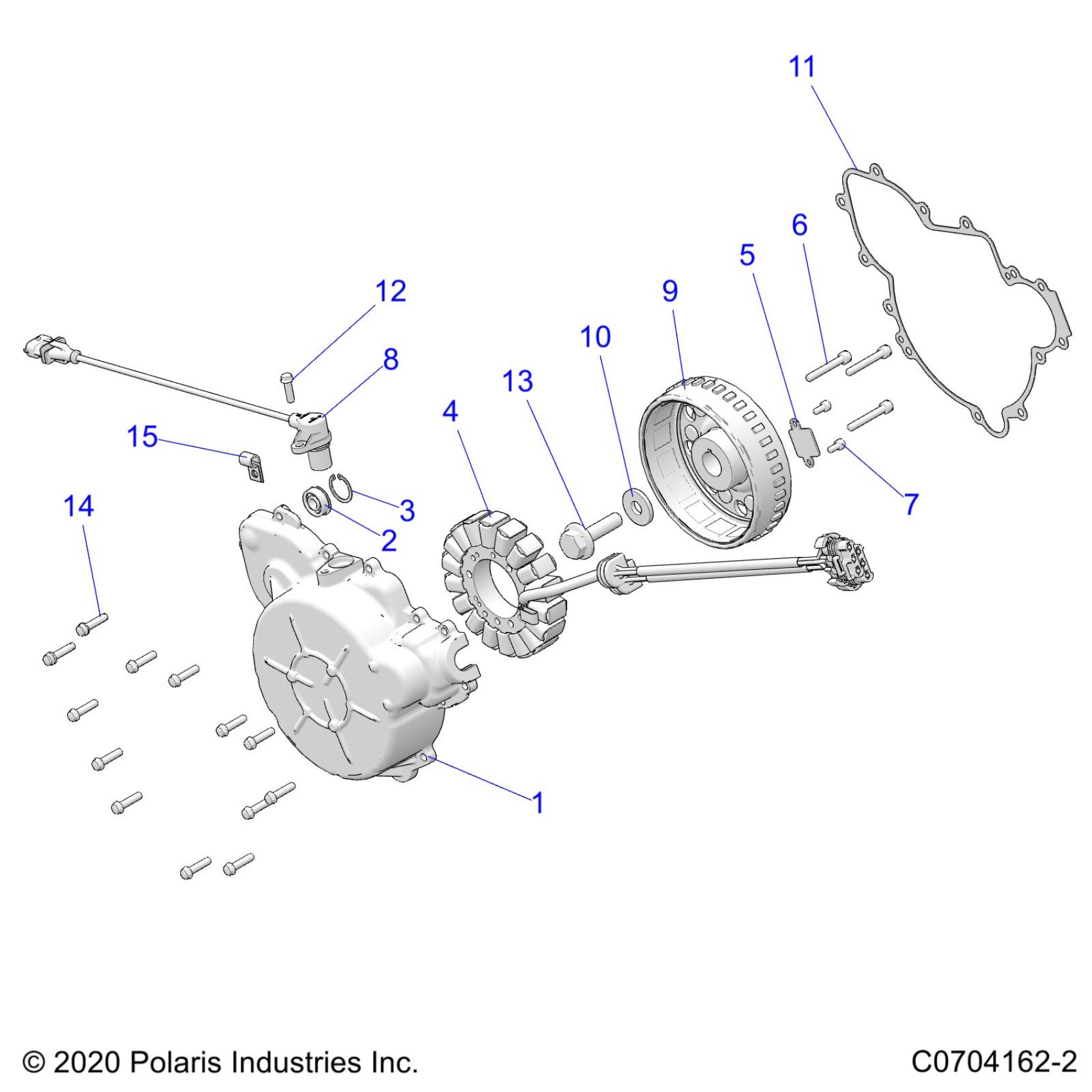

Polaris RZR XP 4 1000 SPORT (R02) - Z23N4E99AL/99BL ENGINE, STATOR AND FLYWHEEL - Z23N4E99A/99B (C0704162-2) Diagram

#

Description

Price

1

ASM-IGN COVER,STARTER BRG [INCL. 2,3]

1206299

$159.75

2

BEARING-BALL,9X24X7

3514717

$8.79

3

RING-SNAP,DIN472,24X1.2MM

7710654

$23.99

4

STATOR

4015340

$263.99

5

BRACKET, RETAINER, WIRE

5255473

$7.19

6

SCR-M6X1.0X40,HX/SOC/CP-Y/D

7510005

$5.70

7

SCREW-M5X0.8X10 SOC/CP-D

7517847

$3.19

8

SENSOR, CRANK POSITION [INCL. 10]

2411719

$101.17

9

FLYWHEEL

4013969

$503.09

10

WSHR-32X12X4,HARD

7556885

$5.59

11

GASKET, COVER, IGNITION

5814160

$39.99

12

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

13

SCREW-HXFL-M12X1.25X43 12.9

7520178

$27.99

14

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

15

CLAMP-HOSE,.312DIA,VINYL COAT

7080683

$2.39
