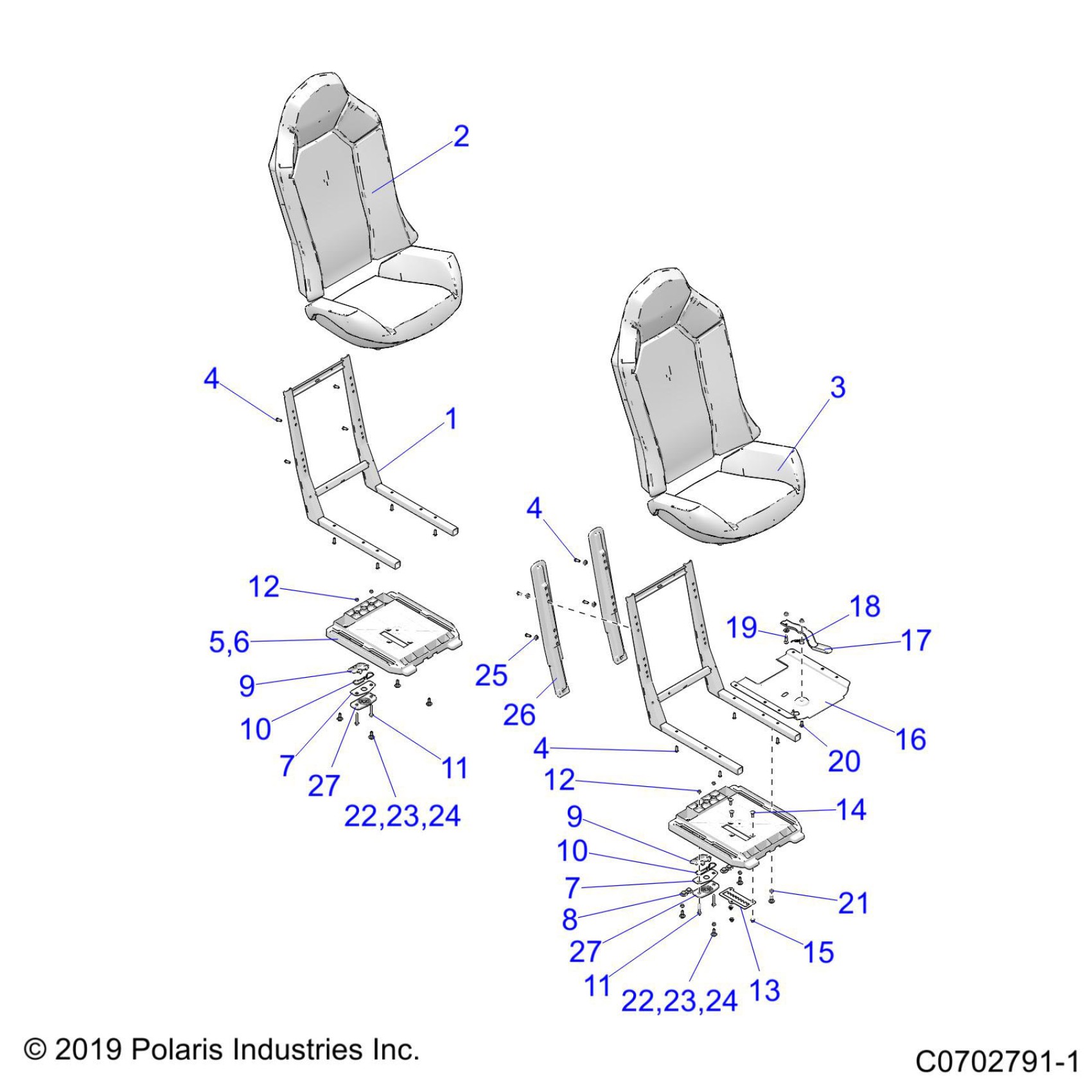

Polaris RZR XP 4 1000 SPORT (R02) - Z23N4E99AL/99BL BODY, SEAT ASM. AND SLIDER - Z23N4E99A/99B (C0702791-1) Diagram

#

Description
Price

1

WELD-FRAME, SEAT

1021289

$67.99

2

ASM-SEAT,BACK,TTM/BLK,GR ST

2692004

$395.99

3

ASM-SEAT BTM,TTM/BLK,GR ST

2692006

$395.99

4

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.19

4

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.19

4

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.19

5

ASM., BASE, SEAT [INCL. 6-12, 27]

2634889

$123.99

5

ASM., BASE, SEAT SLIDER [INCL. 6-15, 27]

2685704

$195.99

6

SEAT, BASE

5450170

$42.06

7

PLATE-LATCH,SEAT

5258647

$6.39

7

PLATE-LATCH,SEAT

5258647

$6.39

8

GROMMET, SEAT, BASE

5413441

$3.99

9

HANDLE-SEAT BASE LATCH

5437121

$4.84

9

HANDLE-SEAT BASE LATCH

5437121

$4.84

10

SPRING-LATCH,SEAT

7082653

$33.43

10

SPRING-LATCH,SEAT

7082653

$33.43

11

SCREW-M6X1.00X40-HX/FL-YD

7517610

$1.59

11

SCREW-M6X1.00X40-HX/FL-YD

7517610

$1.59

12

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

12

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

13

BRACKET, SEAT, SLIDER, ADJUSTABLE PLATE

5270634

$14.39

14

SCR-RHCARM6X1.0X20 8.8 ZOD

7518994

$3.22

15

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

16

BRACKET, SEAT SLIDER MOUNTING PLATE

5261437

$59.99

17

BRACKET, SEAT SLIDER LEVER

5260733

$27.99

18

SPRING

7044099

$5.59

19

SCR-SH-M6X1.0X9.5 12.9 ZY3

7518786

$2.39

20

BOLT, SHOULDER

7518897

$1.59

21

TUBE, SPACER

5340145

$4.79

22

SCR-1/4-20X1-BH-TRX-GR5-Z

7519296

$1.59

22

SCR-1/4-20X1-BH-TRX-GR5-Z

7519296

$1.59

23

WASHER-1/4 SPRING LOCK-Y

7552801

$1.59

23

WASHER-1/4 SPRING LOCK-Y

7552801

$1.59

24

WASHER-FL .281X.750X.062-Y

7555859

$1.49

24

WASHER-FL .281X.750X.062-Y

7555859

$1.49

25

PAD-SEAT BASE,RZR,MP

5415501-070

$35.99

26

SLEEVE-SHLD,15.5OD,10 OD,6.5ID

5140211

$3.99

27

LATCH, COVER PLATE, BLACK

5450510-070

$4.79

27

LATCH, COVER PLATE, BLACK

5450510-070

$4.79
