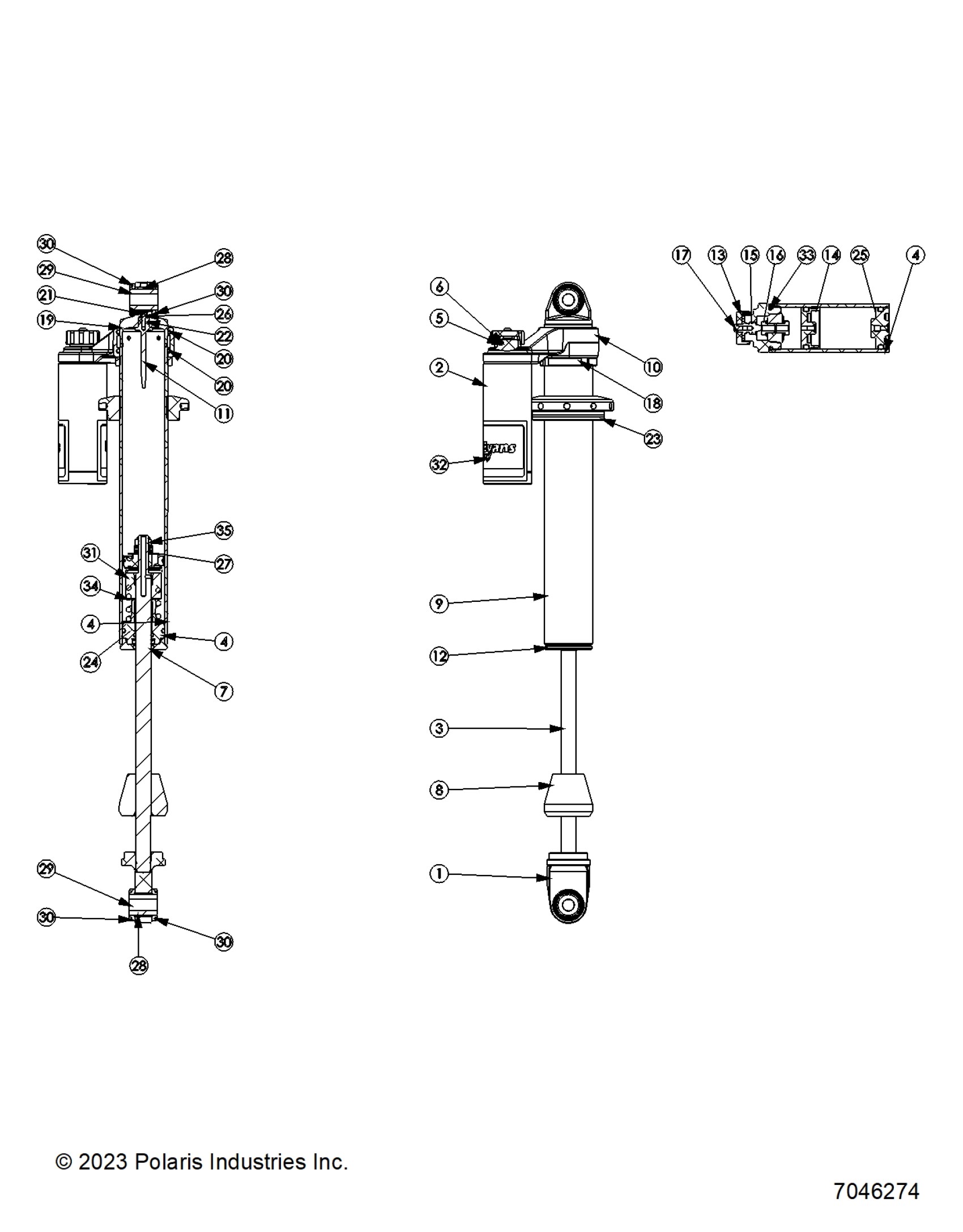

Polaris RZR XP 4 1000 SPORT (R01) - Z26NMS99A4/A6 SUSPENSION, FRONT SHOCK INTERNALS - Z26NMS99A4/A6 (7046274) Diagram

#

Description
Price

-

SHOCK-FRONT,MP,LH [INCLUDES 1-35]

7046274

Unavailable

-

SHOCK-FRONT,MP,RH [INCLUDES 1-35]

7046275

Unavailable

1

SHAFTLOOP .625THD 2.18"L 1" BORE

1801269

Unavailable

2

RES BODY, 2.0", 5.0L, WIRE RING

-------

Unavailable

3

NEEDLE SHAFT, .625 X 13.500L

-------

Unavailable

4

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

4

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

4

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

5

BALL, DETENT 3/16"

1800127

$6.39

6

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

7

WIPER, 5/8" D/TYPE- BLK

1800034

$31.99

8

BUMP STOP, 64g - (ISC-140224)

-------

Unavailable

9

BODY, 2.0 IMP EXT, VS, CO

-------

Unavailable

10

BRIDGE, WIDE 2.0 WER ADJUSTER (CLEAR)

1800921

$137.93

10

BRIDGE, WIDE 2.0 WER ADJUSTER (CLEAR)

1800921

$137.93

11

NEEDLE-1PC PRESS IN 1620008

-------

Unavailable

12

CAP, WIPER 2.0 PRESS IN (CLEAR ANODIZE)

1800794

$49.99

13

KNOB,CLICKER BLK (1000604)

1800418

$89.03

14

IFP PISTON ASM I. 750, W-BLEED

-------

Unavailable

15

ASM-CLICKER STUD 404613

1800758

$29.99

16

ASM. CLICKER PISTON

-------

Unavailable

17

SCREW, 10X5/8 BTN SS (500603)

1800357

$3.19

18

JAMB NUT, 2.0IN ACME (CLEAR)

1800868

$43.99

19

RING-RETAINING 1520119

1800862

$6.39

20

O-RING, 2-226 1600018

1800863

$4.79

20

O-RING, 2-226 1600018

1800863

$4.79

21

#8-32 X .500 LOW HEAD SCREW

1800843

$4.79

22

O-RING, 2-108 1600026

1800864

$4.79

23

SPRING NUT-2" CLEAR 1620014-AC

1800865

$39.99

24

SEAL HEAD ASM. 2.0 X .625,HNBR

-------

Unavailable

25

2.0 END CAP ASM,WR,PORT

1801044

$84.99

26

5MM ID X 2MM THK. O-RING

1800891

$1.59

27

ASM-PISTON,2",7046274

-------

Unavailable

28

SHAFT BUSHING, .875

1800643

$37.11

29

AXLE.875 X 1.181 X 12MM

-------

Unavailable

30

PIVOT SEAL

1801040

Unavailable

30

PIVOT SEAL

1801040

Unavailable

31

SHAFT SPACER, .625ID X 1.062L

-------

Unavailable

32

DECAL-SHOCK,7046275

-------

Unavailable

33

O-RING BODY LOOP

1800030

$2.02

34

SHIM, 5/8x .015 x 1.450

-------

Unavailable

35

NUT-FLEX-TOP LOCK 7/16

1801000

$7.99
