Description

Price

1

SHOCK, REAR [INCL. ALL]

7044598

$721.86

2

BEARING, SPHR COM9T-500, 1.093 UTV

1800592

$59.99

2

BEARING, SPHR COM9T-500, 1.093 UTV

1800592

$59.99

3

2.5IN SPRING NUT (HARD BLACK)

1800715

$104.99

4

PISTON, 2.5IN HI FLOW (HRP 44-033)

1800716

$167.19

5

7/16 Ny Lock nut

1800638

$4.79

6

2.5in END CAP SV (Clear)

1800552

$119.99

7

RES, PISTON 2.5IN ASM

1800752

$164.59

8

1.25 BUMP STOP LG

1800201

Unavailable

9

O-RING

1800613

$10.39

10

7/8IN CHROME NEEDLE SHAFT

1800713

$139.99

11

ASM. SEAL HEAD 2.5", .875 SHAFT CLR

1800753

$79.99

12

SPACER 2.037L

1800657

$27.99

13

SPRING CLIP

1501007

$79.99

14

BAND, WEAR 2.125

1800509

$55.99

15

O-RING

1800500

$1.99

15

O-RING

1800500

$1.99

16

O-RING 2-327

1800508

$5.59

17

2.5IN9.5L PB RES CAN

1800633

Unavailable

17

2.5IN9.5L PB RES CAN

1800633

Unavailable

17

2.5IN9.5L PB RES CAN

1800633

Unavailable

18

SCHRAEDER VALVE

1800021

$43.99

19

2.125 ID BORE SNAP RING

1800507

$10.39

20

SCREW, HEAD 10/32 BTN

1800357

$3.19

21

O-RING

1800503

$1.59

22

SHIM, 7/16" .015 X .600

1800639

$13.59

23

RING- RETAIN (SNAP)

1800482

$10.39

23

RING- RETAIN (SNAP)

1800482

$10.39

24

2.5IN PB BRIDGE (CLEAR)

1800550

$190.95

25

2.5 RES MOUNT

1800488

$83.99

26

2.5IN CO PB AL BODY

1800714

$195.51

27

2.5 PB LOCK NUT (CLEAR)

1800551

$83.99

28

O-RING 2-230

1800497

$5.59

29

O-RING 2-232

1800499

$1.59

30

O-RING 2-229

1800498

$1.99

31

O-RING, 2-134

1800502

$1.99

32

O-RING 2-031 VITON

1800717

$1.59

33

SCREW, SOCK CAP 1/4-20 X .5"

1800754

$3.19

34

CHECK VALVE

1800546

$57.19

35

CLICKER BOLT

1800547

$35.99

36

NUT, CRIMP (CASTLE) 7/16

1800164

$9.59

37

ADJUSTER KNOB (BLACK)

1800553

$131.99

37

ADJUSTER KNOB (BLACK)

1800553

$131.99

38

.250 BALL

1800548

$7.19

39

RETENTION NUT

1800492

Unavailable

40

SS ADJUSTER STUD

1800493

Unavailable

41

O-RING, 2-012

1800501

$6.39

42

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

43

BALL, DETENT 3/16"

1800127

$6.39

44

2.5IN EXT PB BL (CLEAR)

1800556

$218.39

45

9/16 HEIM SHAFTLOOP (Clear)

1800555

$223.99

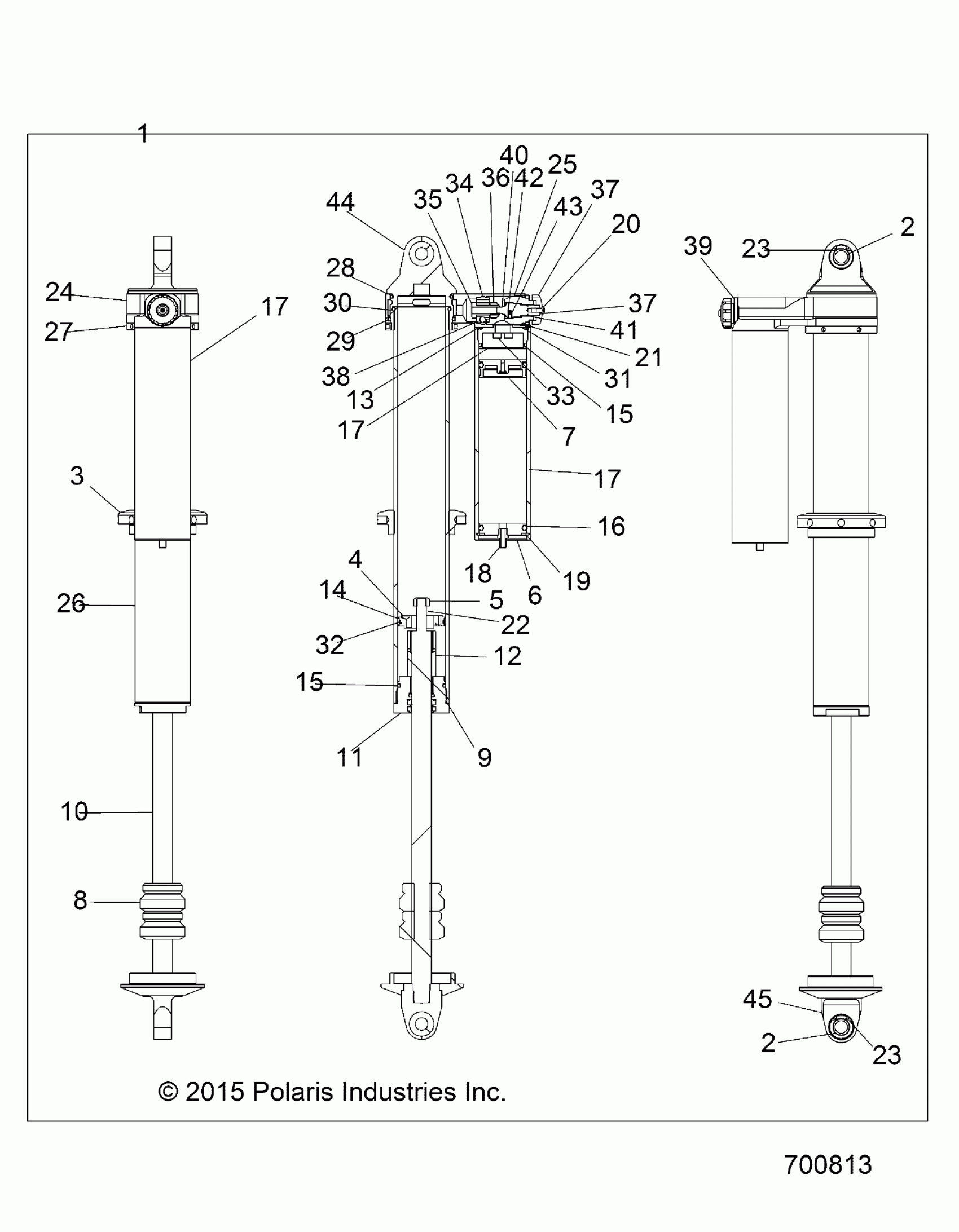

Polaris RZR XP 4 1000 (R19) - Z16VFE99AF/AS/AM/M99AM SUSPENSION, REAR SHOCK - Z16VFM99AM (700813) Diagram

SHOCK, REAR [INCL. ALL]

BEARING, SPHR COM9T-500, 1.093 UTV

BEARING, SPHR COM9T-500, 1.093 UTV

2.5IN SPRING NUT (HARD BLACK)

PISTON, 2.5IN HI FLOW (HRP 44-033)

7/16 Ny Lock nut

2.5in END CAP SV (Clear)

RES, PISTON 2.5IN ASM

1.25 BUMP STOP LG

O-RING

7/8IN CHROME NEEDLE SHAFT

ASM. SEAL HEAD 2.5", .875 SHAFT CLR

SPACER 2.037L

SPRING CLIP

BAND, WEAR 2.125

O-RING

O-RING

O-RING 2-327

2.5IN9.5L PB RES CAN

2.5IN9.5L PB RES CAN

2.5IN9.5L PB RES CAN

SCHRAEDER VALVE

2.125 ID BORE SNAP RING

SCREW, HEAD 10/32 BTN

O-RING

SHIM, 7/16" .015 X .600

RING- RETAIN (SNAP)

RING- RETAIN (SNAP)

2.5IN PB BRIDGE (CLEAR)

2.5 RES MOUNT

2.5IN CO PB AL BODY

2.5 PB LOCK NUT (CLEAR)

O-RING 2-230

O-RING 2-232

O-RING 2-229

O-RING, 2-134

O-RING 2-031 VITON

SCREW, SOCK CAP 1/4-20 X .5"

CHECK VALVE

CLICKER BOLT

NUT, CRIMP (CASTLE) 7/16

ADJUSTER KNOB (BLACK)

ADJUSTER KNOB (BLACK)

.250 BALL

RETENTION NUT

SS ADJUSTER STUD

O-RING, 2-012

SPRING-COMP .025X.3, 40.5#

BALL, DETENT 3/16"

2.5IN EXT PB BL (CLEAR)

9/16 HEIM SHAFTLOOP (Clear)
