- RZR XP 4 1000 (R19) - Z16VFE99AF/AS/AM/M99AM
SUSPENSION, REAR SHOCK - Z16VFE99AF/AS/AM (49RGRSHOCKRR7044087)

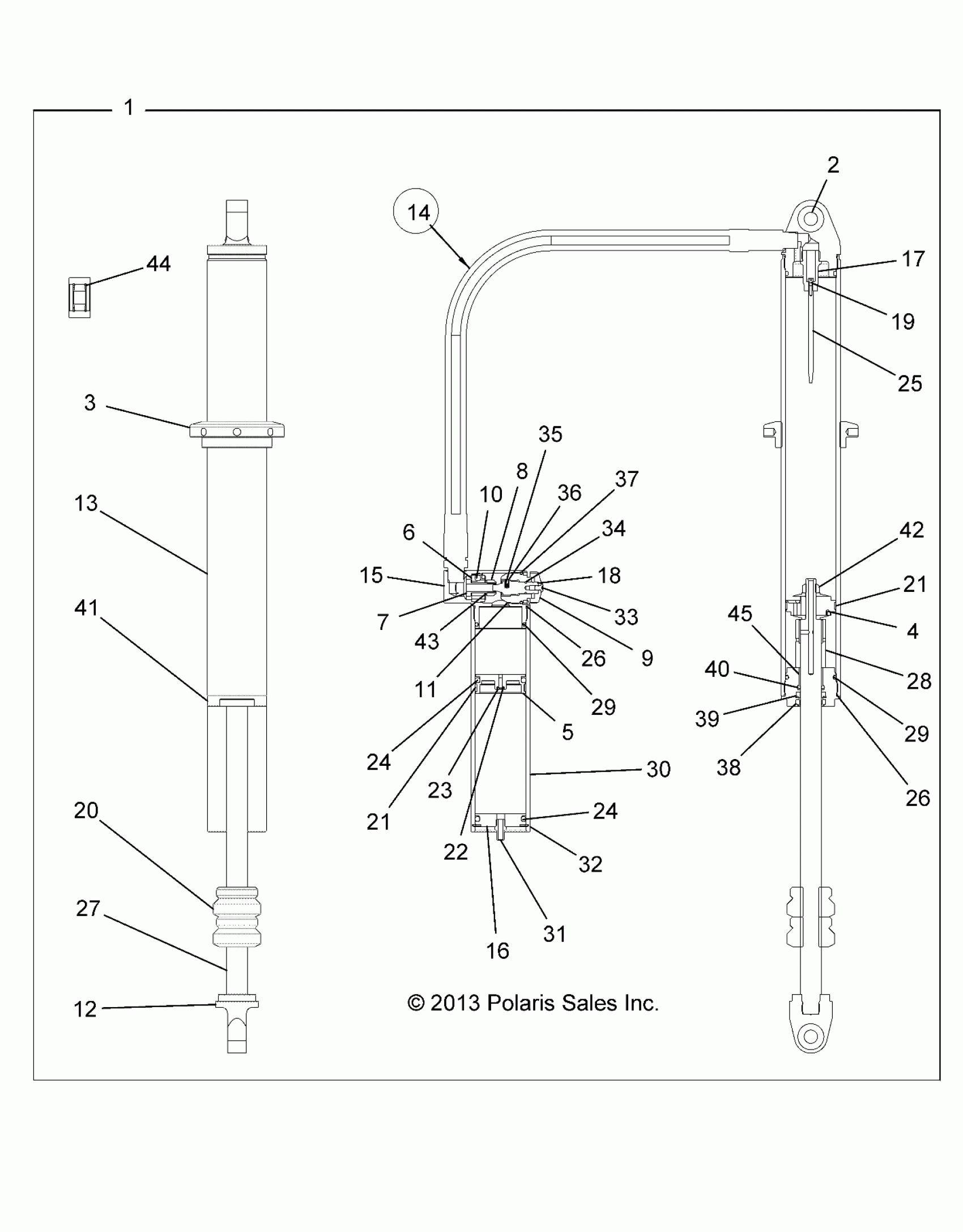

Polaris RZR XP 4 1000 (R19) - Z16VFE99AF/AS/AM/M99AM SUSPENSION, REAR SHOCK - Z16VFE99AF/AS/AM (49RGRSHOCKRR7044087) Diagram
#
1
SHOCK, REAR, 2.5, MP [INCL. ALL]
7044371
$785.83
2
BEARING, SPHERICAL
1800592
$59.99
3
NUT, SPRING
1800715
$104.99
4
PISTON
1800486
Unavailable
5
PISTON
1800480
$123.99
6
VALVE
1800546
$57.19
7
BOLT, CLICKER
1800547
$35.99
8
NUT, CRIMP
1800164
$9.59
9
KNOB, ADJUSTER
1800553
$131.99
10
BALL
1800548
$7.19
11
NUT
1800492
Unavailable
12
LOOP, SHAFT
1800555
$223.99
13
BODY, 2.5", 18.55L
1800718
$422.17
14
HOSE
1800607
$112.85
15
MOUNT, RESERVOIR
1800608
$246.61
16
END CAP
1800552
$119.99
17
BOLT, NEEDLE
1800611
$31.50
18
NUT
1800493
Unavailable
19
SCREW, BLEED W/O-RING
1800074
Unavailable
20
BUMPER
1800201
Unavailable
21
BAND, PISTON
1800509
$55.99
21
BAND, PISTON
1800509
$55.99
22
O-RING, BLEED SCREW
1800210
$1.59
23
SCREW, BLEED
1800043
$5.59
24
O-RING
1800508
$5.59
24
O-RING
1800508
$5.59
25
NEEDLE
1800612
Unavailable
26
O-RING
1800613
$10.39
26
O-RING
1800613
$10.39
27
SHAFT
1800632
$387.19
28
SPACER
1800610
$55.99
29
O-RING
1800500
$1.99
29
O-RING
1800500
$1.99
30
BODY, RESERVOIR
1800633
Unavailable
31
VALVE
1800021
$43.99
32
RING, RETAINING
1800507
$10.39
33
SCREW
1800357
$3.19
34
O-RING
1800215
$7.68
35
SPRING-COMP .025X.3, 40.5#
1800128
$10.39
36
BALL, DETENT
1800127
$6.39
37
O-RING
1800503
$1.59
38
WIPER
1800641
$31.99
39
SEAL, SHAFT
1800642
$23.99
40
O-RING
1800636
$7.19
41
SEAL HEAD
1800637
$108.67
42
NUT, NYLOK
1800638
$4.79
43
WASHER
1800639
$13.59
44
RING, RETAINING
1800481
$79.99
45
SHAFT BUSHING, .875
1800643
$37.11
