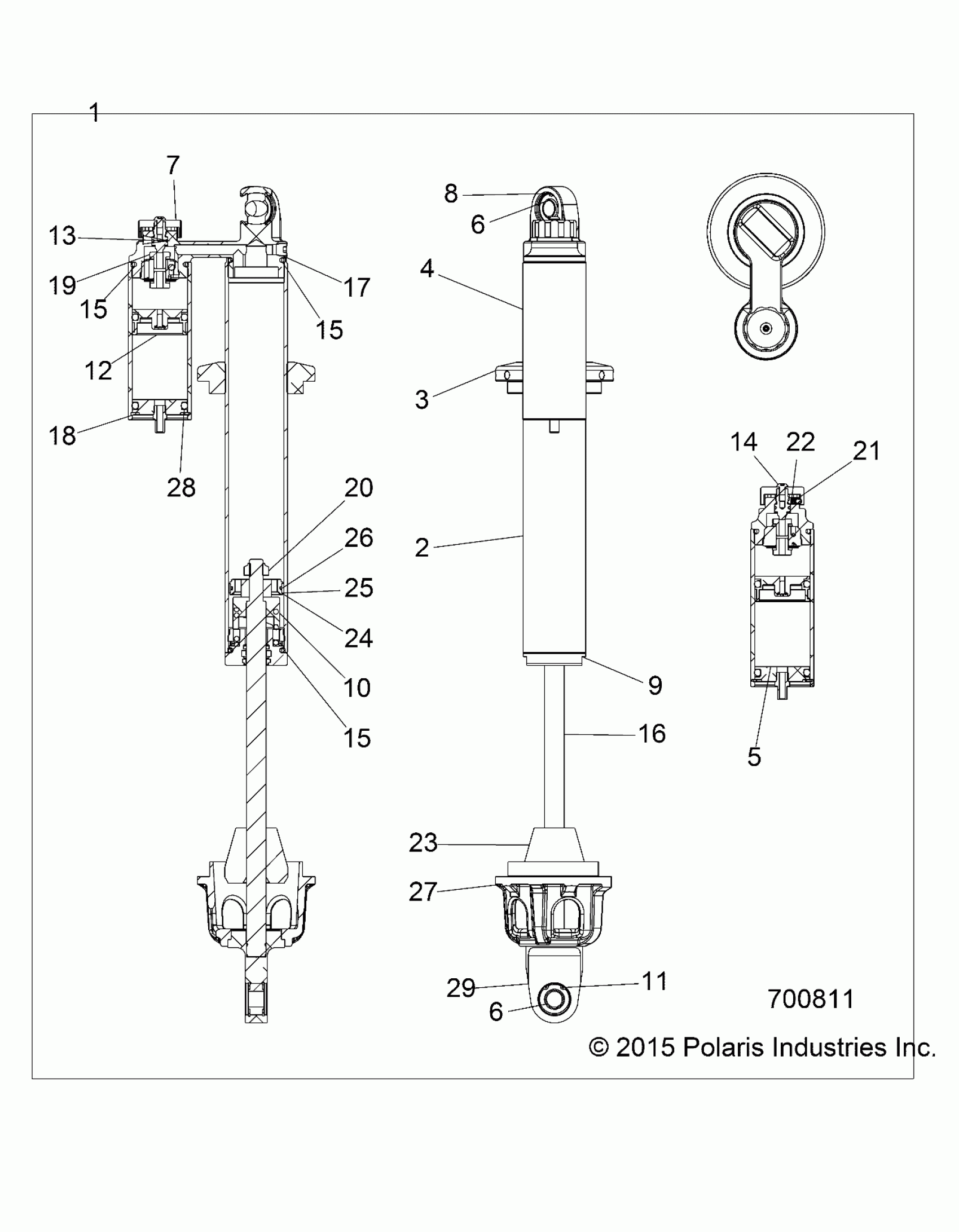

Polaris RZR XP 4 1000 (R19) - Z16VFE99AF/AS/AM/M99AM SUSPENSION, FRONT SHOCK - Z16VFM99AM (700811) Diagram

#

Description
Price

1

SHOCK, FRONT, RH, PASSENGER

7044597

$899.99

1

SHOCK, FRONT, LH, DRIVER

7044596

$899.99

2

2.0 CO BODY

1800602

$319.99

3

SPRING NUT

1800514

$87.13

4

2.0IN RES BODY 5.0L BLACK

1800575

$129.99

5

CAP,,END RES 2IN ASM

1800755

$49.99

6

SPHERICAL BEARING 1.0OD X .50 ID W TEFLON

1800616

$76.17

6

SPHERICAL BEARING 1.0OD X .50 ID W TEFLON

1800616

$76.17

7

CLICKER KNOB (BLACK)

1800418

$63.24

8

2IN 45 DEG PB BL RH PASS

1800594

$289.99

8

LH DRIVER 45DEG PB BL

1800595

$289.99

9

HEAD, W NEG SPRING ASM 2IN

1800761

$54.99

10

hydro droop spacer

1800598

$69.99

11

RING, SNAP 1.0ID

1800041

$8.08

12

SA-0624204 PISTON, RES, IFP

1800739

$44.99

13

CLICKER STUD ASM

1800758

$29.99

14

SCREW, HEAD

1800357

$2.19

15

O-RING BODY LOOP

1800030

$1.37

15

O-RING BODY LOOP

1800030

$1.37

15

O-RING BODY LOOP

1800030

$1.37

16

12.620L SHAFT-CHROME

1800756

$193.63

17

1/8 PIPE PLUG

1800599

$15.37

18

RING, SNAP

1800159

$5.56

19

CLICKER PISTON ASM

1800757

$84.99

20

NUT, CRIMP (CASTLE) 7/16

1800164

$9.52

21

BALL, DETENT 3/16"

1800127

$6.46

22

SPRING-COMP .025X.3, 40.5#

1800128

$11.32

23

BUMP STOP, MCU, 2.0DIA X

1800603

$85.49

24

PISTON,2IN 3 PORT HI FLOW

1800759

Unavailable

25

BAND, PISTON WEAR

1800185

$44.51

26

O-RING 2-029 VITON

1800760

$2.02

27

RETAINER-SPRING,CAST

5633421

$76.89

28

O-RING 2-324

1800184

$5.65

29

EXT SHAFTLOOP .625THD

1800600

$259.99
