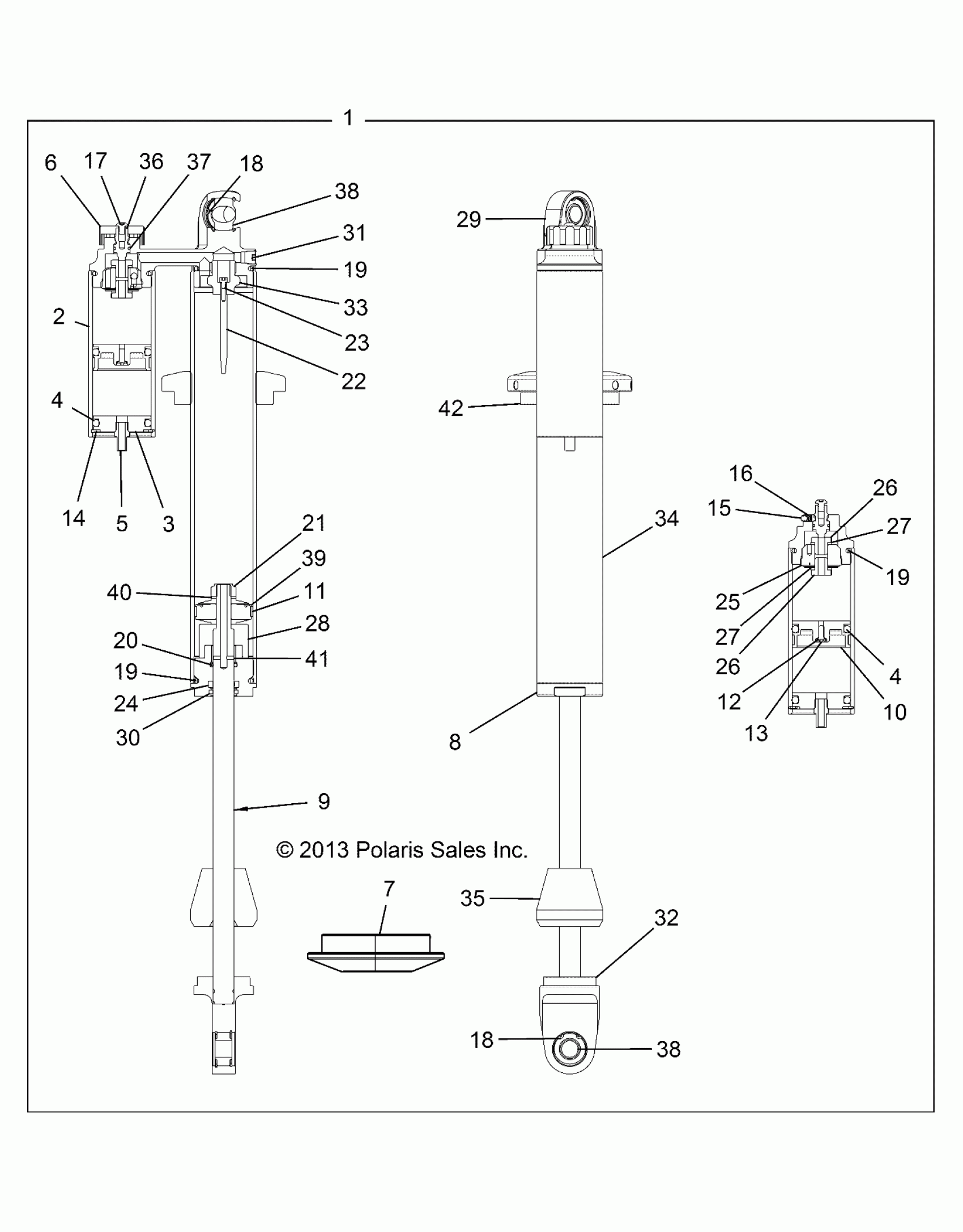

Polaris RZR XP 4 1000 (R19) - Z16VFE99AF/AS/AM/M99AM SUSPENSION, FRONT SHOCK - Z16VFE99AF/AS/AM (49RGRSHOCKFRT7044116) Diagram

#

Description
Price

1

SHOCK, FRONT, LH, DRIVER

7044116

$752.39

1

SHOCK, FRONT, RH, PASSENGER

7044117

$752.39

2

BODY, RESERVOIR

1800575

$99.99

3

END CAP, RESERVOIR

1800574

Unavailable

4

O-RING

1800184

$5.65

4

O-RING

1800184

$5.65

5

VALVE

1800021

$43.99

6

KNOB, CLICKER, BLACK

1800418

$89.03

7

RETAINER, SPRING

1500867

Unavailable

8

SEALHEAD

1800596

$104.49

9

SHAFT

1800597

$163.01

10

PISTON, RESERVOIR

1800355

$75.99

11

BAND, PISTON

1800185

$39.99

12

O-RING, BLEED SCREW

1800210

$1.59

13

SCREW, BLEED

1800043

$5.59

14

RING, SNAP

1800159

$5.59

15

BALL, DETENT

1800127

$6.39

16

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

17

SCREW

1800357

$3.19

18

RING, SNAP

1800041

$7.27

18

RING, SNAP

1800041

$7.27

19

O-RING BODY LOOP

1800030

$2.02

19

O-RING BODY LOOP

1800030

$2.02

19

O-RING BODY LOOP

1800030

$2.02

20

O-RING, SHAFT SEAL HEAD, BROWN

1800655

$7.19

21

NUT, CRIMP

1800164

$9.59

22

NEEDLE

1800300

$24.27

23

SCREW, BLEED W/O-RING

1800074

Unavailable

24

SEAL, U-CUP, BLACK

1800656

$31.99

25

PISTON

1800217

$56.65

26

SCREW

1800219

$11.19

26

SCREW

1800219

$11.19

27

WASHER

1800050

$3.99

27

WASHER

1800050

$3.99

28

SPACER

1800598

$54.33

29

PIGGYBACK, RH

1800594

$229.89

29

PIGGYBACK, LH

1800595

$229.89

30

WIPER, D-TYPE

1800034

$31.99

31

PLUG, PIPE

1800599

$14.39

32

LOOP

1800600

$195.99

33

BOLT, NEEDLE

1800601

$43.99

34

BODY

1800602

$254.97

35

STOP, BUMP

1800603

$67.99

36

STUD, CLICKER

1800352

$31.99

37

O-RING

1800215

$7.68

38

BEARING, SPHERICAL

1800616

$63.99

38

BEARING, SPHERICAL

1800616

$63.99

39

PISTON

1800604

$104.49

40

WASHER

1800187

$5.59

41

BUSHING, SHAFT

1800038

$12.79

42

NUT, SPRING

1800514

$67.99
