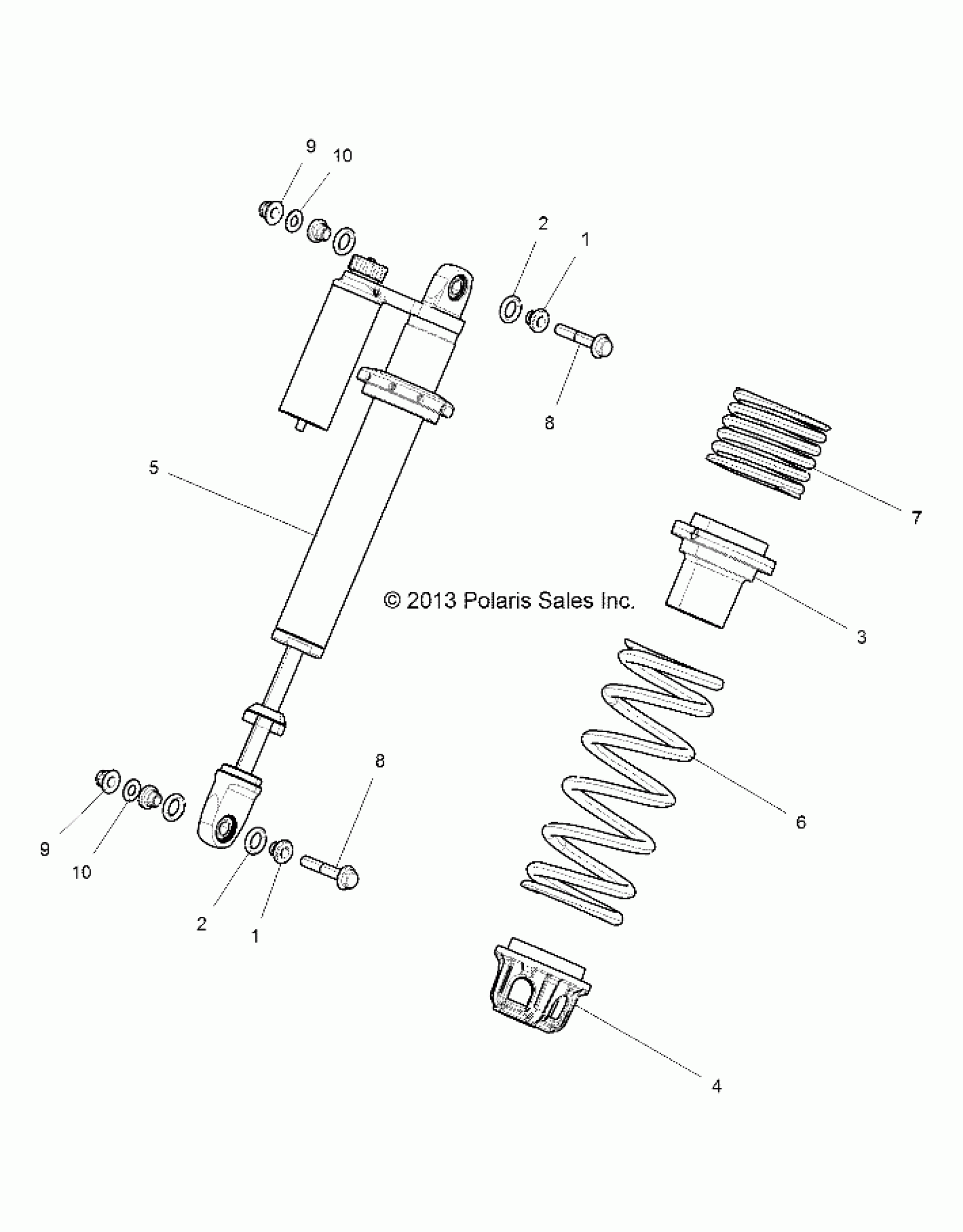

Polaris RZR XP 4 1000 (R19) - Z16VFE99AF/AS/AM/M99AM SUSPENSION, FRONT SHOCK MOUNTING - Z16VFE99AF/AS/AM (49RGRSHOCKMTG14RZR1000) Diagram

BUSHING, REDUCER

5137876

$7.19

BUSHING, REDUCER

5137876

$7.19

O-RING

5412290

$2.02

O-RING

5412290

$2.02

SPACER, SPRING

5450644

$43.99

RETAINER, SPRING, CAST

5633421

$69.49

SHOCK, FRONT, LH [E99AF/AM]

7044116

$752.39

SHOCK, FRONT, RH [E99AF/AM]

7044117

$752.39

SHOCK, FRONT, RH [M99AM]

7044597

$744.03

SHOCK, FRONT, LH [M99AM]

7044596

$744.03

SPRING, BRIGHT WHITE [M99AM][AS]

7044114-133

$263.99

SPRING, BRIGHT, CLOUD SILVER [E99AF]

7044114-385

Unavailable

SPR-335#,10.25FL,3.04-3.04ID,S [E99AM]

7044114-385

Unavailable

SPRING, BRIGHT WHITE [M99AM][AS]

7044115-133

$92.39

SPRING, BRIGHT, CLOUD SILVER [E99AF]

7044115-385

Unavailable

SPR-280#,6.1FL,3.04-3.04ID,SLV [E99AM]

7044115-385

Unavailable

SCREW [M99AM]

7519285

$2.39

SCREW [M99AM]

7519285

$2.39

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER

7556153

$1.99

WASHER

7556153

$1.99
