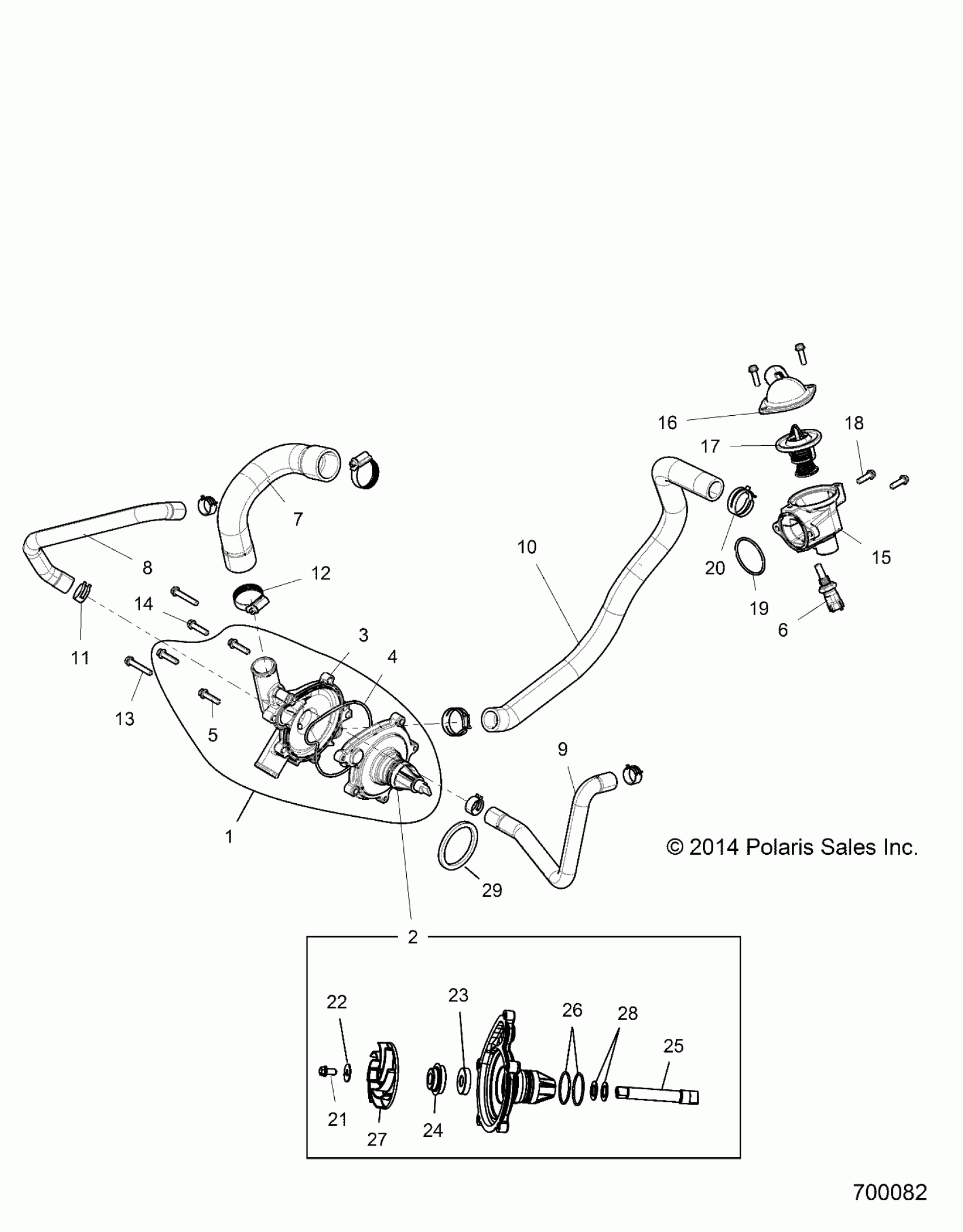

Polaris RZR XP 4 1000 (R19) - Z16VFE99AF/AS/AM/M99AM ENGINE, WATERPUMP AND BYPASS - Z16VFE99AF/AS/AM/M99AM (700082) Diagram

#

Description
Price

1

ASM, WATERPUMP [INCL 2-5]

1205014

$232.74

1

ASM, WATERPUMP [INCL 2-5]

1205014

$232.74

2

ASM, WATER PUMP HOUSING [INCL 21-28]

----

Unavailable

3

ASM, WATERPUMP COVER

----

Unavailable

4

GASKET, WATERPUMP COVER

----

Unavailable

5

SCREW

----

Unavailable

6

SENSOR-THERMISTER

4010644

$91.97

7

HOSE, WATER PUMP OUT, FORMED

5414208

$68.79

8

HOSE, OIL COOLER OUTLET

5414282

$32.37

9

HOSE, OIL COOLER IN

5414475

$32.37

10

HOSE, BYPASS

5415599

$44.51

11

CLAMP, HOSE, SPRING

7081026

$7.94

12

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

13

SCREW

7519280

$4.76

14

SCREW

7519297

$3.97

15

HOUSING, THERMOSTAT

5138282

$27.78

16

COVER, THERMOSTAT, CAST

5632421

$40.46

17

THERMOSTAT, DOUBLE, ACTING, 1MM

7052600

$52.24

18

SCREW

7518576

$3.17

19

O-RING

5414591

$3.22

20

CLAMP, SPRINGBAND

7081970

$5.56

21

SCREW

----

Unavailable

22

WASHER, IMPELLER

----

Unavailable

23

SEAL, WATERPUMP SHAFT, OIL

----

Unavailable

24

SEAL, WATERPUMP SHAFT, WATER

----

Unavailable

25

SHAFT, WATERPUMP

----

Unavailable

26

O-RING

----

Unavailable

27

IMPELLER, WATERPUMP

----

Unavailable

28

WASHER, WATERPUMP, RETAINER

----

Unavailable

29

FILTER-WP

5814207

$2.38
