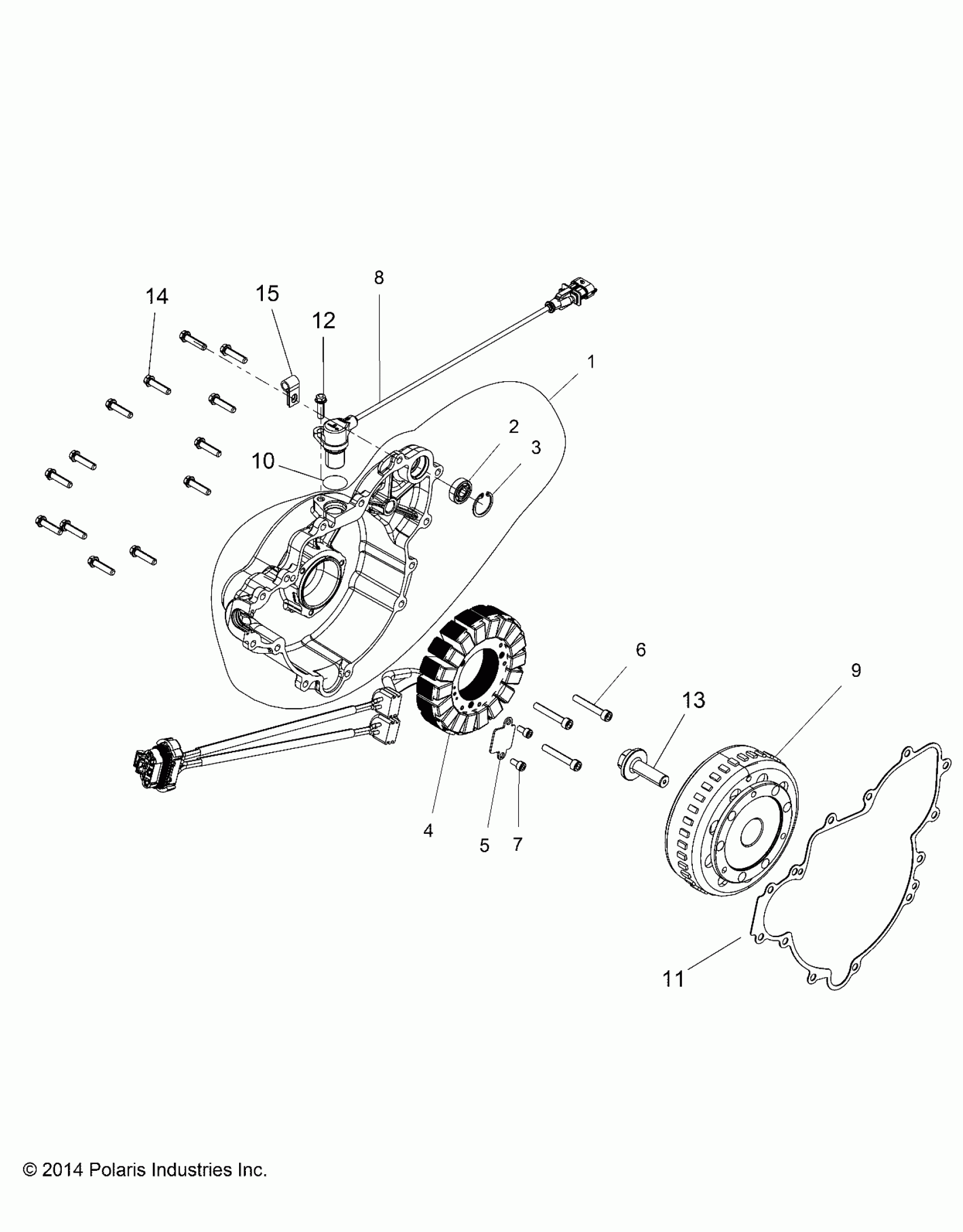

Polaris RZR XP 4 1000 (R19) - Z16VFE99AF/AS/AM/M99AM ENGINE, STATOR AND FLYWHEEL - Z16VFE99AF/AS/AM/M99AM (49RGRSTATOR1510004) Diagram

#

Description
Price

1

ASM., IGNITION COVER [INCL. 2,3]

1204518

$159.75

2

BEARING, BALL

3514717

$8.79

3

RING, SNAP

7710654

$23.99

4

STATOR

4013970

Unavailable

5

BRACKET, RETAINER, WIRE

5255473

$7.19

6

SCREW

7510005

$5.70

7

SCREW

7517847

$3.19

8

SENSOR, CRANK POSITION

2411719

$101.17

9

FLYWHEEL

4013969

$503.09

10

O-RING

-------

Unavailable

11

GASKET, COVER, MAG

5814160

$39.99

12

SCREW

7518576

$3.19

13

SCREW

7519170

$23.99

14

SCREW

7519297

$3.99

15

CLAMP, HOSE

7080683

$2.39
