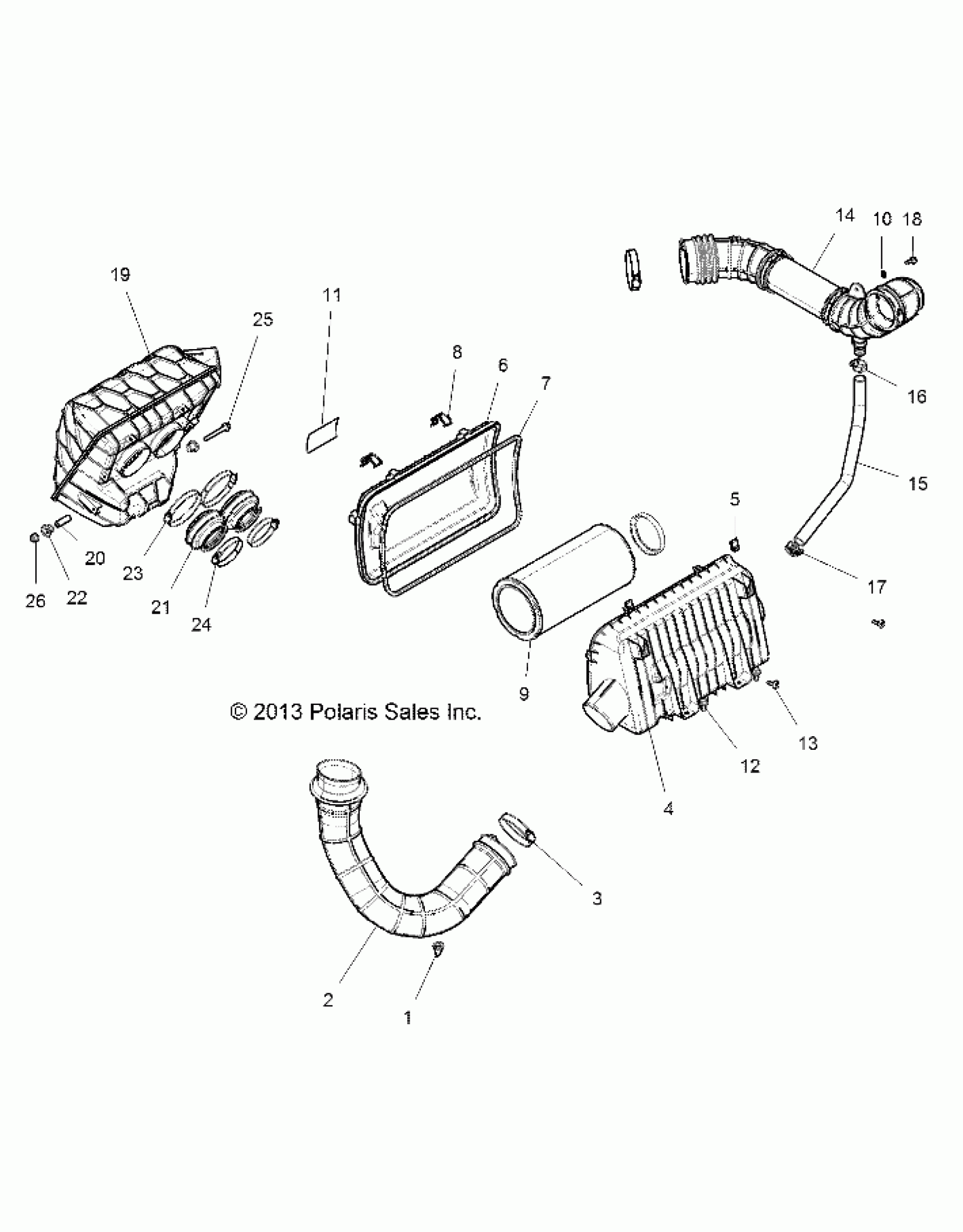

Polaris RZR XP 4 1000 (R19) - Z16VFE99AF/AS/AM/M99AM ENGINE, AIR INTAKE SYSTEM - Z16VFE99AF/AS/AM (49RGRAIRBOX14RZR1000) Diagram

#

Description
Price

1

PLUG-DRAIN

5414472

$5.59

2

HOSE, AIRBOX, IN

5414691

$103.99

3

CLAMP, HOSE

7080907

$11.19

4

ASM., AIRBOX HOUSING [INCL. 5]

1240747

$87.99

5

NUT, U-TYPE

7547674

$1.49

6

ASM., AIRBOX COVER [INCL. 7,8]

1240748

$71.99

7

SEAL, AIRBOX

5813929

$27.99

8

CLIP, AIRBOX

7081872

$5.59

9

ASM., FILTER [STD]

1240957

Unavailable

9

K-FILTER-AIR,PERF,RZN [OPT]

2879520

Unavailable

10

WASHER

7556329

$1.49

11

DECAL-CAUT.AIR BOX

7182652

Unavailable

12

BOLT

7518555

$2.39

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

14

ASM., INTAKE DUCT

1240770

$139.99

15

HOSE, VENT

5414671

$35.99

16

CLAMP, HOSE, WORM GEAR

7080614

$7.19

17

CLAMP, SPRINGBAND

7080841

$7.19

18

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

19

INTAKE, ENGINE HOUSING

1240749

$147.99

20

SHAFT, COMPRESSION LIMITER

5138987

$14.39

21

BOOT, THROTTLE BODY

5414570

$47.99

22

BUSHING-MOUNT

5414719

$2.39

23

CLAMP, WORM DRIVE

7080812

$19.99

24

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.19

25

SCREW

7519298

$3.99

26

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
