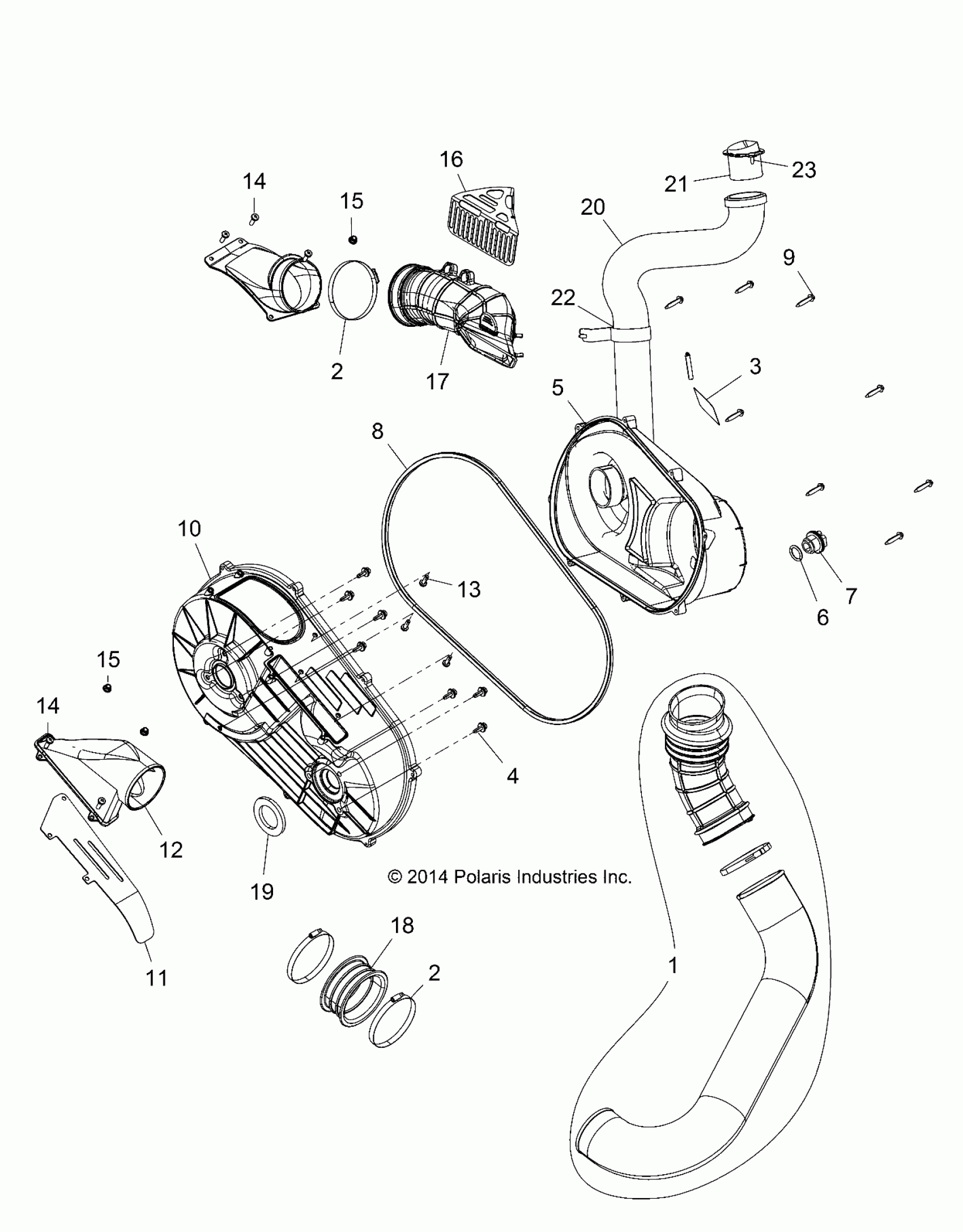

Polaris RZR XP 4 1000 (R19) - Z16VFE99AF/AS/AM/M99AM DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z16VFE99AF/AS/AM (49RGRCLUTCHCVR1510004) Diagram

#

Description
Price

1

ASM., INTAKE, CLUTCH DUCT

1240782

$131.99

2

CLAMP, WORM DRIVE

7081626

$7.99

2

CLAMP, WORM DRIVE

7081626

$7.99

3

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

4

ASM., BOLT AND WASHER

7519278

$4.79

5

ASM., COVER, CLUTCH, OUTER [INCL. 6,7]

2635611

$175.99

6

O RING-.364X.504X.07

5410542

Unavailable

7

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

8

SEAL, OUTER CLUTCH COVER

5521831

Unavailable

9

SCREW

7519330

$3.99

10

ASM., COVER, CLUTCH, INNER [INCL. 11-15]

2635158

$159.99

11

BRKT-GUARD,CLUTCH COVER

5256223

$35.99

12

DUCT-CLUTCH,AIR INLET

5439086

$39.99

13

SCREW

7518546

$3.19

14

SCREW

7519205

$1.59

14

SCREW

7519205

$1.59

15

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

15

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

16

BRACKET, SCREEN, BELT

5256957

$31.99

17

HOSE, CLUTCH, AIR OUTLET

5414537

$91.99

18

BOOT, INTAKE, CLUTCH

5813639

$10.39

19

SEAL-COVER,PTO

5813708

$23.99

20

HOSE, CLUTCH INTAKE

5415317

$95.99

21

BOOT, PLASTIC, INTAKE

5451776

$9.59

22

CLAMP, LARGE

7082035

$23.99

23

SCREW

7519045

$3.19
