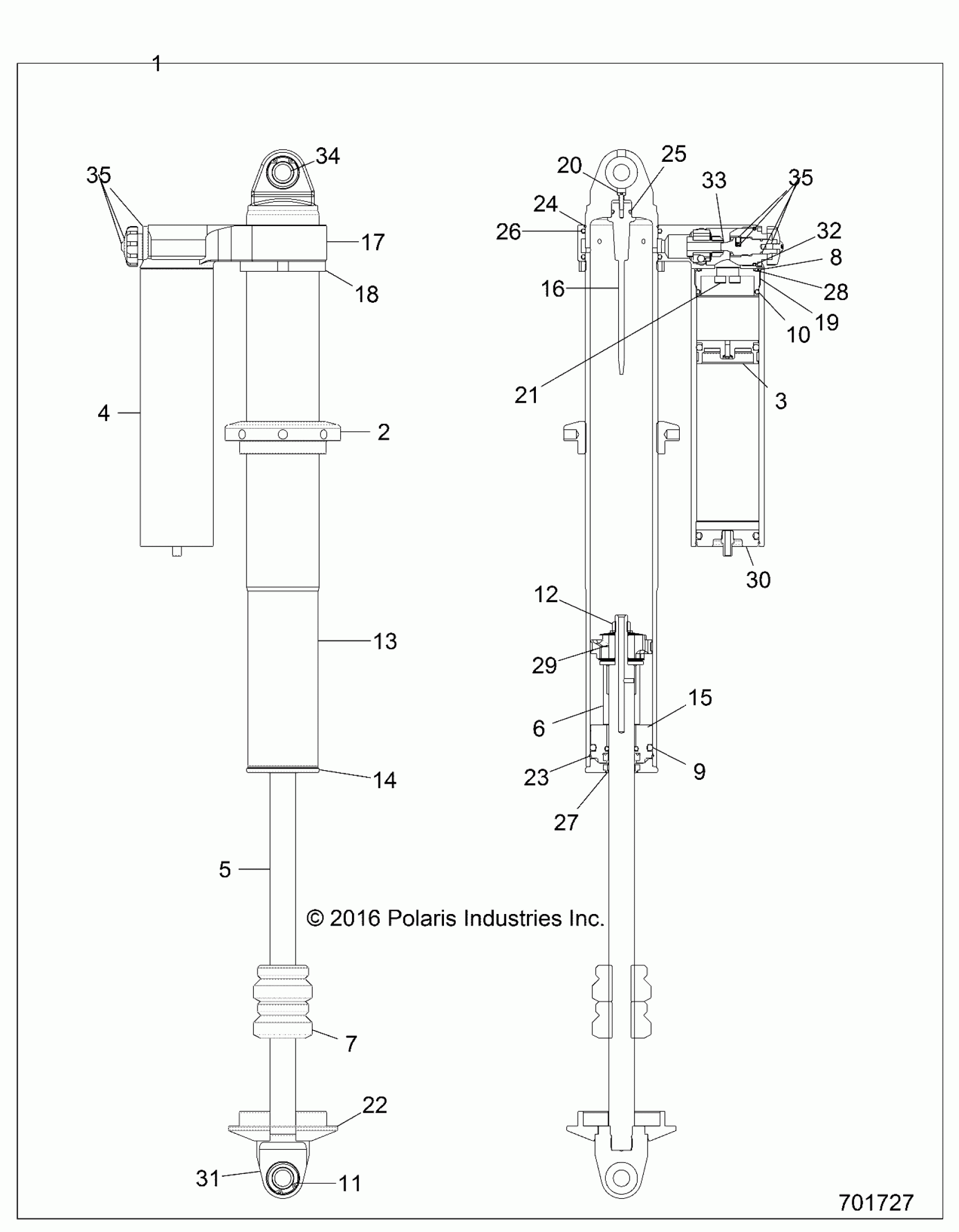

Polaris RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB SUSPENSION, REAR SHOCK INTERNALS - Z17VFE99AM/AW/LW/AP/M99AB(701726) Diagram

#

Description
Price

1

SHOCK, REAR [INCL ALL]

7044557

$939.99

2

2.5IN SPRING NUT (CLEAR)

1800836

$109.99

3

RES, PISTON 2.5IN ASM

1800752

$174.27

4

2.5IN 9.5L PB RES CAN WR (HARD CLEAR)

1800854

$363.08

5

SS 7/8IN CHROME NEEDLE SHAFT 18.295L

1800632

$439.99

6

SPACER 2.037L

1800657

$33.87

7

1.25 BUMP STOP LG

1800201

$80.74

8

O-RING 2-033

1800613

$11.32

9

O-RING 2-327

1800508

$5.65

10

O-RING 2-225

1800500

$2.02

11

RING- RETAIN (SNAP)

1800482

$13.54

12

42567 NY LOCK NUT

1800638

$4.76

13

BODY, MONOTUBE 2.5 REAR W NEEDLE HARD CLEAR 21.070L

1800838

$364.99

14

CAP, WIPER,2.5 PRESS FIT 42559 (CLEAR)

1800855

$59.99

15

ASM. SEAL HEAD 2.5 X 0.875 PI

1800856

$134.99

16

NEEDLE, 1PC PRESS IN

1800840

$69.99

17

BRIDGE, 2.5 WER ADJUSTER (CLEAR)

1800841

$319.99

18

2.5IN CROSSOVER RING/ JAM NUT

1800842

$44.99

19

2.5 RES MOUNT

1800488

$106.49

20

#8-32 X 0.5 LOW HEAD SCREW

1800843

$4.76

21

SCREW, SHCS 43834 X .5"

1800754

$3.17

22

SPRING CLIP

1501007

$84.99

23

Retaining Ring 2.5

1800847

$23.81

24

2.48 X 0.0625 WIRE RING

1800846

$8.08

25

O-RING 2-112

1800095

$0.82

26

O-RING 2-230

1800497

$5.65

27

WIPER 2.5 SH 0.875 SHAFT

1800641

$43.56

28

O-RING, 2-134

1800502

$2.02

29

Piston Assembly (.100 Bleed)

1800486

Unavailable

30

ASM. END CAP, 2.5 SCHRAEDER

1800844

$154.90

31

42629 HEIM SHAFTLOOP (CLEAR)

1800555

$294.99

32

O-RING 2-122

1800503

$1.60

33

VALVE, CHECK ASM

1800848

$74.99

34

BEARING, SPHR COM9T- 500, 1.093 UTV

1800592

$74.99

35

ASM. SS RETENTION NUT (GOLD)

1800857

$139.99
