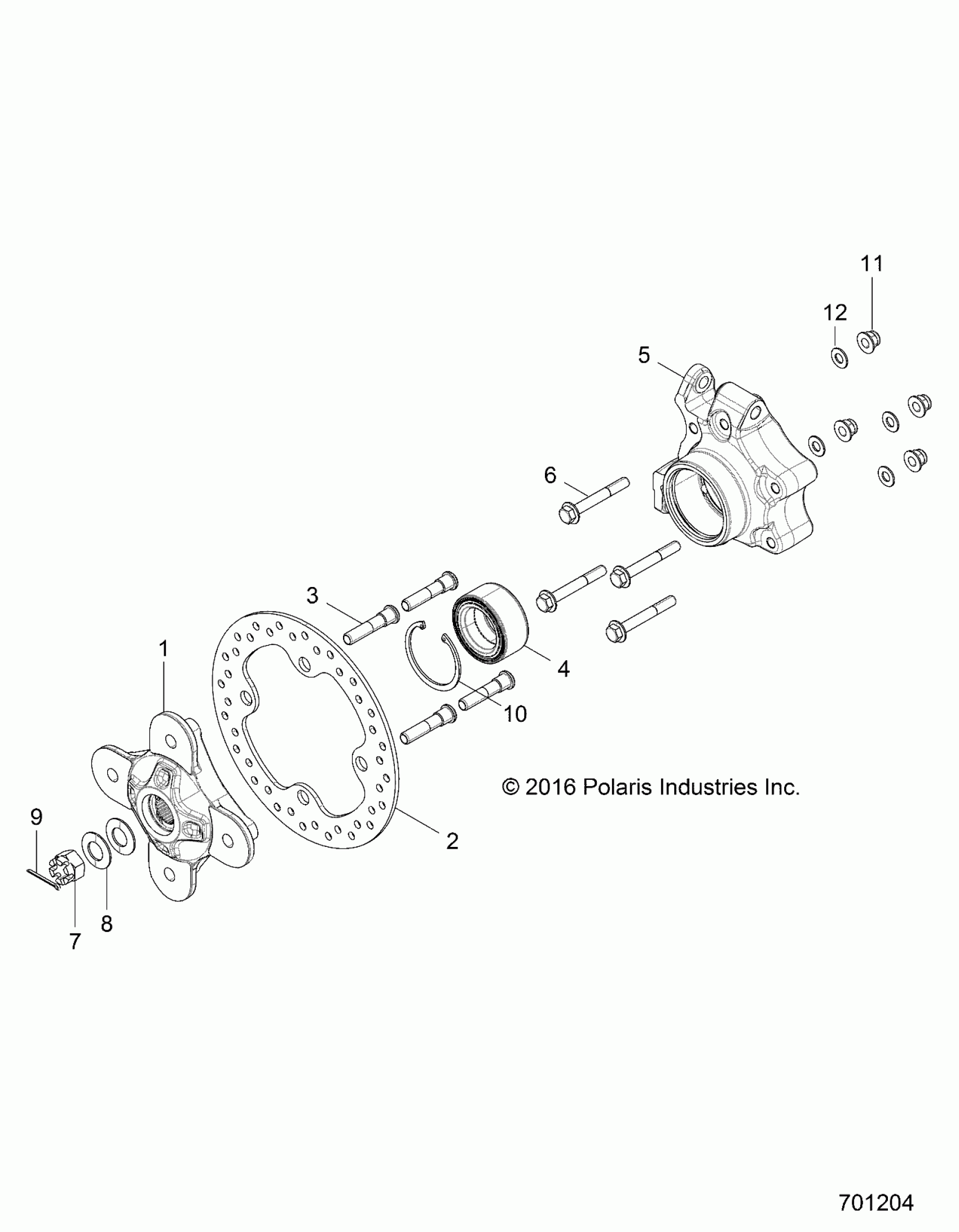

Polaris RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB SUSPENSION, REAR CARRIER - Z17VFE99AM/AW/LW/AP/M99AB (701204) Diagram

HUB-WHEEL(MACH),BLK

5139265-067

$91.99

DISC-BRAKE

5257196

$63.99

STUD-WHEEL,M12-1.5

7519792

$5.59

BEARING-BALL,SEALED,44X72X33.1

3514822

Unavailable

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

CARRIER-BEARING,WHEEL,LH(MACH) [AW][LW]

5138415

$203.99

CARRIER-BEARING,WHEEL,RH(MACH) [AW][LW]

5138416

$203.99

CARRIER-BEARING,WHEEL,LH(MACH) [AB][AM][AP]

5140634

$151.99

CARRIER-BEARING,WHEEL,RH(MACH) [AB][AM][AP]

5140635

$151.99

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$7.19

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

WASHER-CONE.755X1.5X.072-.107P

7555796

$7.99

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

RING-RETAINING,2.875,INTERNAL

7710440

$10.39

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
