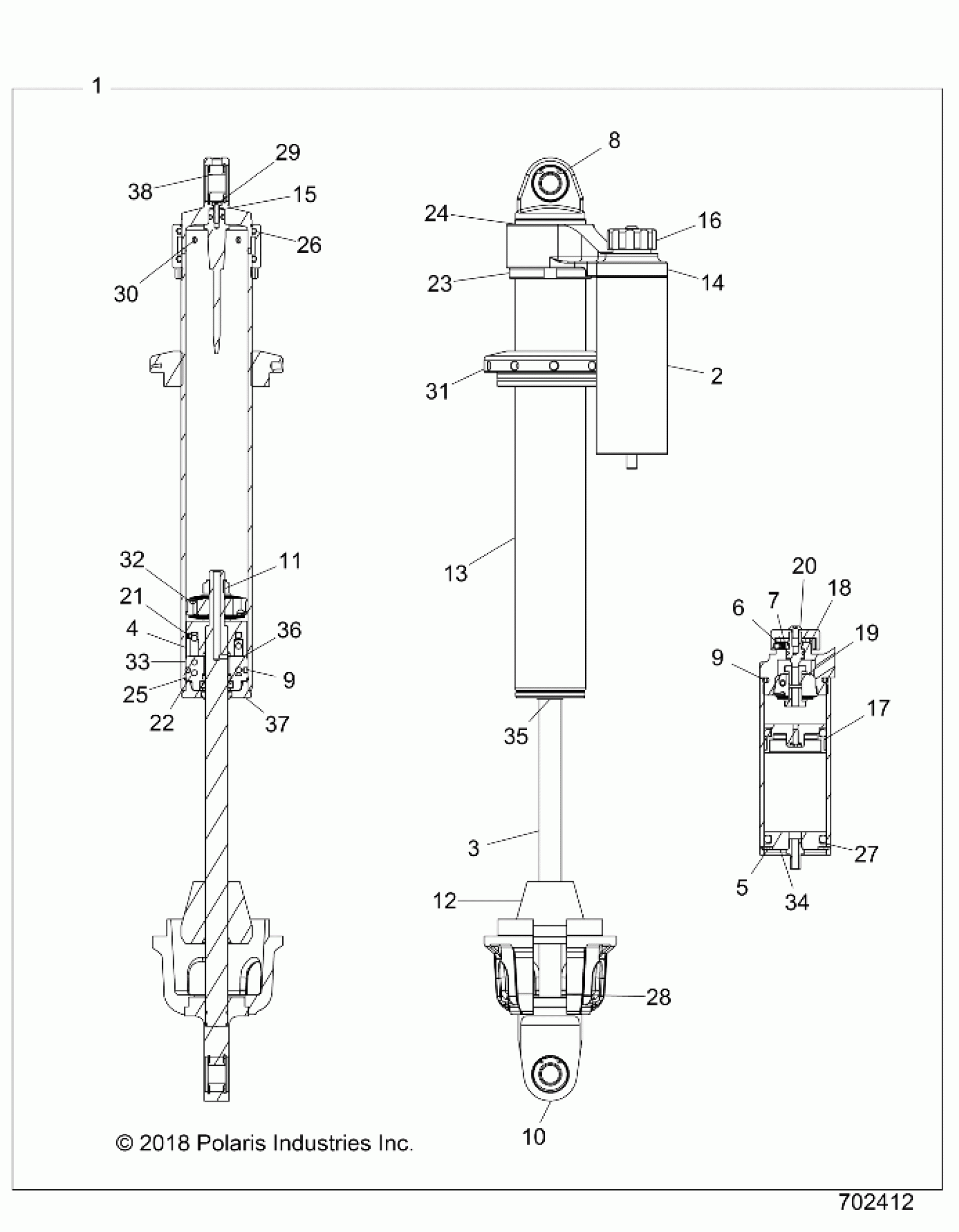

Polaris RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB SUSPENSION, FRONT INTERNALS - Z17VFE99AM/AW/LW/AP/M99AB (702412) Diagram

#

Description
Price

1

SHOCK-FRONT RZRXP 4 PIGGYBK,LH

7044555

$752.39

1

SHOCK-FRONT RZRXP 4 PIGGYBK,RH [INCL ALL]

7044556

$752.39

2

RES BODY, 2.0", 5.0L (HARD CLEAR)

1800392

$107.99

3

SHAFT, .625 CHROME NEEDLE 12.84L .144 BLEED X1

1800662

$114.99

4

DROOP SPACER W NEG SPRING

1800858

$44.99

5

RING, SNAP 1.750ID

1800159

$5.59

6

BALL, DETENT 3/16"

1800127

$6.39

7

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

8

RING, SNAP 1.0 ID

1800041

$7.27

9

O-RING BODY LOOP

1800030

$2.02

9

O-RING BODY LOOP

1800030

$2.02

10

EXT SHAFTLOOP .625THD 1" BRG

1800600

$195.99

11

NUT, CRIMP (CASTLE) 7/16

1800164

$9.59

12

BUMP STOP, MCU, 2.0Dia x 1.75L (ISC 140174-N)

1800859

$77.44

13

BODY, MONOTUBE CO, 2.0 x 14.285L Hard CLEAR

1800860

$289.99

14

BRIDGE 2.0 WER ADJUSTER (CLEAR)

1800866

$105.59

15

NEEDLE,1PC, PRESS IN

1800861

$59.99

16

CLICKER KNOB (BLACK)

1800418

$89.03

17

IFP PISTON ASM 1.750 W BLEED

1800739

$44.99

18

ASM. CLICKER STUD

1800758

$29.99

19

ASM. CLICKER PISTON

1800757

$79.99

20

SCREW, HEAD 10/32 BTN

1800357

$3.19

21

SCREW,SET #8-32

1800700

Unavailable

22

SPRING, CENTURY# 11980 DIRT

1800867

$31.99

23

JAMB NUT, 2.0IN ACME (CLEAR)

1800868

$43.99

24

Retaining Ring

1800862

$6.39

25

RETAINING RING WIRE .0625 X 1.750ID

1800795

$7.27

26

O-RING 2-226

1800863

$4.79

27

O-RING 2-324

1800184

$5.65

28

SPRING RETAINER

5633421

$69.49

29

#8-32 X .500 LOW HEAD SCREW

1800843

$4.79

30

O-RING 2-108

1800864

$4.79

31

SPRING NUT 2in ACME (CLEAR)

1800865

$39.99

32

PISTON ASSEMBLY

1800604

$104.49

33

ASM. SEAL HEAD, 2.0, PRESSIN, STD SEALS

1800869

$47.99

34

ASM. END CAP 2in (CLEAR)

1800755

$49.99

35

WIPER

1800034

$31.99

36

SHIM, 5/8 X .015 X 1.55

-------

Unavailable

37

CAP, WIPER 2.0 PRESS IN (CLEAR ANODIZE)

1800794

$49.99

38

SPHERICAL BEARING 1.0OD X .50 ID W TEFLON

1800616

$63.99
