- RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB
ENGINE, EXHAUST SYSTEM - Z17VFE99LW (701195)

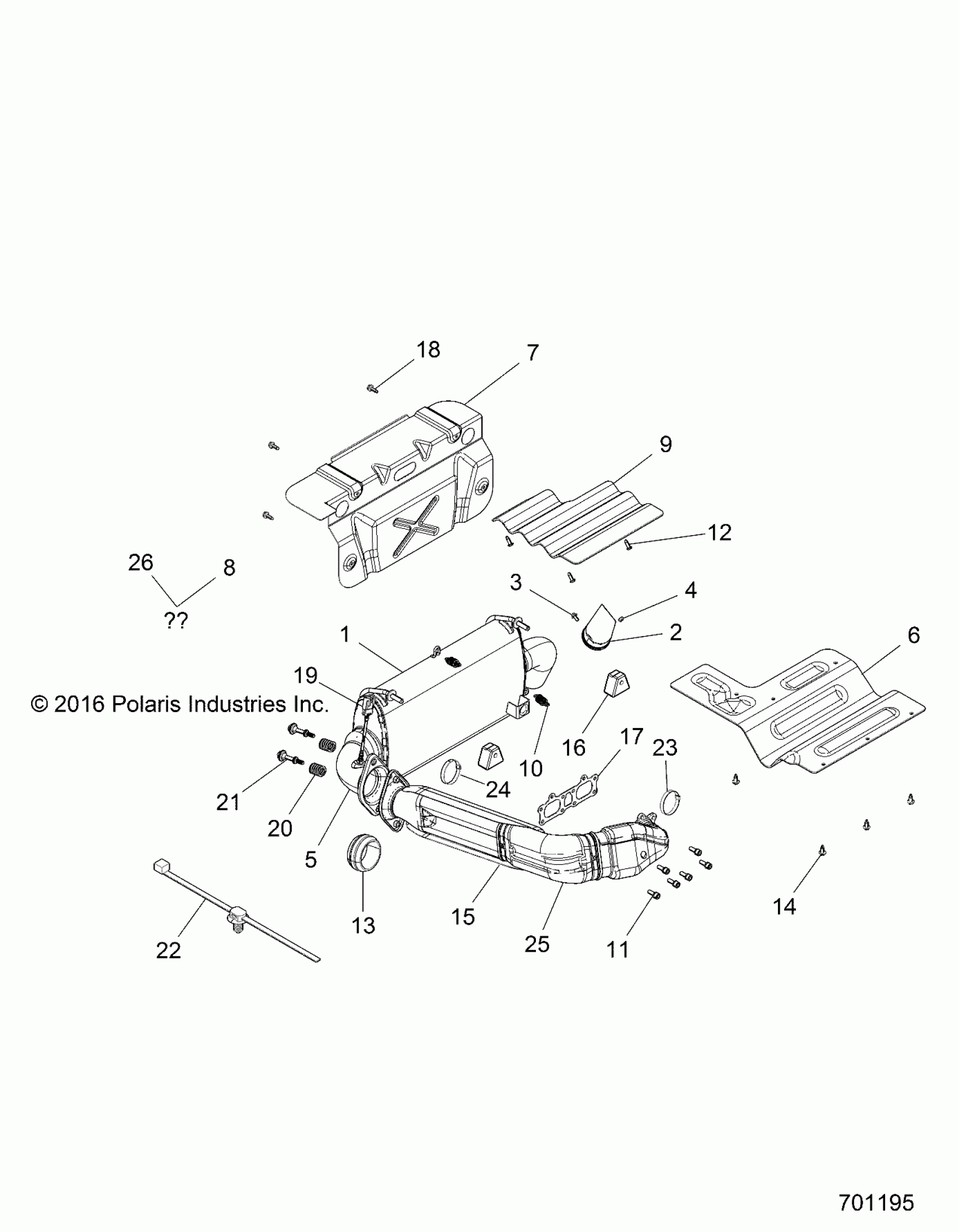

Polaris RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB ENGINE, EXHAUST SYSTEM - Z17VFE99LW (701195) Diagram
#
Description
Price
1
ASM-SILENCER [INCL. 2-5]
1262595
$615.99
2
ARRESTOR, SPARK
1262390
$47.99
3
SCREW
7517257
$9.59
4
NUT-HEX-M6X1.0 8 SPC
7547120
$4.79
5
WASHER-.28 X .81 X .06, ST-M
7555935
$2.39
6
SHIELD-BOX,FRONT
5814245
$43.99
7
SHIELD, FOIL, REAR BOX [IF BUILT BEFORE 6/13/16]
5260102
$44.51
7
SHIELD-REAR,AL [IF BUILT AFTER 6/14/16]
5263026
Unavailable
8
SCR-HXFL-M6X1.0X16 8.8 ZPB
7518591
$3.73
9
SHIELD, ACCESS PANEL [AB]
5814082
$39.99
9
SHIELD-ACCESS PANEL [AM][AW][LW]
5262942
$36.41
10
SPRING-EXHAUST
7041789
$7.99
11
SCREW
7518984
$7.99
12
SCREW
7519045
$3.19
13
GASKET, DOUBLE, SPHERICAL
3610236
$47.99
14
Rivet
7661855
$1.49
15
ASM., HEADPIPE [INCL. 23-25]
1262599
$363.99
16
MOUNT, ISOLATOR
5450115
$14.39
17
GASKET-EXHAUST SEAL
3610184
$48.56
18
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
19
SENSOR, OXYGEN
4016021
$159.99
20
SPRING, SPHERICAL, EXHAUST
7044274
$14.39
21
STUD-SPHERICAL,EXHAUST
7520079
$13.59
22
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
23
CLAMP-HEAT SHIELD,EXHAUST
7081156
$7.19
24
CLAMP, HEAT SHIELD,EXHAUST
7081579
$7.19
25
SHIELD-HEAT,HEADPIPE,OUTSIDE
5257570
Unavailable
26
WASHER-.281X1.00X.051
7556329
$1.49
