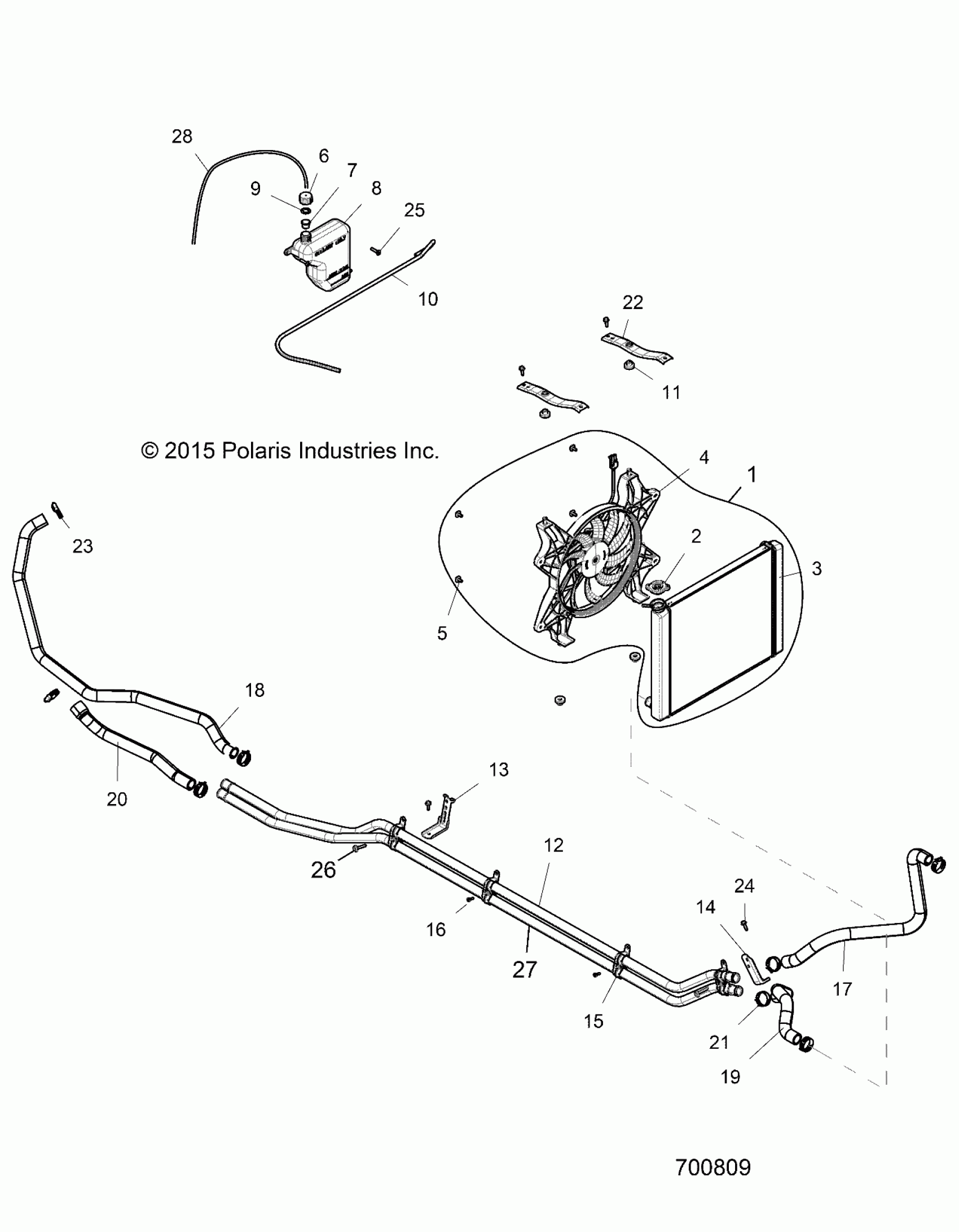

Polaris RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB ENGINE, COOLING SYSTEM - Z17VFE99AM/AW/LW/AP/M99AB (700808) Diagram

#

Description
Price

1

ASM., RADIATOR [INCL. 2-5]

1240712

$545.99

2

CAP

1240694

$39.99

3

ASM., RADIATOR, CORE

1240745

$440.69

4

FAN, ASM.

2412447

$239.99

5

BOLT

7519585

$9.59

6

CAP-OVER FLOW BOTTLE,DRILLED [AM][AW][LW]

5430743

$5.65

6

CAP-OVERFLOW BOTTLE,W/FITTING [AB]

5437635

$4.79

7

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

8

TANK-SURGE

5439202

$91.99

9

GASKET-OVERFLOW CAP

5810279

$2.41

10

Line, Fuel

8450003-1525

Unavailable

11

GROMMET, FLANGED

7052028

$6.39

12

TUBE, COOLANT

5139910

Unavailable

13

BRACKET, COOLANT TUBE, BLACK

5259433-329

$27.99

14

BRACKET, COOLANT TUBE, BLACK

5260766-329

$27.99

15

BRACKET-COOLANT TUBE

5451221

$8.79

16

SCREW

7512026

$1.49

17

HOSE, UPPER, RADIATOR

5414528

$63.99

18

HOSE, ENGINE OUTLET, REAR

5414530

$71.99

19

HOSE, LOWER, RADIATOR, LONG

5414532

$43.99

20

HOSE, ENGINE INLET, REAR

5414976

$39.99

21

CLAMP, SPRINGBAND

7080844

$10.39

22

BRACKET, UPPER RADIATOR MOUNT, BLACK

5256879-329

$31.99

23

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

25

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

26

SCR-M6X1X40,TR/TX-BLK

7519001

$3.99

27

TUBE, COOLANT

5139911

Unavailable

28

FUEL LINE-100 CENTIMETERS [AB]

8360009-100

Unavailable
