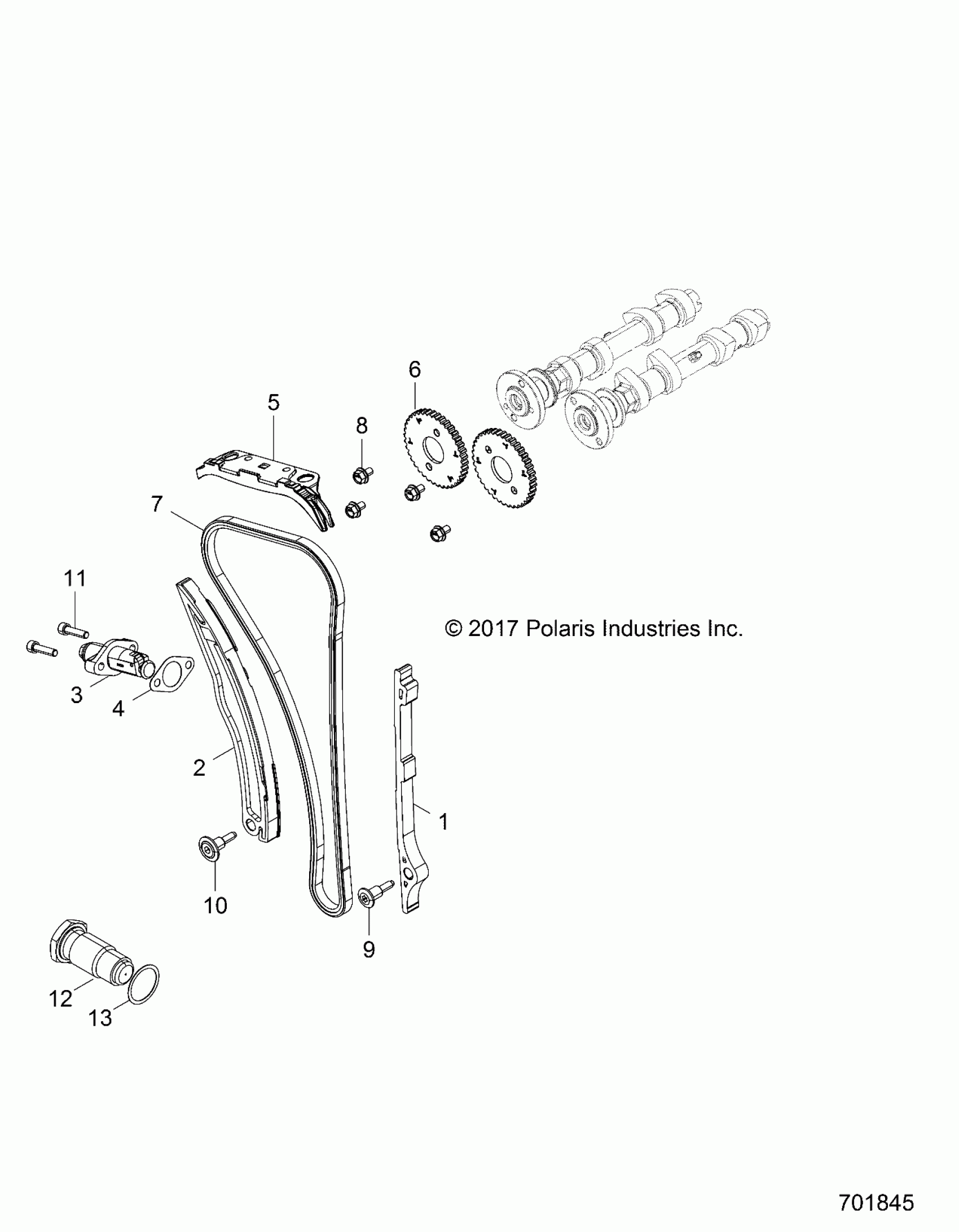

Polaris RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB ENGINE, CAM CHAIN AND TENSIONER - Z17VFE99AM/AW/LW/AP/M99AB (701845) Diagram

#

Description

Price

1

GUIDE-CAMCHAIN,FIXED

3022150

$12.79

2

GUIDE-CAMCHAIN,TENSIONER

3022151

$23.99

3

TENSIONER-RATCHETING,MECH

3023143

Unavailable

4

GASKET-TENSIONER [USE WITH 3023143]

5814318

Unavailable

5

GUIDE-CAMCHAIN,TOP,ARC

3022836

$19.99

6

SPROCKET, CAM, DRIVEN, DOHC

3222189

$36.41

7

CHAIN-CAMSHAFT 144L

3222196

$76.89

8

SCREW

7519164

$3.99

9

BOLT-SHOULDER

7519165

$13.59

10

BOLT-SHOULDER

7519289

Unavailable

11

SCR-SH-M6X1.0X25 10.9 ZPC D204 [USE WITH 3023143]

7518995

$5.59

12

TENSIONER-CAMCHAIN,HYD [ENGINE SERIAL NUMBERS 0120549257166 to 0120549258232]

3022152

$83.99

13

GASKET-TENSIONER [ENGINE SERIAL NUMBERS 0120549257166 to 0120549258232][USE WITH 3022152]

5813449

$7.19
