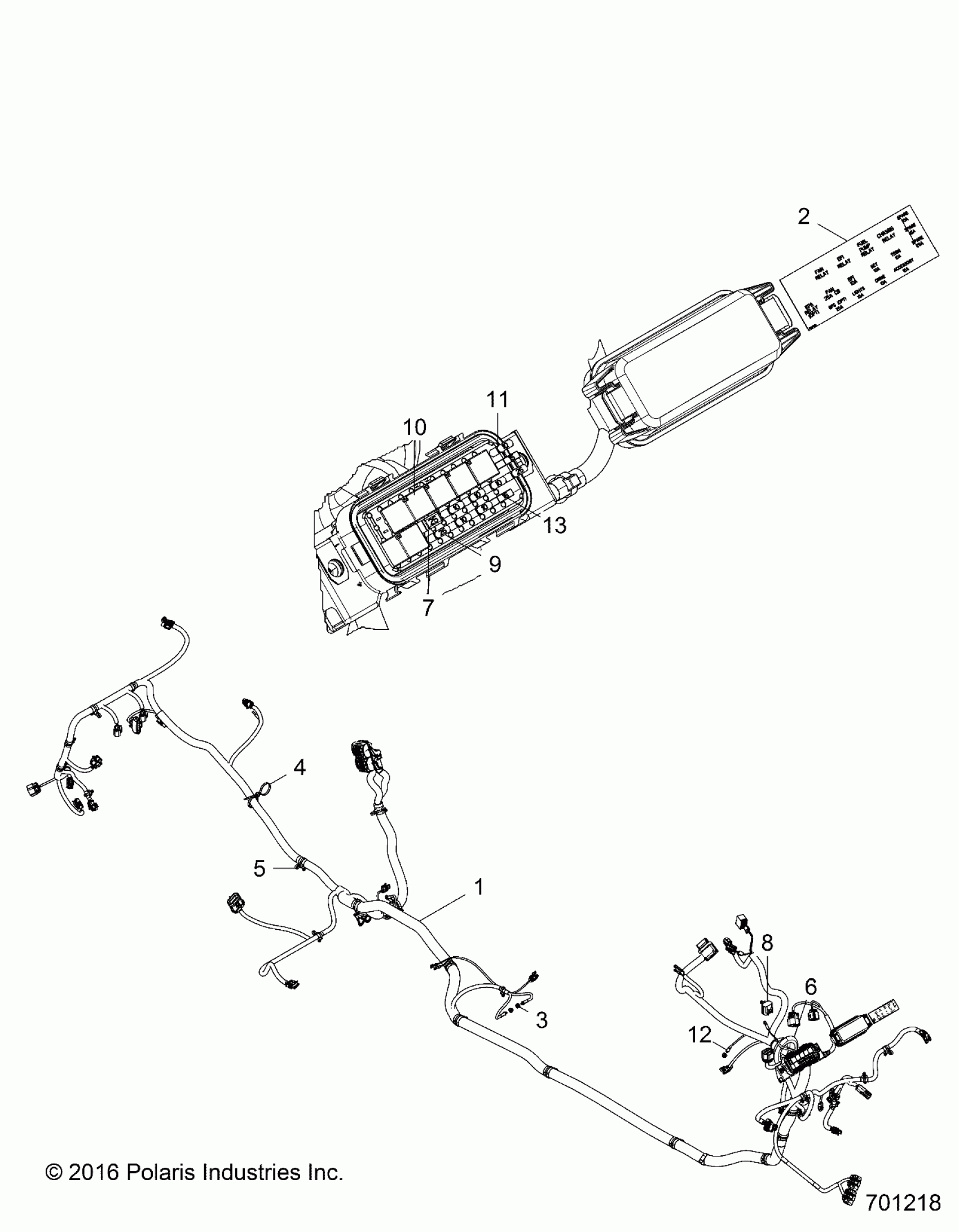

Polaris RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB ELECTRICAL, WIRE HARNESS - Z17VFM99AB (701218) Diagram

#

Description

Price

1

HARNESS-CHAS,EPS,RZN,64,MP,SLD

2413488

Unavailable

2

LABEL-FUSE BOX,RZN

7184781

Unavailable

3

CLIP-ROUTING,DIN BOX

7082020

$5.59

4

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

5

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

GROMMET-65MM,BLK

5813954

$7.19

7

BREAKER-CIRCUIT,25 AMP

4015771

$63.99

8

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

9

FUSE-25A,MINI BLADE

4011653

$7.99

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

FUSE-IGNITION,10 AMP

2434016

$4.79

12

LED-PANEL MNT,12V,BLUE

2413217

$51.99

13

FUSE-MINI BLADE,15 AMP

2410280

Unavailable
