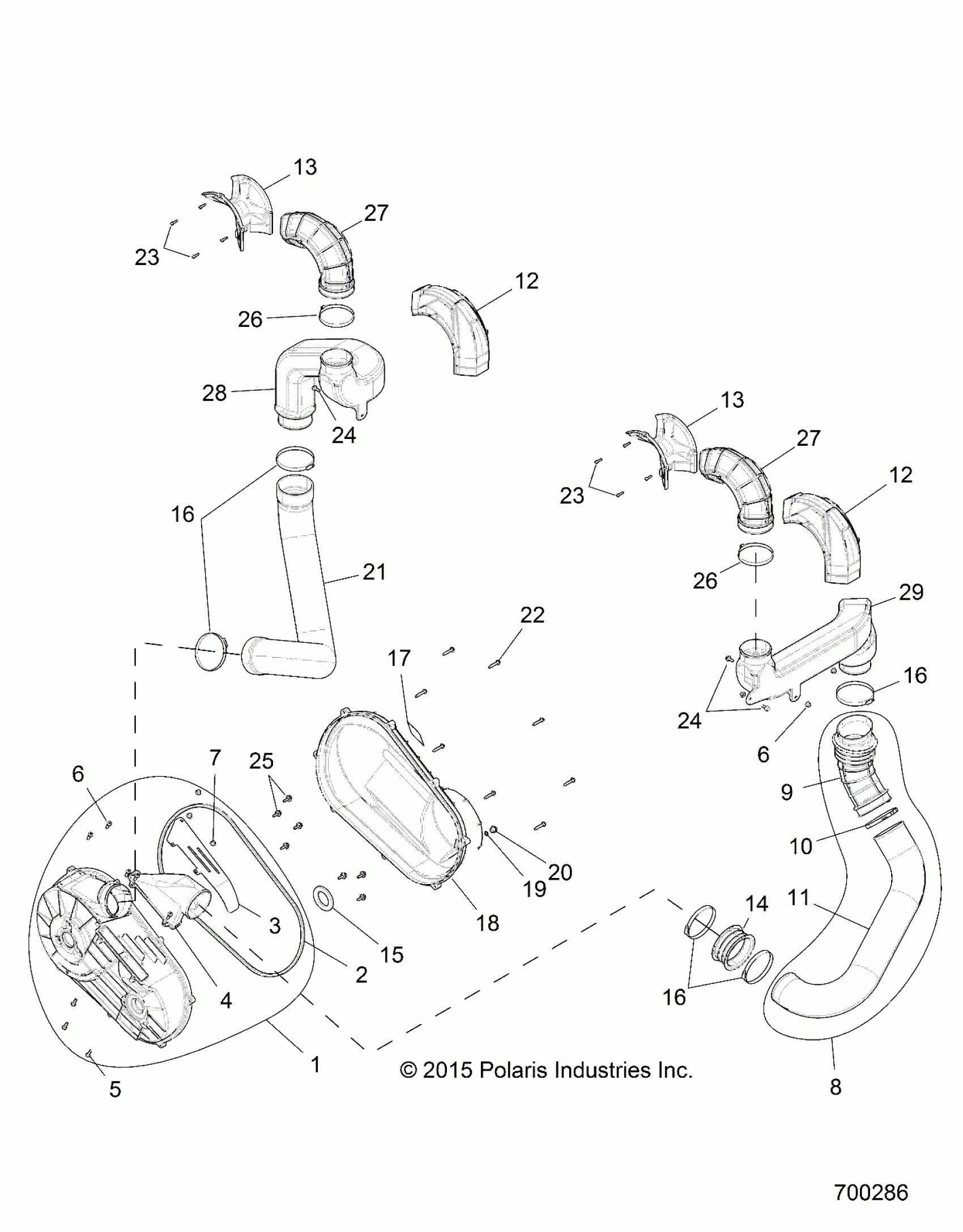

Polaris RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z17VFM99AB (700286) Diagram

#

Description
Price

1

ASM., COVER, CLUTCH, INNER [INCL 2-6, QTY 3 OF 7]

2635822

Unavailable

2

SEAL, OUTER CLUTCH COVER

5521831

Unavailable

3

BRKT-GUARD,CLUTCH COVER

5256223

$35.99

4

DUCT-CLUTCH,AIR INLET

5439086

$39.99

5

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.19

6

SCR-#14X3/4 HI/LO-PH-PN TRX-M

7519205

$1.59

6

SCR-#14X3/4 HI/LO-PH-PN TRX-M

7519205

$1.59

7

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

8

ASM-INTAKE,CLUTCH DUCT INCL [9-11]

1240782

$131.99

9

HOSE-CLUTCH,AIR IN

5414580

$87.99

10

CLAMP-HOSE,OETIKER,94.8-98

7081914

$10.39

11

DUCT-INTAKE,CLUTCH AIR

5450655

$99.99

12

CVR-PLAST,INTAKE HOSE,TOP,V BL

5451616-689

$51.99

12

CVR-PLAST,INTAKE HOSE,TOP,V BL

5451616-689

$51.99

13

COVER, PLASTIC, INTAKE HOSE, BOTTOM, BLACK

5451617-070

$39.99

13

COVER, PLASTIC, INTAKE HOSE, BOTTOM, BLACK

5451617-070

$39.99

14

BOOT, INTAKE, CLUTCH

5813639

$10.39

15

SEAL-COVER,PTO

5813708

$23.99

16

CLAMP, WORM DRIVE

7081626

$7.99

16

CLAMP, WORM DRIVE

7081626

$7.99

16

CLAMP, WORM DRIVE

7081626

$7.99

17

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

18

ASM., COVER, CLUTCH, OUTER [INCL 19,20]

2634179

$175.99

19

O RING-.364X.504X.07

5410542

Unavailable

20

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

21

HOSE, CLUTCH, AIR OUTLET, HC

5415126

$127.99

22

SCREW

7519330

$3.99

23

SCREW

7520164

$1.59

23

SCREW

7520164

$1.59

24

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

24

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

25

ASM-BOLT/WASHER,20 MM

7519278

$4.79

26

CLAMP, HOSE

7081996

$23.99

26

CLAMP, HOSE

7081996

$23.99

27

HOSE, INLET, HC

5415215

$51.99

27

HOSE, INLET, HC

5415215

$51.99

28

DUCT, CLUTCH, EXHAUST, HC

5451475

$67.99

29

DUCT, CLUTCH, INTAKE, HC

5451474

$67.99
