- RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB
BODY, REAR RACK AND FENDERS - Z17VFE99AM/AW/LW/AP/M99AB (49RGRRACKMTG1510004)

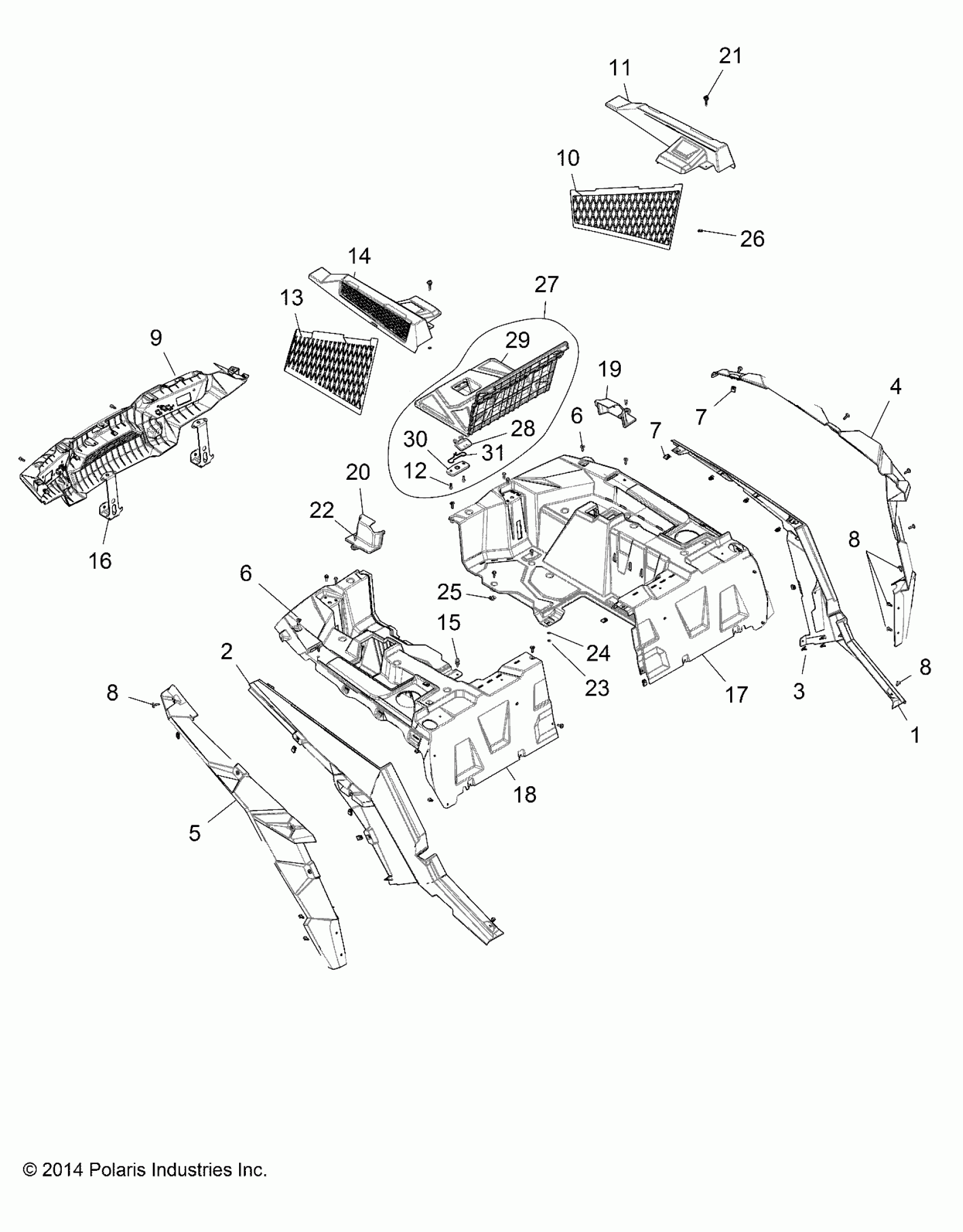

Polaris RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB BODY, REAR RACK AND FENDERS - Z17VFE99AM/AW/LW/AP/M99AB (49RGRRACKMTG1510004) Diagram
#
1
ASM-FNDR,PNT,RR,CLIP,LH,WHT.LT [INCL. QTY 6 OF 3][AW][LW]
2635123-599
$360.79
1
ASM-FNDR,PNT,RR,CLIP,LH,VL BLU [INCL. QTY 6 OF 3][AB]
2635123-689
Unavailable
1
ASM-FNDR,PNT,RR,CLIP,LH,TTNM [INCL. QTY 6 OF 3][AM]
2635123-653
Unavailable
2
ASM-FNDR,PNT,RR,CLIP,RH,WHT.LT [INCL. QTY 6 OF 3][AW][LW]
2635126-599
$360.79
2
ASM-FNDR,PNT,RR,CLIP,RH,VL BLU [INCL. QTY 6 OF 3][AB]
2635126-689
Unavailable
2
ASM-FNDR,PNT,RR,CLIP,RH,TTNM [INCL. QTY 6 OF 3][AM]
2635126-653
Unavailable
3
CLIP-DASH,TRIM,METAL
7519806
$3.99
4
FENDER, REAR FLAIR, LH, BLACK
5439762-070
$103.99
5
FENDER, REAR FLAIR, RH, BLACK
5439763-070
$103.99
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
Unavailable
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
Unavailable
7
NUT, U-TYPE
7547674
Unavailable
7
NUT, U-TYPE
7547674
Unavailable
8
Rivet
7661855
Unavailable
8
Rivet
7661855
Unavailable
8
Rivet
7661855
Unavailable
9
ASM., FASCIA, REAR, DECAL, BLACK [INCL. DECAL]
2635073-070
$203.99
10
SCREEN, INTAKE PRE FILTER, LH
-------
Unavailable
11
ASM., BEZEL, LH, FROG SKINZ [AM][AW][LW]
2635658
$103.99
11
BEZEL-AIR INTAKE,LH,HC,BLK [AB]
5451620-070
$91.99
12
SCREW
7519290
$3.99
13
SCREEN, INTAKE PRE FILTER, RH
-------
Unavailable
14
ASM., BEZEL, RH, FROG SKINZ [AM][AW][LW]
2635659
$103.99
14
BEZEL-AIR INTAKE,RH,HC,BLK [AB]
5451621-070
$91.99
15
PLUNGER, BOX LATCH
5139009
$13.59
16
BRACKET, REAR FASCIA, BLACK
5257790-329
Unavailable
17
BOX, REAR, LH, BLACK [AM][AW][LW]
5451778-070
Unavailable
17
BOX, REAR, LH, BLACK [AB]
5439784-070
Unavailable
18
BOX, REAR, RH, BLACK
5450238-070
Unavailable
19
COVER-PLASTIC,REAR ROP,LH,BLK [AB]
5451622-070
$11.19
19
COVER PLASTIC,REAR ROP,LH,BLK [AM][AW][LW]
5453087-070
$5.59
20
COVER PLASTIC,REAR ROP,RH,BLK
5451623-070
$11.19
21
KNOB
7081619
$14.39
22
SCREW
7512026
$1.49
23
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
24
Washer, Flat
7555859
$1.49
25
WASHER, NYLON
7555916
$1.59
26
RETAINER, BOLT
7670154
$1.49
27
ASM., PANEL, BOX, ACCESS [INCL. DECAL,12,28-31][IF BUILT BEFORE 8/1/16]
2636160
$91.99
27
ASM-PANEL-BOX,ACCESS [INCL. DECAL,12,28-31][IF BUILT AFTER 8/2/16]
2636391
Unavailable
28
HANDLE-SEAT BASE LATCH
5437121
$4.84
29
PANEL, BOX, ACCESS, BLACK
5450499-070
Unavailable
30
LATCH, COVER PLATE, BLACK
5450510-070
$4.79
31
SPRING, LATCH, SEAT
7081466
$39.99
