Partiron

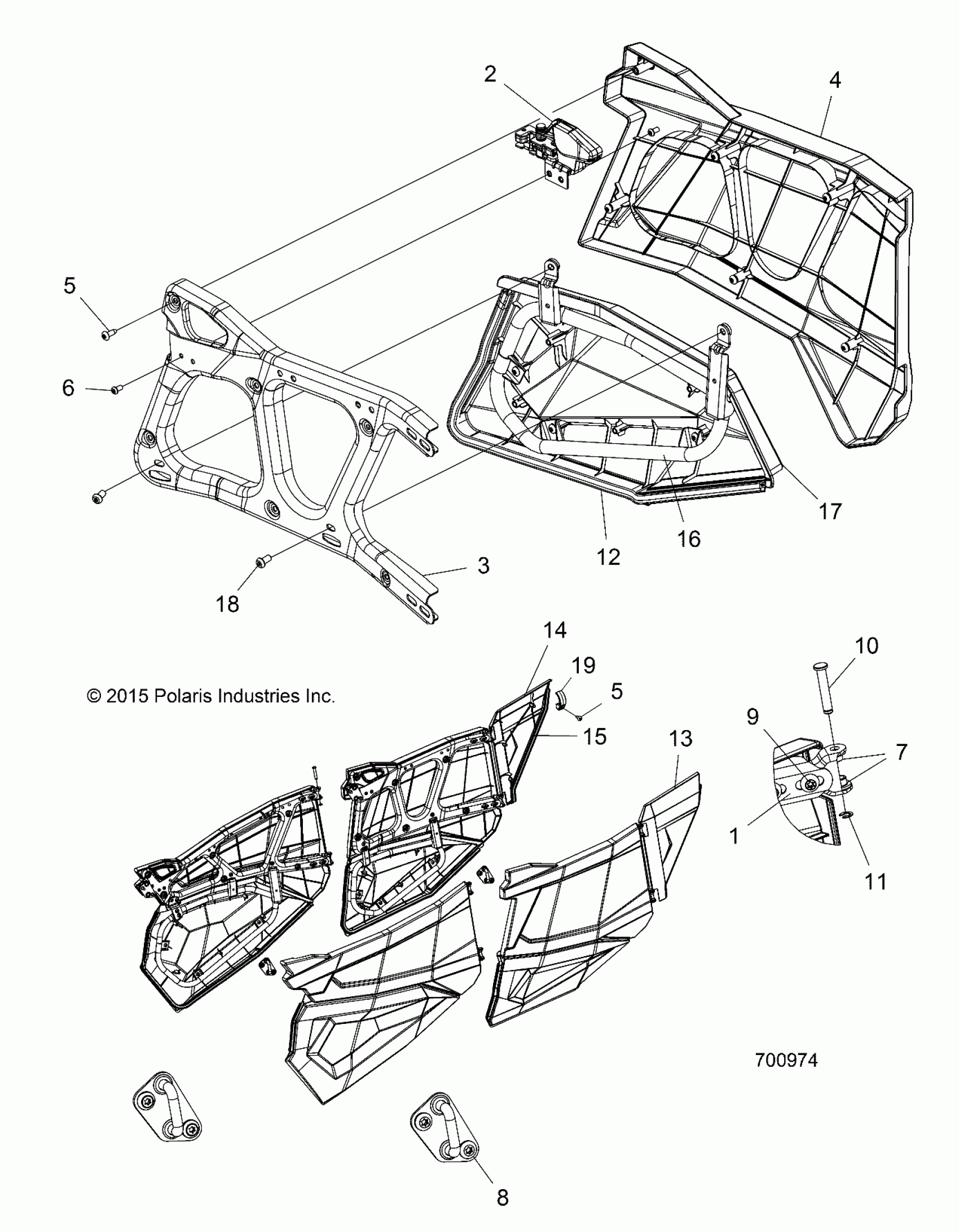

Polaris RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB BODY, DOORS, REAR - Z17VFE99AM/AW/LW/AP/M99AB (700974) Diagram

#

Description
Price

1

DOOR, HINGE

5258008

$28.32

2

ASM-LATCH,DOOR,LH

2636270

$90.24

2

ASM-LATCH,DOOR,RH

2636271

$90.24

3

FRAME, DOOR, REAR, LH, MATTE BLACK

5260413-458

$188.79

3

FRAME, DOOR, REAR, RH, MATTE BLACK

5260414-458

$203.32

4

SKIN, DOOR, REAR ,LH, MP

5450892

$80.74

4

SKIN, DOOR, REAR ,RH, MP

5450893

$80.74

5

SCREW

7519045

Unavailable

5

SCREW

7519045

Unavailable

6

SCREW

7519063

$3.99

7

BUSHING, DOOR PIVOT

5450592

$2.38

8

SCREW

7518936

$3.97

9

SCREW

7519997

$3.97

10

PIN, DOOR HINGE

7662138

$4.76

11

E-CLIP,M6, DIN 6799

7710466

$3.17

12

SEAL-WTHRSTRP,RR,LWR,DR,RZN [AB]

5522024-828

$52.60

13

ASM-BOLSTER,LH [AB][INCL 15]

2635693

$84.98

14

ASM-BOLSTER,RH [AB][INCL 15]

2635694

$84.98

15

SEAL-WTHRSTRP,BOLSTER,RZN [AB]

5522024-450

$44.51

16

WELD-MNT,LWR DR INJ,LH RR,RZN4 [AB]

1020186

$149.75

16

WELD-MNT,LWR DR INJ,RH RR,RZN4 [AB]

1020187

$149.75

17

PNL-LWR DR INJ,LH RR,RZN4 [AB]

5450973

$80.74

17

PNL-LWR DR INJ,RH RR,RZN4 [AB]

5450974

$84.99

18

SCR-HXBH-M8X1.25X16 10.9 ZPB [AB]

7517484

$4.76

19

BRKT-J MOUNT,INJ,RZN [AB]

5451472

$16.17
