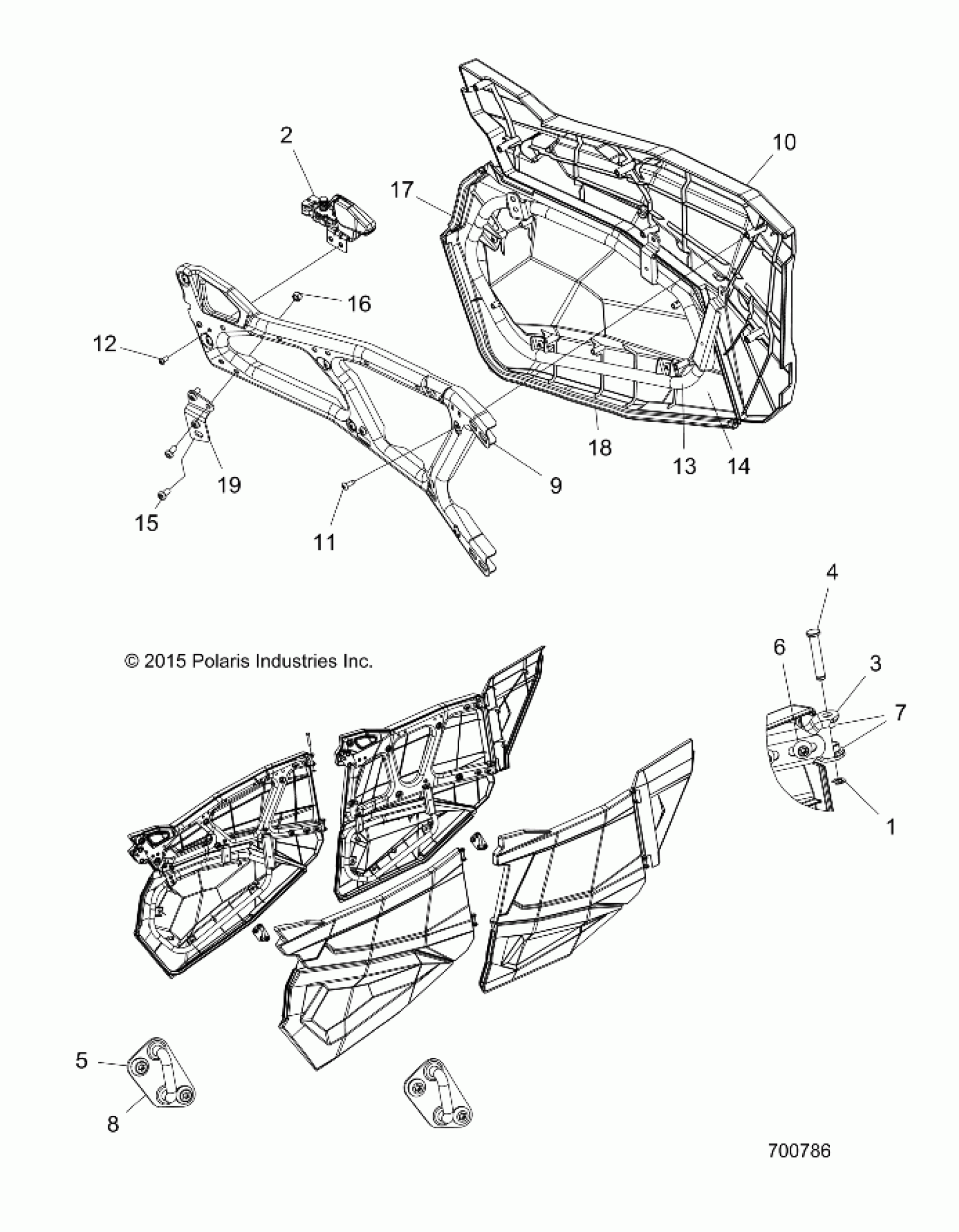

Polaris RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB BODY, DOORS, FRONT - Z17VFM99AB (700786) Diagram

#

Description
Price

1

E-CLIP,M6, DIN 6799

7710466

$3.19

2

ASM-LATCH,DOOR,LH

2636270

Unavailable

2

ASM-LATCH,DOOR,RH

2636271

Unavailable

3

BRACKET, DOOR HINGE

5258008

Unavailable

4

PIN, DOOR HINGE

7662138

$4.79

5

SCREW

7519112

$3.19

6

SCREW

7519997

$3.99

7

BUSHING, DOOR PIVOT

5450592

$2.39

8

STRIKER, LH

1021237

$39.99

8

STRIKER, RH

1021238

$39.99

9

FRAME, DOOR, LH, BLACK

5257929-458

$147.99

9

FRAME, DOOR, RH, BLACK

5257930-458

$147.99

10

DOOR SKIN, LH

5450636

$119.99

10

DOOR SKIN, RH

5450638

$119.99

11

SCREW

7519045

Unavailable

12

SCREW

7519063

$3.99

13

WELD-MOUNT,DOOR,LOWER,LH,RZN

1019994

$107.99

13

WELD-MOUNT,DOOR,LOWER,RH,RZN

1019999

$107.99

14

PANEL-DOOR,PLASTIC,LWR,LH,RZN

5450616

$107.99

14

PANEL-DOOR,PLASTIC,LWR,RH,RZN

5450617

$107.99

15

SCR-HXBH-M8X1.25X16 10.9 ZPB

7517484

Unavailable

16

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

17

SEAL-WTHRSTRP,LWR,DR,RZN

5522024-180

$23.99

18

SEAL-WTHRSTRP,LWR,DR,RZN

5522024-837

$43.99

19

MOUNT-LWR DOOR,LH,RZN

5258254

$27.99

19

MOUNT-LWR DOOR,RH,RZN

5258255

$27.99
