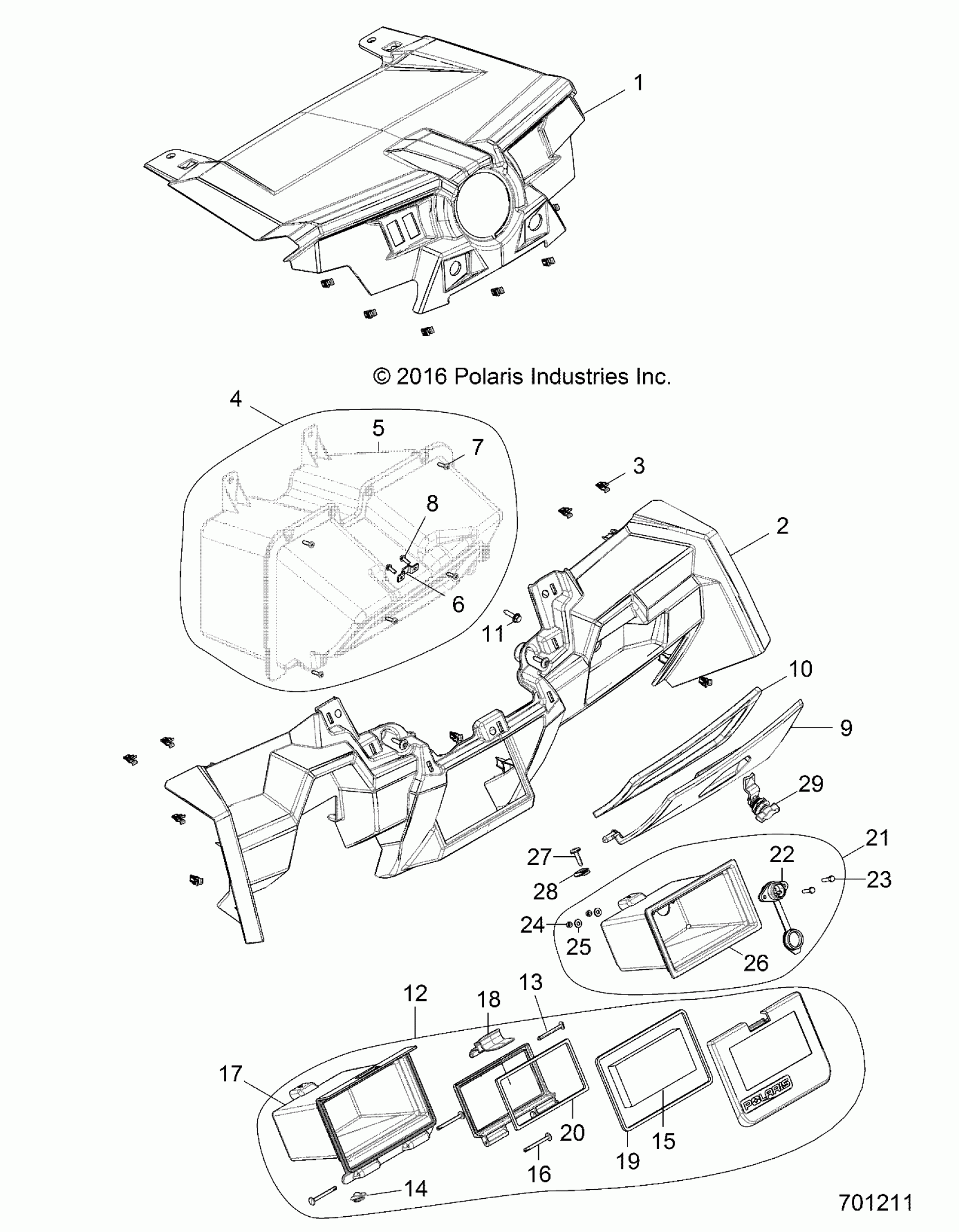

Polaris RZR XP 4 1000 (R15) - Z17VFE99AM/AW/LW/AP/M99AB BODY, DASH AND GLOVEBOX - Z17VFE99AM/AW/LW/AP/M99AB (701211) Diagram

ASM., UPPER IP, BLACK [INCL. QTY 7 OF REF. 3]

2634956-070

$127.99

ASM., LOWER, IP,WARNING DECAL, BLACK [INCL. WARNING DECALS] [INCL. QTY 10 OF REF. 3]

2636417-070

$483.59

CLIP-DASH,TRIM,METAL

7519806

Unavailable

ASM., GLOVE BOX [INCL. 5-8]

2635460

$83.99

GLOVEBOX, BLACK

5439796-070

Unavailable

BRACKET, GLOVEBOX LATCH

5259660

$5.59

SCREW

7512026

$1.49

SCREW

7518641

$3.19

DOOR, GLOVEBOX, TPO, BLACK

5451897-070

$51.99

SEAL, GLOVEBOX

5415208

$11.99

SCREW

7519342

$1.86

ASM., DOUBLE DIN [INCL. 13-20][AW][LW][AM]

2635161

$135.99

PIN, HINGE [USED W/2635161]

5451236

$7.91

PLUG-COMPARTMENT [USED W/2635161]

5412981

Unavailable

FOAM, DOUBLE DIN [USED W/2635161]

5814055

$48.39

PIN-HINGE,GLOVEBOX [USED W/2635161]

5439091

$3.99

PANEL, DOUBLE DIN, BLACK [USED W/2635161]

5439789-070

$27.99

LATCH, LID, DIN [USED W/2635161]

5450654

$7.99

SEAL, DIN, OUTER [USED W/2635161]

5522021

$23.99

SEAL, DIN, INNER [USED W/2635161]

5522022

$23.99

ASM., DIN, BOX, HC [INCL. 22-26][AB]

2635640

$59.99

SOCKET, WINCH REMOTE, HC [USED W/2635640]

4015090

$31.99

SCREW [USED W/2635640]

7516607

$10.39

NUT-M5X.8,HX NYL-Y [USED W/2635640]

7546601

$1.49

WASHER [USED W/2635640]

7555799

Unavailable

PANEL, DOUBLE DIN, WINCH MOUNT [USED W/2635640]

5451824-070

$39.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

NUT, U-TYPE

7547674

$1.49

LATCH-1/4 TURN,CAM

7081425

$7.60
