SUSPENSION, REAR SHOCK INTERNALS - Z18VFE99AK/AJ/AW/BK/BJ/BW/LW/K99AK/BK/M99AL (702415)

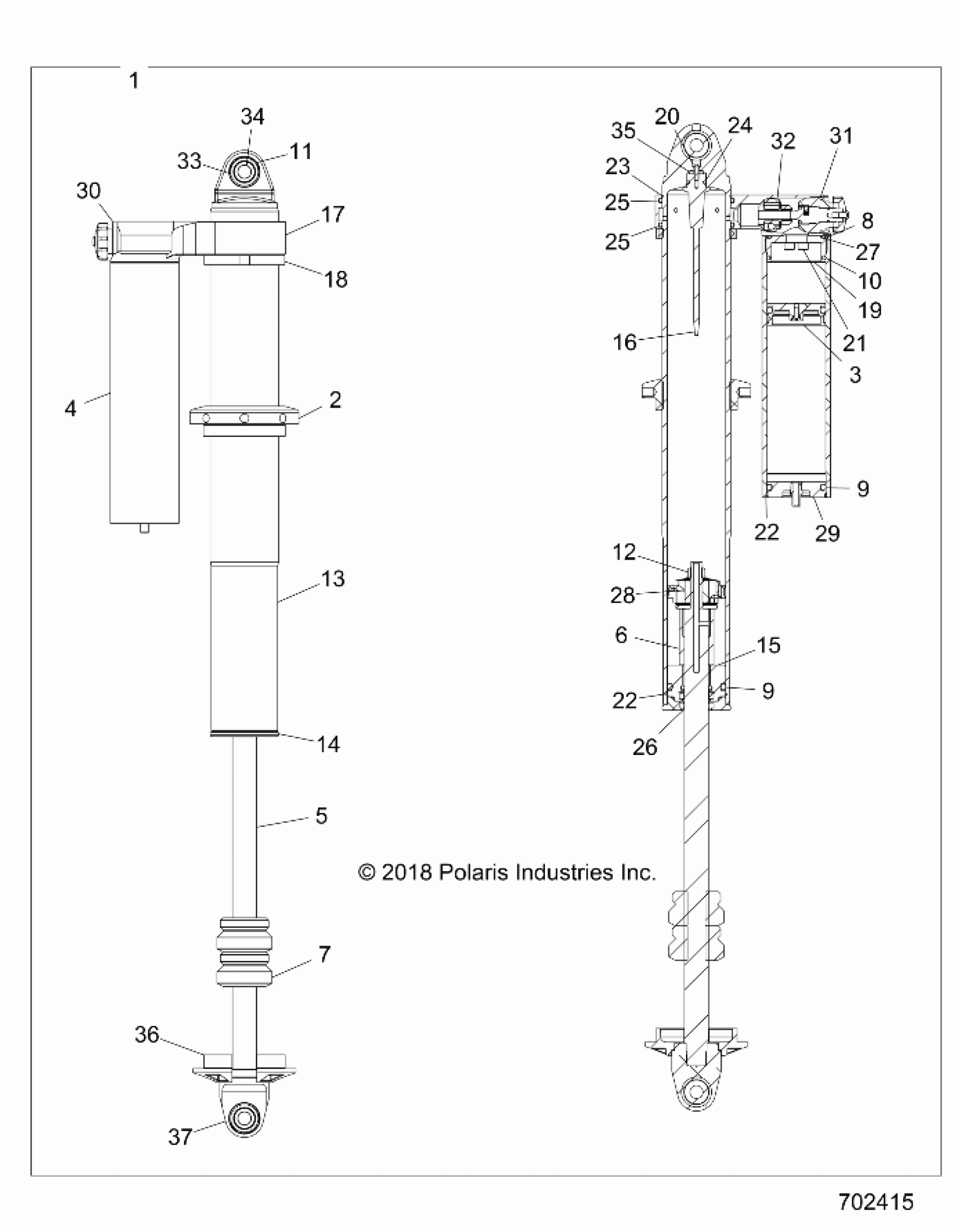

Polaris RZR XP 4 1000 (R09) - Z18VFE99AK/AJ/AW/BK/BJ/BW/LW/K99AK/BK/M99AL SUSPENSION, REAR SHOCK INTERNALS - Z18VFE99AK/AJ/AW/BK/BJ/BW/LW/K99AK/BK/M99AL (702415) Diagram
#
Description
Price
1
SHOCK-REAR,2.5,MP [INCL. ALL]
7044893
$785.83
2
2.5IN SPRING NUT (CLEAR)
1800836
$96.79
3
RES, PISTON 2.5IN ASM
1800752
$164.59
4
2.5in 9.5L PB RES CAN WR (ANODIZE HARD CLEAR)
1800854
$283.99
5
SS 7/8IN CHROME NEEDLE SHAFT 18.295L
1800632
$387.19
6
SPACER 2.037L
1800657
$27.99
7
1.25 BUMP STOP LG
1800201
Unavailable
8
O-RING 2-033
1800613
$10.39
9
O-RING 2-327
1800508
$5.59
9
O-RING 2-327
1800508
$5.59
10
O-RING 2-225
1800500
$1.99
11
RING- RETAIN (SNAP)
1800482
$10.39
12
7/16 Ny Lock nut
1800638
$4.79
13
BODY, MONOTUBE 2.5 Rear w Needle 21.070L
1800838
$288.41
14
CAP, WIPER,2.5 PRESS FIT 7/8 (CLEAR)
1800855
$47.99
15
ASM. SEAL HEAD 2.5 X .875 PI
1800856
$107.99
16
NEEDLE, 1PC PRESS IN
1800840
$51.99
17
BRIDGE, 2.5 WER ADJUSTER (CLEAR)
1800841
$268.39
18
2.5IN CROSSOVER RING/ JAM NUT
1800842
$39.59
19
2.5 RES MOUNT
1800488
$83.99
20
#8-32 X .500 LOW HEAD SCREW
1800843
$4.79
21
SCREW, SHCS 1/4-20 X .5"
1800754
$3.19
22
Retaining Ring 2.5
1800847
$23.99
22
Retaining Ring 2.5
1800847
$23.99
23
Retaining Ring 2.5in
1800846
$7.19
24
O-RING 2-112
1800095
$1.49
25
O-RING 2-230
1800497
$5.59
25
O-RING 2-230
1800497
$5.59
26
WIPER 2.5 SH .875 SHAFT
1800641
$31.99
27
O-RING, 2-134
1800502
$1.99
28
Piston Assembly (.100 Bleed)
1800486
Unavailable
29
ASM. END CAP, 2.5 SCHRAEDER
1800844
$119.99
30
ASM. SS RETENTION NUT (GOLD)
1800857
$111.99
31
O-RING 2-122
1800503
$1.59
32
VALVE, CHECK ASSEMBLY
1800848
$61.59
33
O-RING 2-312
1800810
$3.63
34
BEARING HCOM9T-12MM
1800880
$47.99
35
O-RING -202
-------
Unavailable
36
Spring Retainer
1501211
$43.99
37
9/16 HEIM SHAFTLOOP (Clear)
1800555
$223.99
